Robin 850 Workshop Manual Supplement
The engine
To replace
1 To replace camshaft bearings position the
general
tool and components as shown in
Figurea 21, 22 and 23.

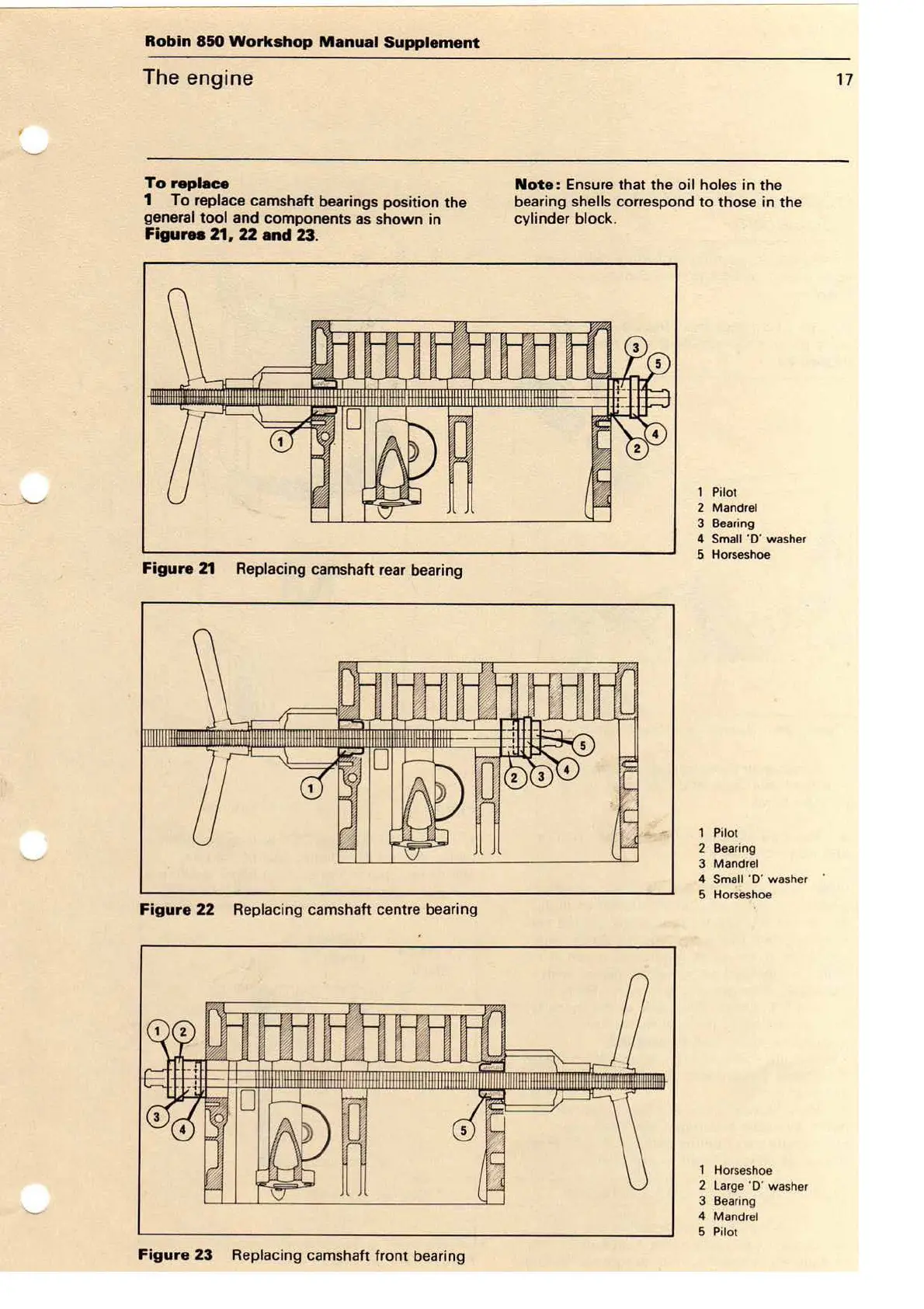

Figure 21 Replacing camshaft rear bearing
Figure 22 Replacing camshaft centre bearing
Figure 23 Replacing ca mshaft front bearing
Note: En sure that the oil holes in the
bearing
shells correspond to those in the
cylinder block.
1 Pilot
2 Mand rel
3 B ear ing
4
Small ·o· washer
5. H orses hoe
1
Pilot
2 B ear ing
3
Mandrel
4 Small ·o· wa sher
5 Horseshoe
1 H
ors eshoe
2 L
ar ge ·o· wa she r
3
Bea ri ng
4
Mandr el
5 Pi lot
