RL78/G13 CHAPTER 4 PORT FUNCTIONS

R01UH0146EJ0100 Rev.1.00 235

Sep 22, 2011

For example, figures 4-51 to 4-54 show block diagrams of port 12 for 128-pin products when PIOR = 00H.

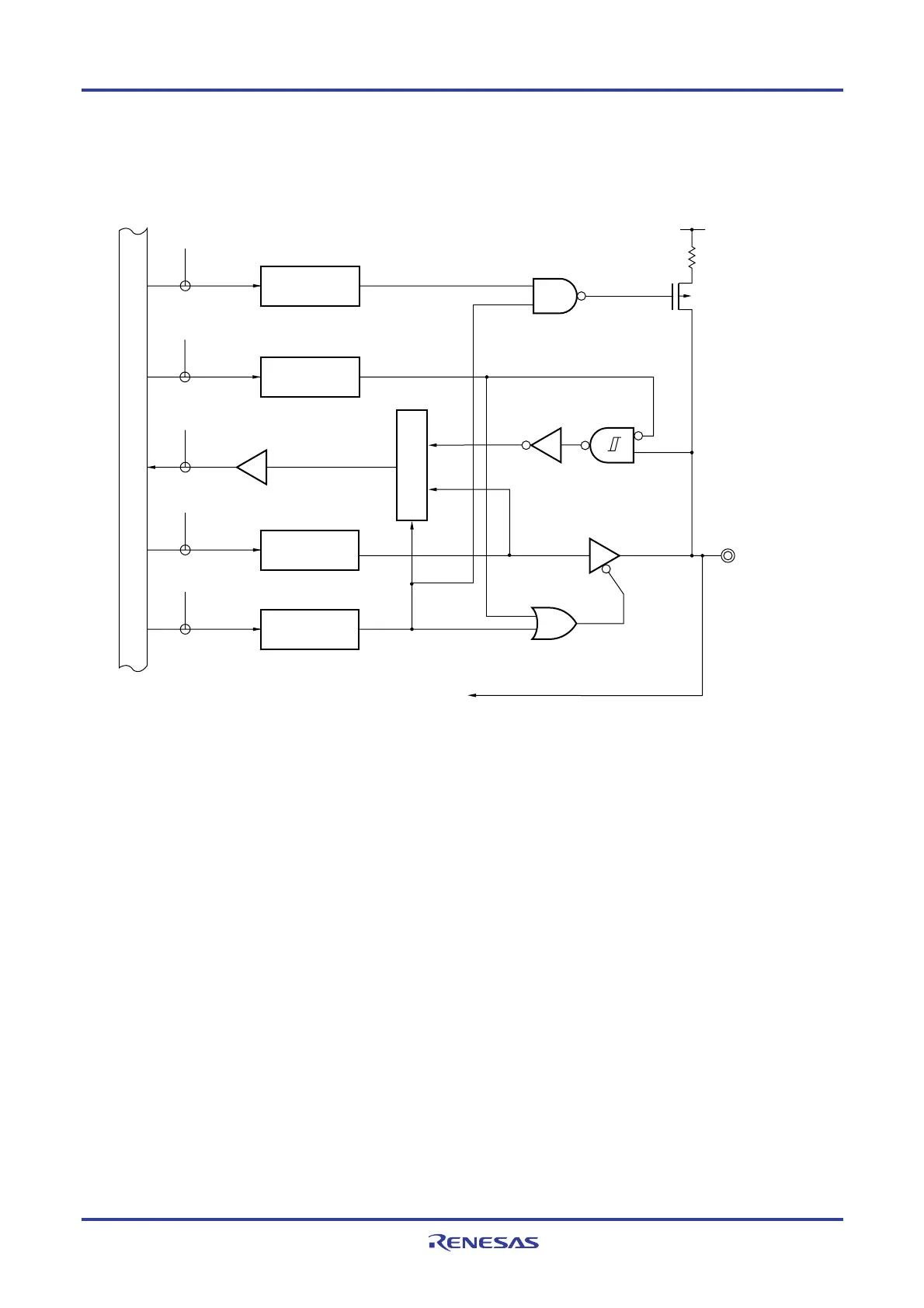

Figure 4-51. Block Diagram of P120

P120/ANI19

PORT

WRPM

PU120

PM120

EVDD

P-ch

PU12

PM12

P12

A/D converter

WRPMC

PMC12

PMC120

Output latch

(P120)

Selector

Internal bus

P12: Port register 12

PU12: Pull-up resistor option register 12

PM12: Port mode register 12

PMC12: Port mode control register 12

RD: Read signal

WR××: Write signal
