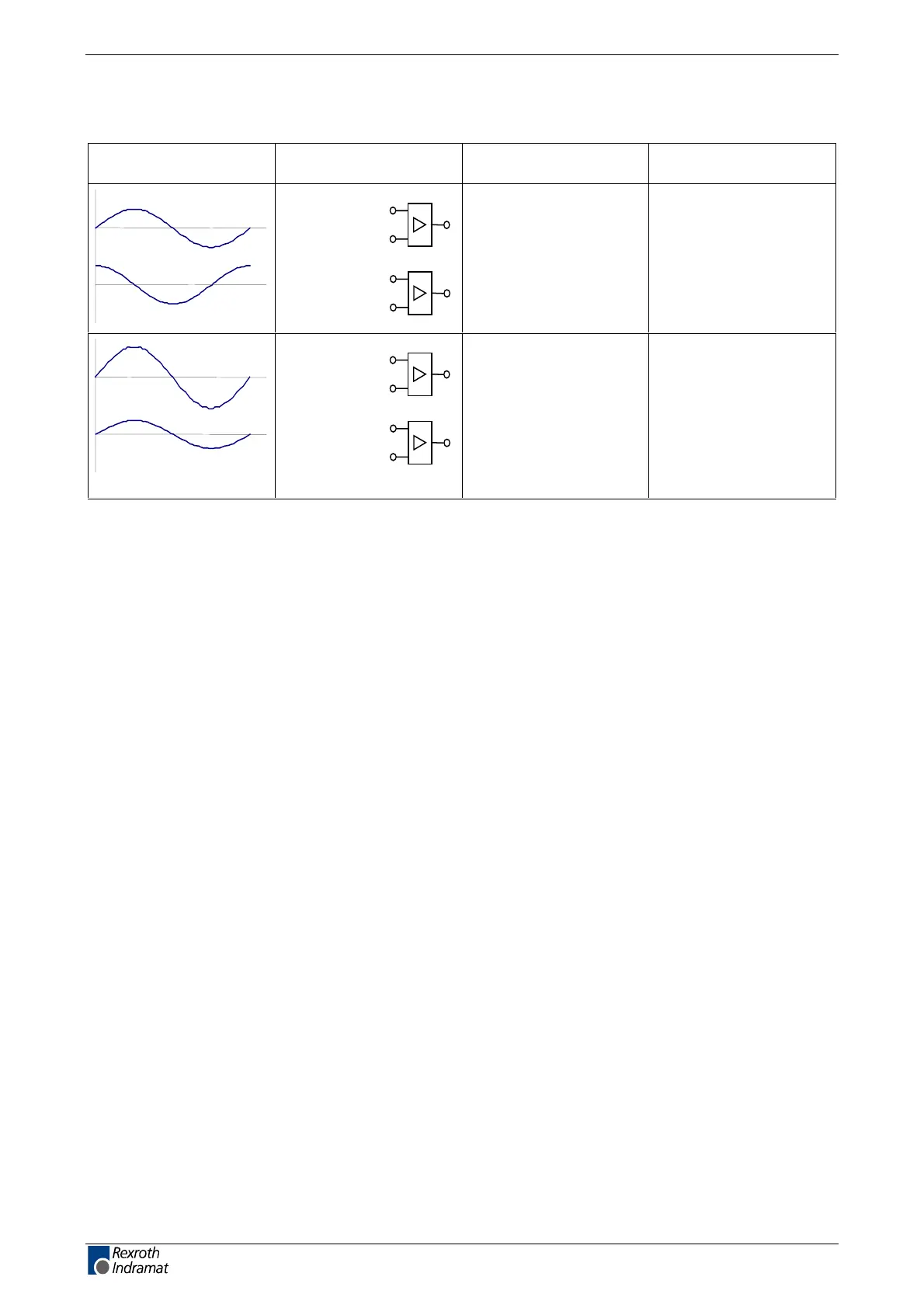

Signal allocation to the actual position value
Signal allocation (X4) signal designation signal form actual position value
(with default setting)
G1Si n+( S3)
G1Sin- (S1)
G1Cos+(S4)
G1Cos- (S2)
DSF
(sine 1Vss without 120 Ohm
matching resistor, I²C-Bus)
increasing
amplitude-modulated signal
G1Si n+( S3)
G1Sin- (S1)
G1Cos+(S4)
G1Cos- (S2)
Resolver increasing
Fig. 4-66: Signal allocation to the actual position value
Connecting the measuring system
See page 1-6: "An overview of measuring systems supported".
