4-42 DURADRIVE HDC01.1 Drive Controller DURADRIVE Drive Controllers
DOK-DURADR-HDC01.1****-PR02-EN-P

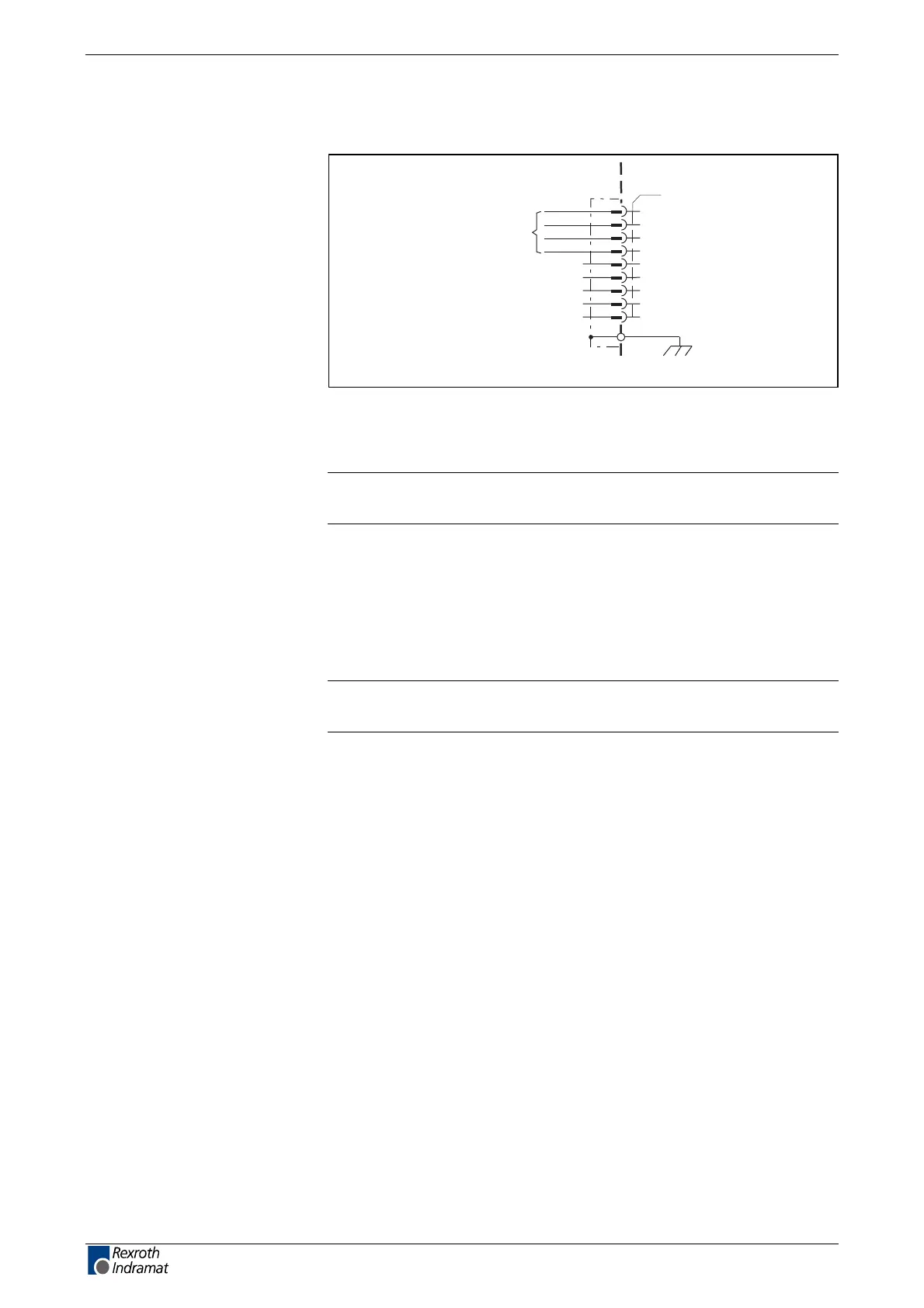

Motor connections
device-external device-internal
AP5360F1.FH7
X5
A1
A2
A3
motor connection
A
B
C
D
E
F
G
H
I
PE
Fig. 4-71: Motor connections
Use Rexroth Indramat motor power cables to connect motor and
controller.
Note: For technical data on connections and cross sections, see the
motor project planning manual.
Cable length:
Maximum length equals 25 m:
• standard cables from Rexroth Indramat and
• ambient temperatures of ≤ 45° C per EN 60 204
Note: If third party cables are used, then the guarantee is forfeited
for the entire system. Use Rexroth Indramat cables!
Connection Motor
Cable Motor
