Ricoh Aficio MP C5502 User Manual

Entering the Path to the Destination Manually

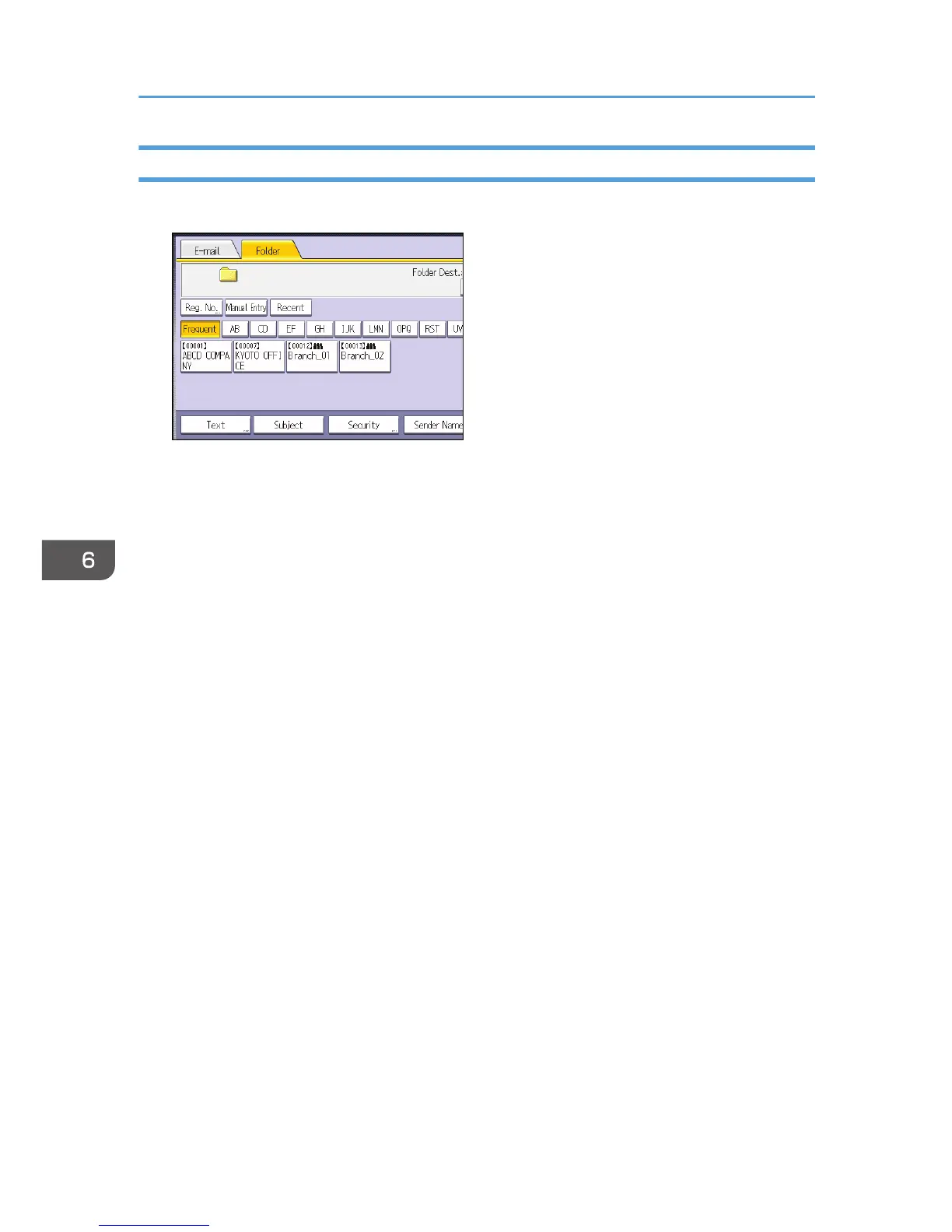

1. Press [Manual Entry].
2. Press [SMB].
3. Press [Manual Entry] on the right side of the path field.
4. Enter the path for the folder.
In the following example path, the shared folder name is "user" and the computer name is
"desk01":
\\desk01\user
5. Press [OK].
6. Depending on the destination setting, enter the user name for logging in to the computer.
Press [Manual Entry] to the right of the user name field to display the soft keyboard.
7. Depending on the destination setting, enter the password for logging in to the computer.
Press [Manual Entry] for the password to display the soft keyboard.
8. Press [Connection Test].
A connection test is performed to check whether the specified shared folder exists.
9. Check the connection test result, and then press [Exit].
10. Press [OK].
6. Scan
118

Ricoh Aficio MP C5502 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Max Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Multiple Copy	Up to 999 copies
Max Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Hard Disk Drive	250 GB
Power Consumption (Maximum)	1.7 kW
Type	All in One Printer
Print Speed	55 pages per minute
Copy Speed	55 copies per minute
Zoom	25% to 400%
Scan Resolution	600 dpi
Fax Resolution	200 x 200 dpi
Original Capacity	100 sheets
Standard Paper Capacity	1, 200 sheets
Memory	1.5 GB RAM
Interface	USB 2.0, Ethernet
Network Protocols	TCP/IP
Operating Systems Supported	Windows, Mac, Linux
Power Source	AC 120V, 60Hz
Paper Weight	52 – 256 g/m²
