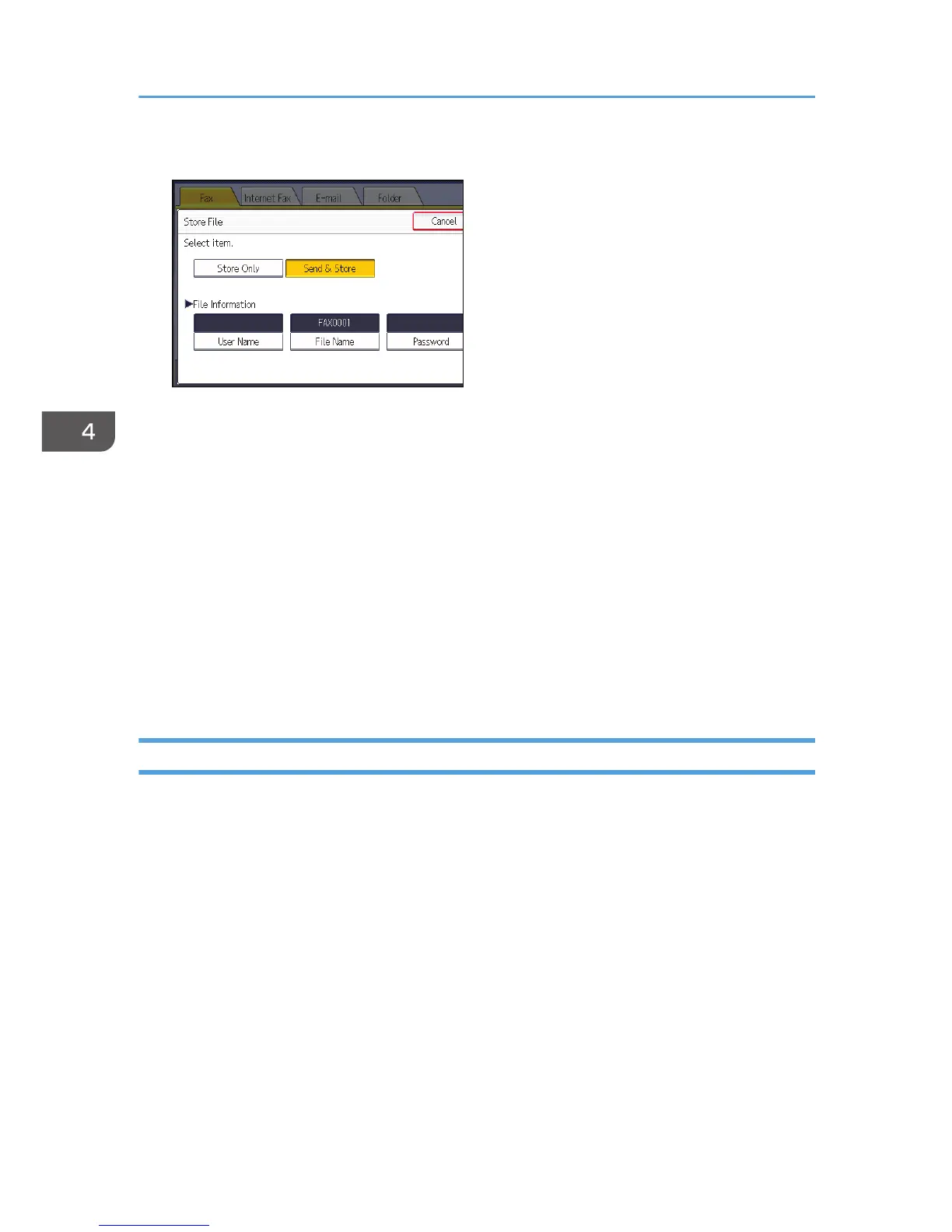

4. Set the user name, file name, and password as necessary.
• User Name
Press [User Name], and then select a user name. To specify an unregistered user name, press
[Manual Entry], and then enter the name. After specifying a user name, press [OK].
• File Name
Press [File Name], enter a file name, and then press [OK].
•
Password
Press [Password], enter a password using the number keys, and then press [OK]. Re-enter the
password for confirmation, and then press [OK].
5. Press [OK].
6. If you have selected [Send & Store], specify the receiver.
7. Press the [Start] key.
Sending Stored Documents
The machine sends documents stored with the facsimile function in the Document Server.
The documents stored in the Document Server can be sent again and again until they are deleted.
The stored documents are sent with the scan settings made when they were stored.
You cannot use the following transmission methods:
• Immediate Transmission
•
Parallel Memory Transmission
• On Hook Dial
• Manual Dial
4. Fax
98

Ricoh Aficio MP C5502 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Max Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Multiple Copy	Up to 999 copies
Max Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Hard Disk Drive	250 GB
Power Consumption (Maximum)	1.7 kW
Type	All in One Printer
Print Speed	55 pages per minute
Copy Speed	55 copies per minute
Zoom	25% to 400%
Scan Resolution	600 dpi
Fax Resolution	200 x 200 dpi
Original Capacity	100 sheets
Standard Paper Capacity	1, 200 sheets
Memory	1.5 GB RAM
Interface	USB 2.0, Ethernet
Network Protocols	TCP/IP
Operating Systems Supported	Windows, Mac, Linux
Power Source	AC 120V, 60Hz
Paper Weight	52 – 256 g/m²
