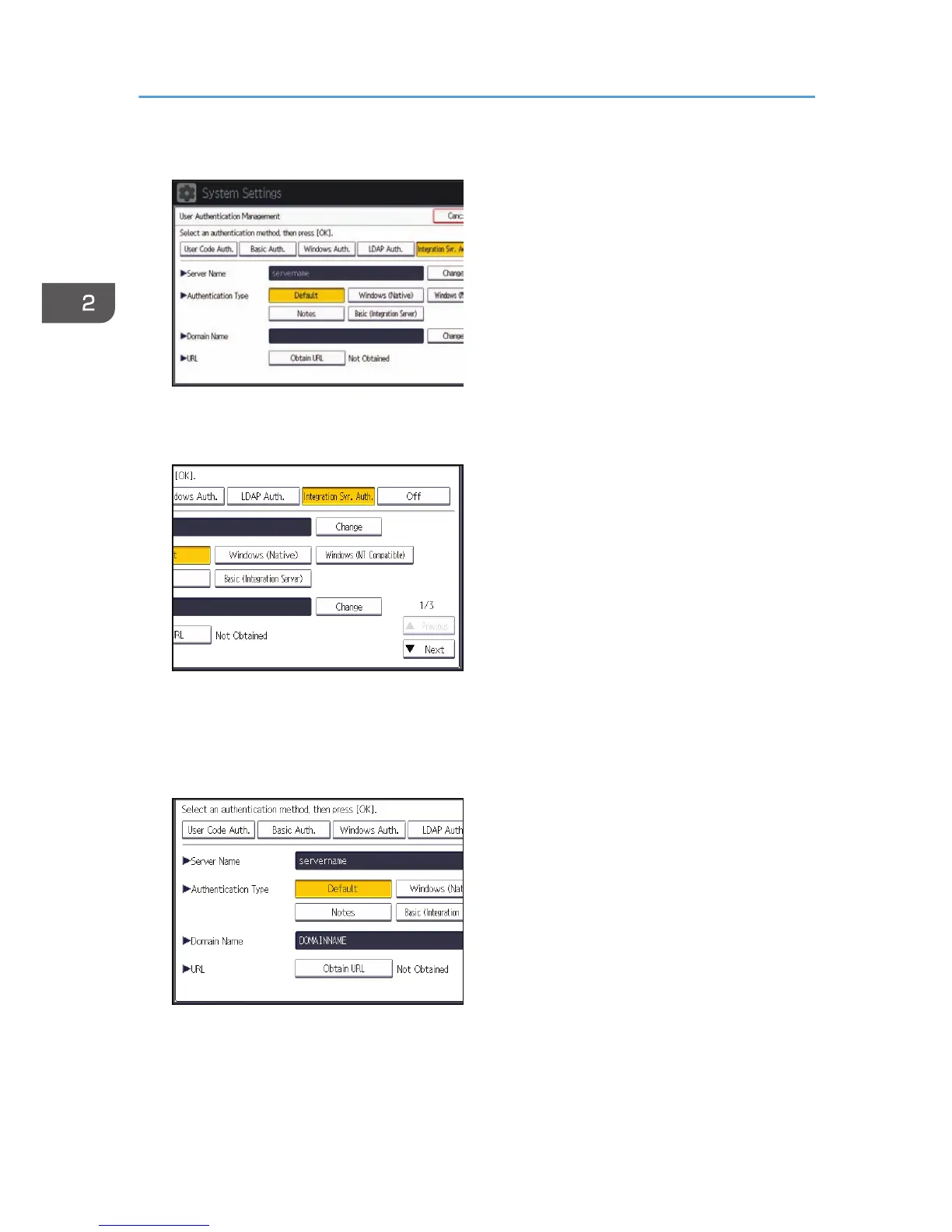

9. In "Authentication Type", select the authentication system for external authentication.
Select an available authentication system. For general usage, select [Default].
10. Press [Change] for "Domain Name".
11. Enter the domain name, and then press [OK].
You cannot specify a domain name under an authentication system that does not support domain
login.
12. Press [Obtain URL].
The machine obtains the URL of the server specified in "Server Name".
If "Server Name" or the setting for enabling SSL is changed after obtaining the URL, the URL is "Not
Obtained".
2. Configuring User Authentication
60

Ricoh Aficio MP C5502 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Max Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Multiple Copy	Up to 999 copies
Max Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Hard Disk Drive	250 GB
Power Consumption (Maximum)	1.7 kW
Type	All in One Printer
Print Speed	55 pages per minute
Copy Speed	55 copies per minute
Zoom	25% to 400%
Scan Resolution	600 dpi
Fax Resolution	200 x 200 dpi
Original Capacity	100 sheets
Standard Paper Capacity	1, 200 sheets
Memory	1.5 GB RAM
Interface	USB 2.0, Ethernet
Network Protocols	TCP/IP
Operating Systems Supported	Windows, Mac, Linux
Power Source	AC 120V, 60Hz
Paper Weight	52 – 256 g/m²
