2.Replacement and Adjustment
102

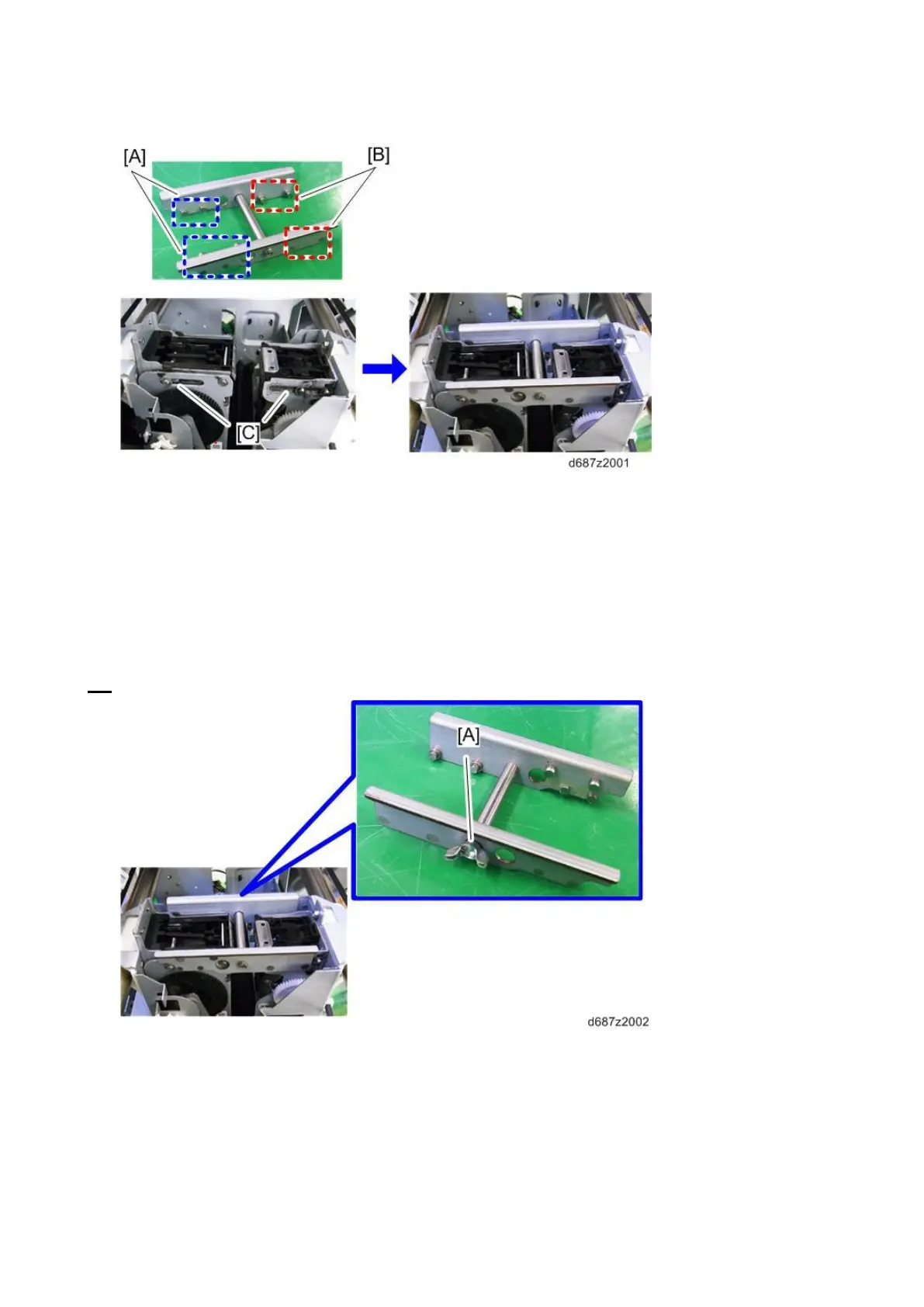

[B]: Two pins for clincher
*Use the following part numbers to get the special tool
• HOLDER FLONT(B7936410)
• HOLDER: REAR (B7936420)
• ROD: CLAMP (B7936431)
• ADJUSTING SCREW: M4 (B7936432)
-or-
• B7936400 STAPLER:SERVICE PARTS ASSY
15. Tighten the wing screw [A] on the special tool to secure the stapler and special tool.
