1.Detailed Descriptions
36
There is a gap at the paper guide when the stapleless stapler unit is at the home position when stapling
with the conventional stapler.

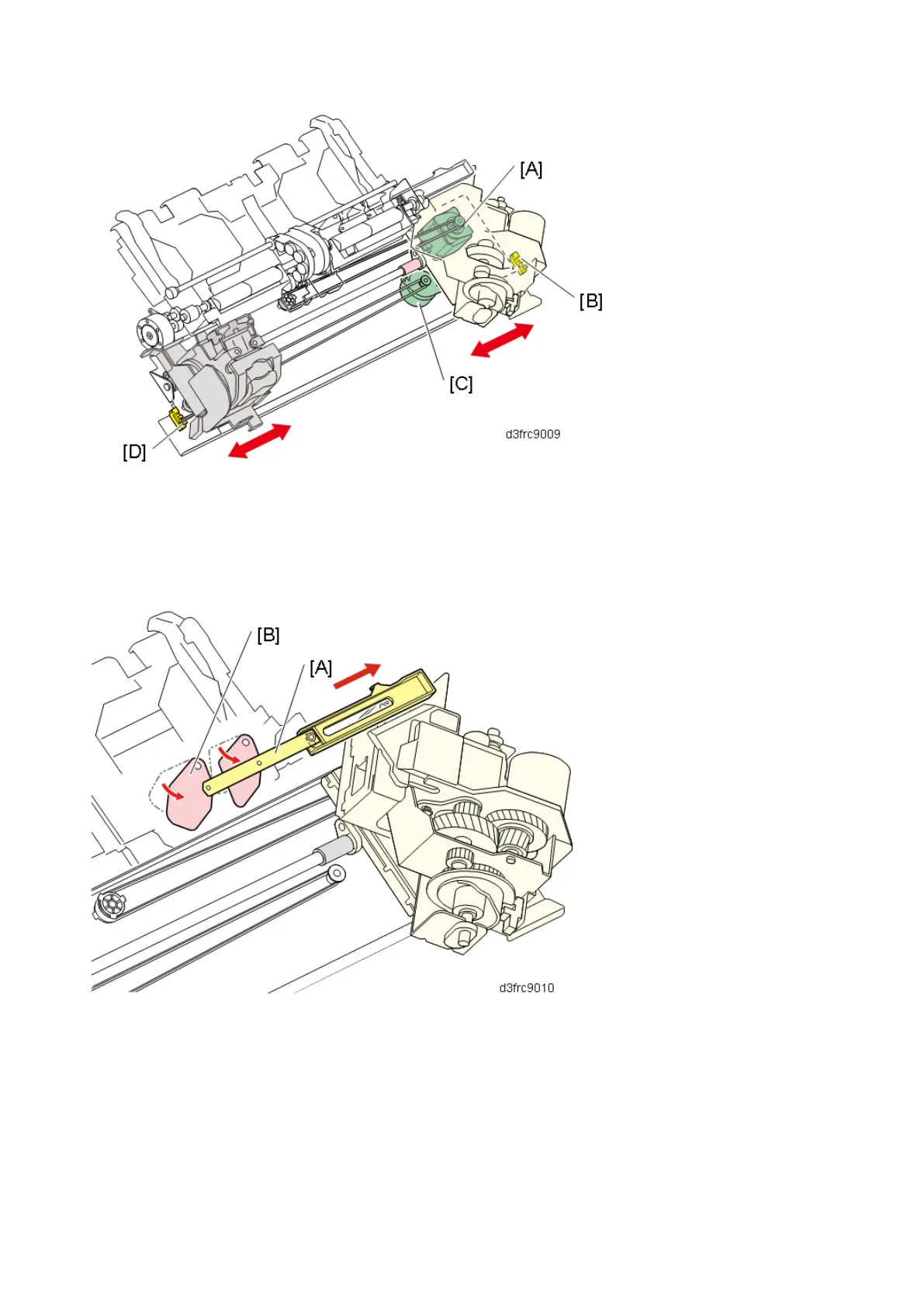

Because of this, paper will be guided with the paper guide [B] which works together with the lever [A]
when the stapleless stapler unit moves to its home position.
Stapleless Stapler mechanism
The staple operation in this option applies a crimping method. V-shaped teeth press the sheets,
applying a pressure of 220 kg.
This option performs two stapling operations for a single stapling operation as follows.
[Moving to the first stapling position =>Stapling => Moving to the second stapling position => Stapling
=> Moving back to the home position]
