Stapleless stapler unit movement mechanism

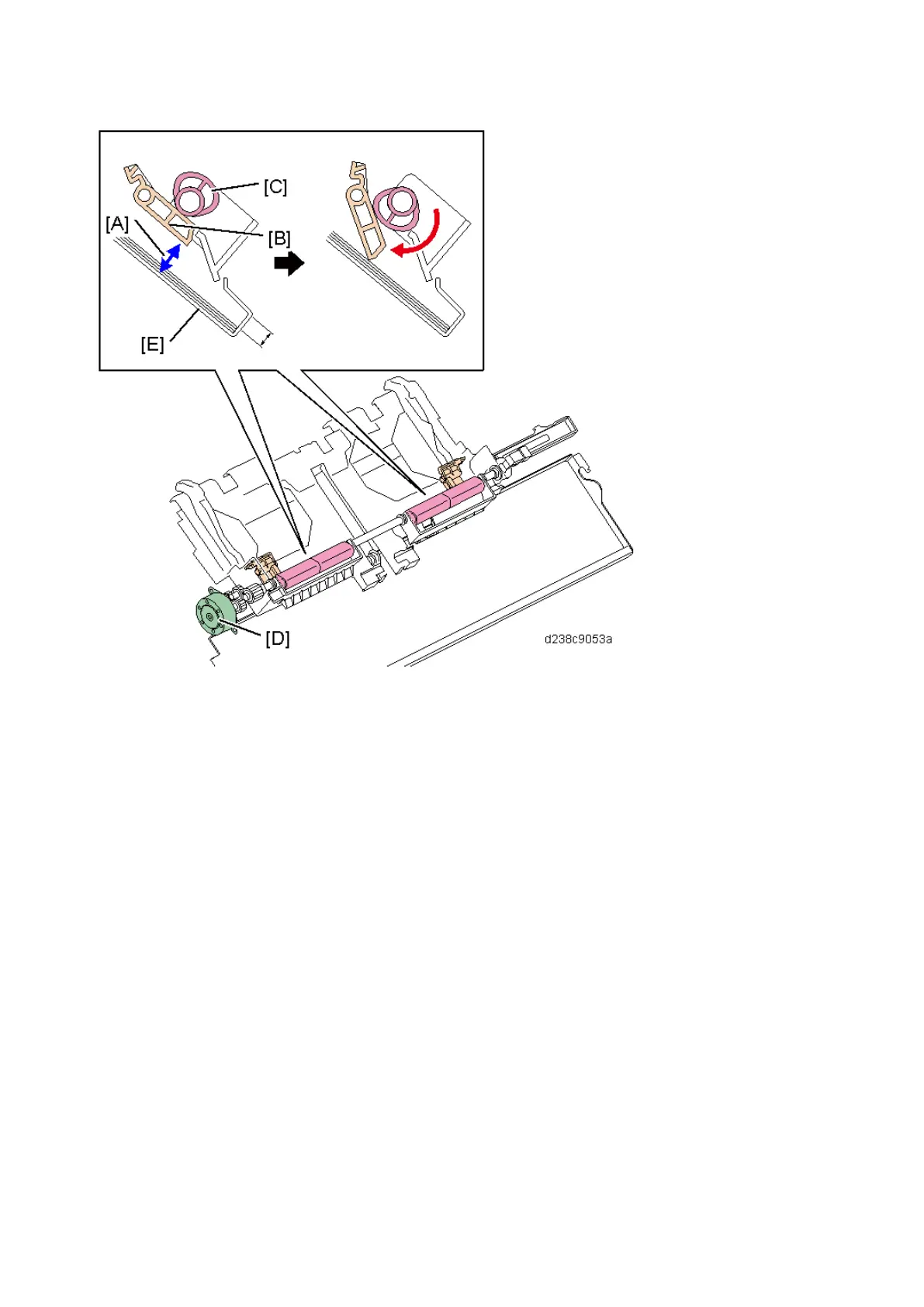

The Stapleless Stapler Transfer Motor (STM17) [A] moves the stapleless stapler unit to the stapling
position from its home position when stapling with the stapleless stapler.
The home position is detected by the Stapleless Stapler HP Sensor (S39) [B].
The Stapler Transfer Motor (STM6) [C] and the Stapler HP sensor (S36) [D] are attached to the base
plate.
