2.Replacement and Adjustment
54

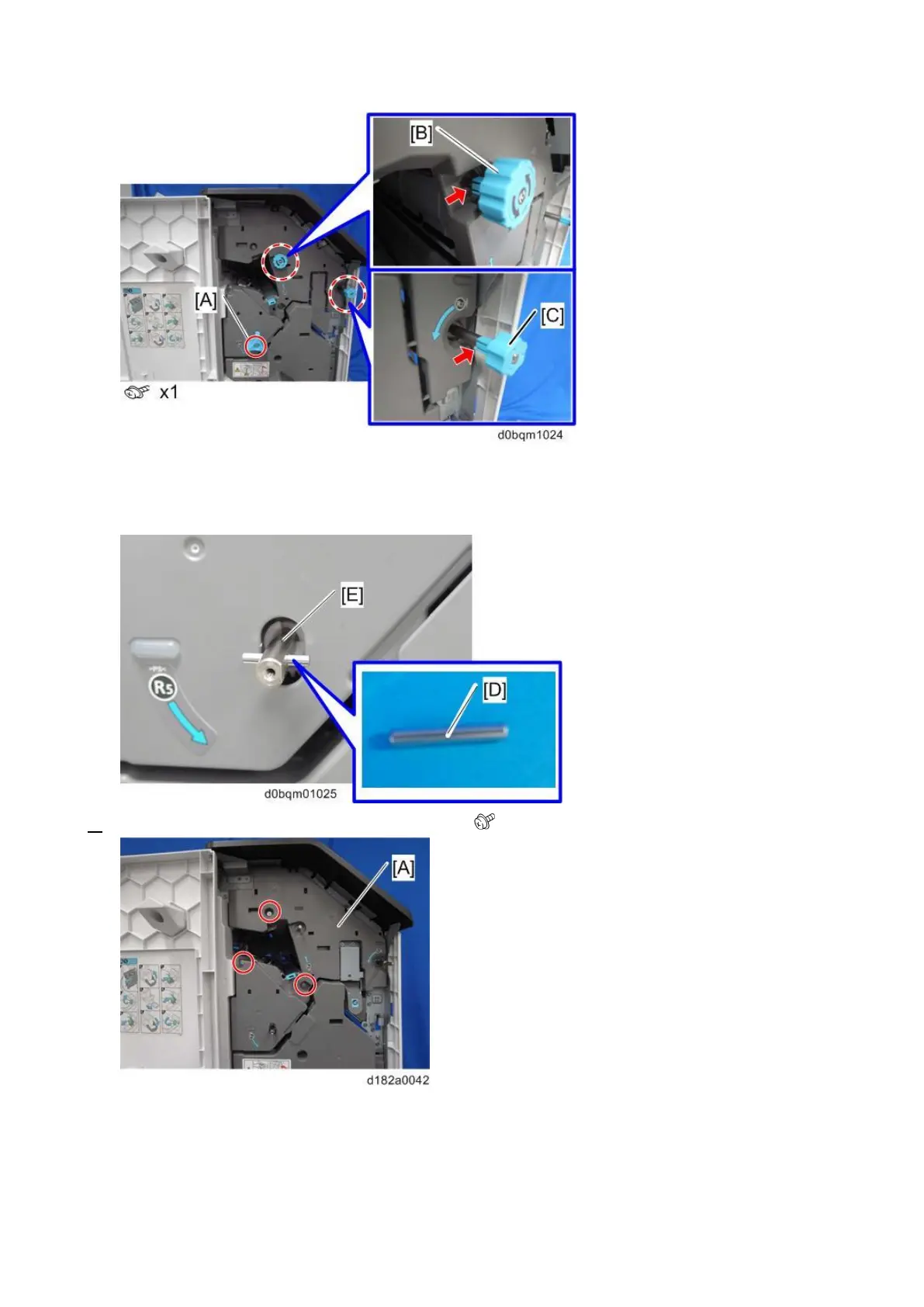

The fixing metal bar [D] left in the shaft [E] after removing the knob can easily drop out and become
lost.
Remove it together with the knob and keep it in a safe place until the knob needs to be reattached.
3. Remove the three screws on the inner cover [A] ( ×3).
