2.Replace
ment and
Adjustment
55

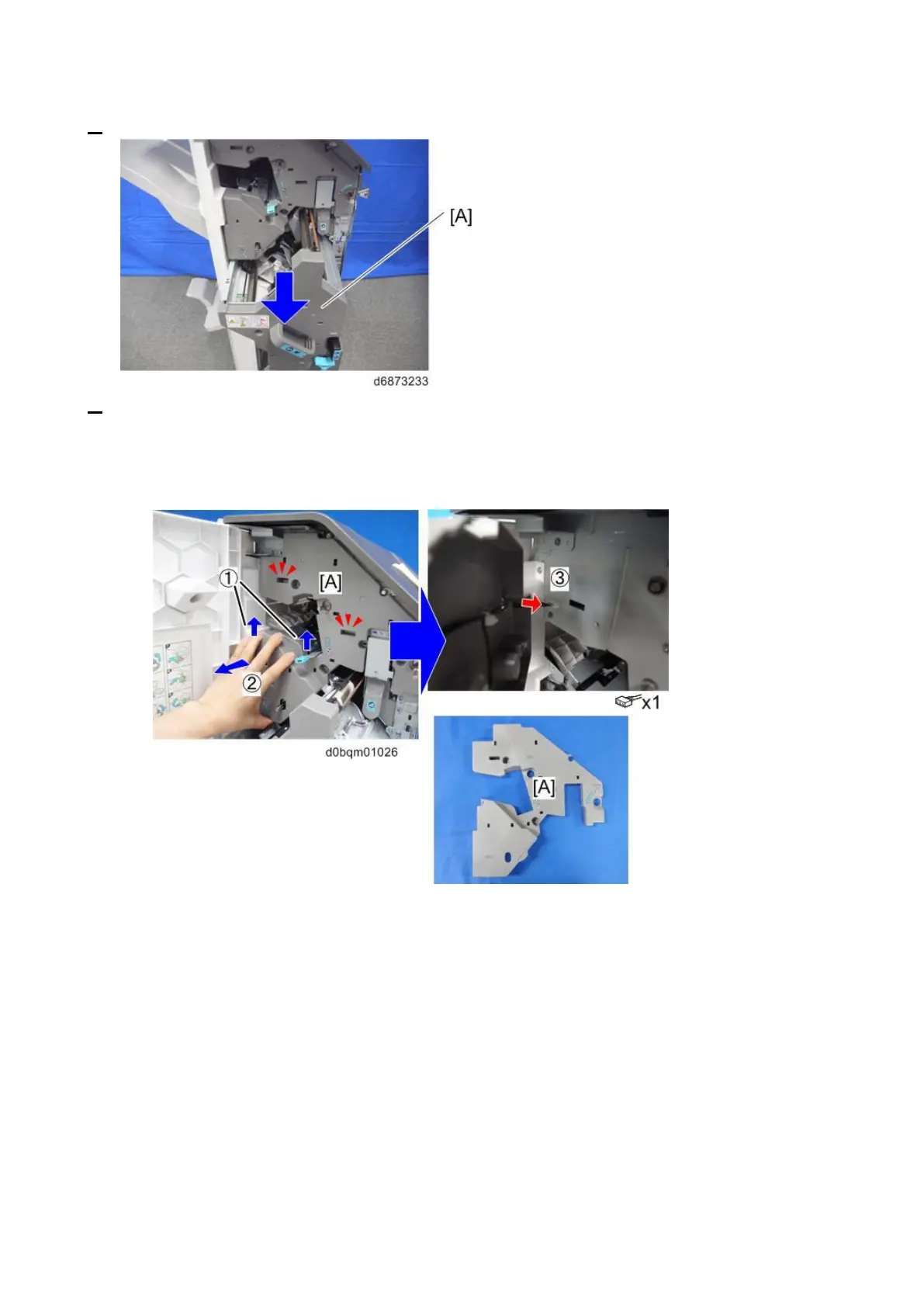

4.
Pull the sa
ddle stitich un
it [A].
5.
Remove
the inner cov
er [A].
1.
Slightly
raise the cover
to release t
he 2 hoo
ks.
2.
Pull out the
inner cov
er
.
3.
Disconnect t
he connect
or on the bac
k.
60
62
