2.Replacement and Adjustment
80

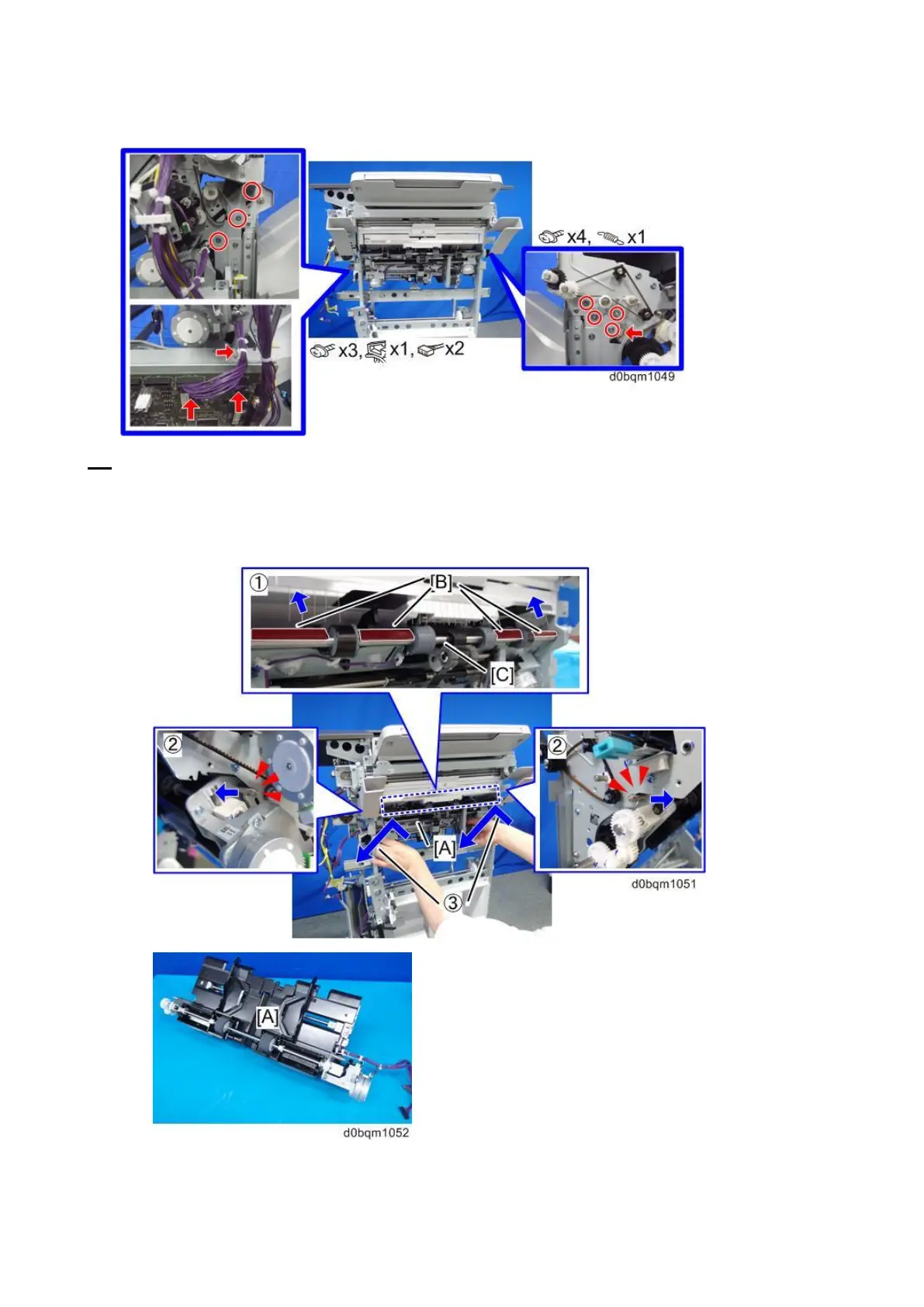

10. Remove the stapler tray [A] as follows:
1. Raising the roller shaft, remove the cover [B] from it.
2. Remove the shaft ends from the cutouts in the metal plates.
3. Remove the stapler tray by pressing it down obliquely.
