Rigol DS1104Z Programming Guide

Chapter 1 Programming Overview RIGOL
DS1000Z Programming Guide 1-3

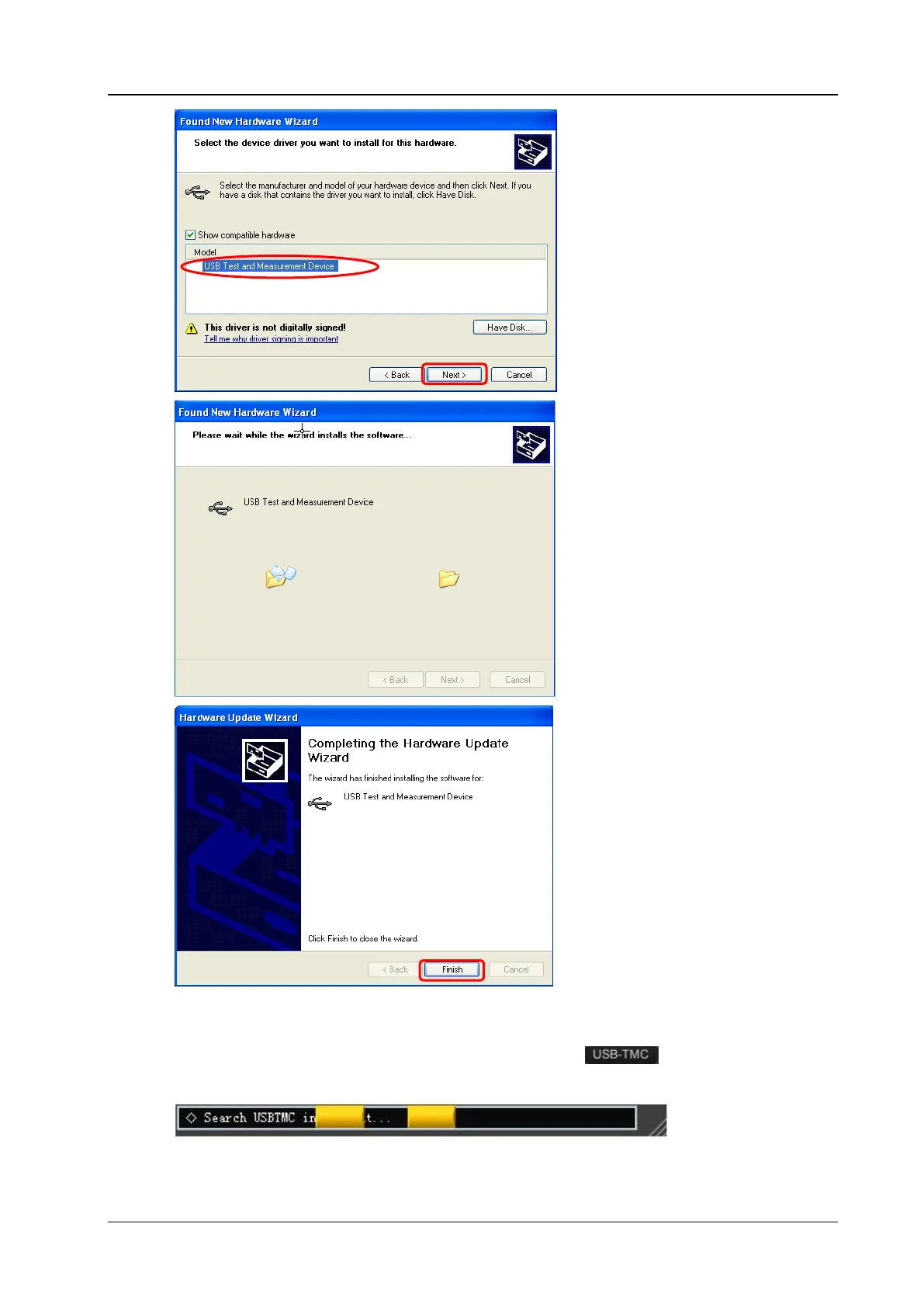

(3) Search for device resource
Start up the Ultra Sigma and the software will automatically search for the oscilloscope
resources currently connected to the PC. You can also click
to search for the
resources. During the search, the status bar of the software is as shown in the figure below.
5
6
7

Rigol DS1104Z Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Interface	USB Host, USB Device, LAN, AUX
Display	7 inch TFT LCD (800 x 480)
Trigger Types	Edge, Pulse, Video, Slope
Power Supply	100-240 V, 45-440 Hz
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
