Rigol DS1104Z Programming Guide

Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-3
Excel Programming Demo
The program used in this demo: Microsoft Excel 2010
The function realized in this demo: send the *IDN? Command to read the device information.
1. Create a new Excel file that enables the Macros. In this demo, the file is named as
DS1000Z_Demo_Excel.xlsm.

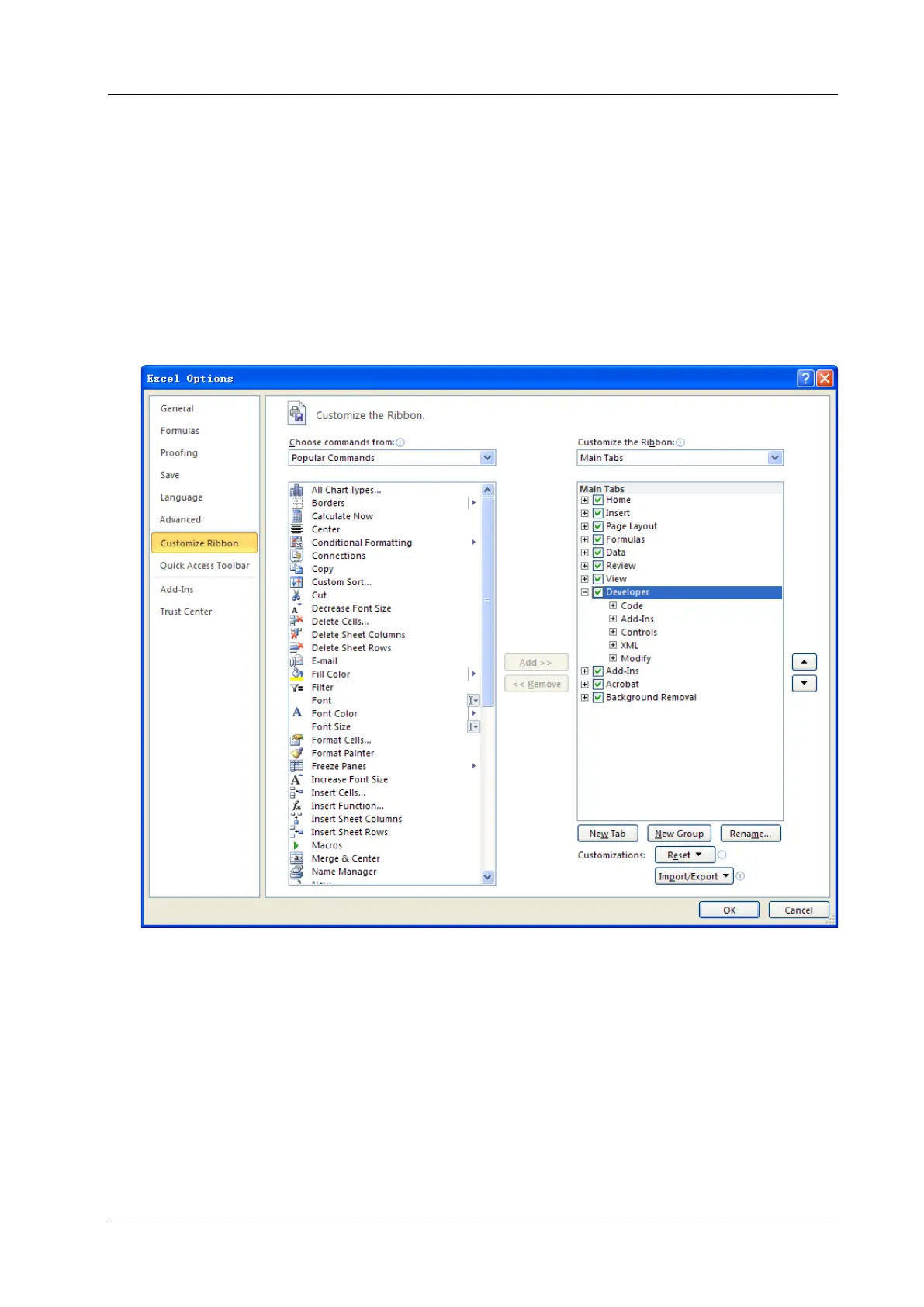

2. Run the DS1000Z_Demo_Excel.xlsm file. Click FileOptions at the upper-left corner of the Excel file
to open the interface as shown in the figure below. Click Customize Ribbon at the right, check
Developer and click OK. At this point, the Excel menu bar displays the Developer menu.

Rigol DS1104Z Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Interface	USB Host, USB Device, LAN, AUX
Display	7 inch TFT LCD (800 x 480)
Trigger Types	Edge, Pulse, Video, Slope
Power Supply	100-240 V, 45-440 Hz
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
