Chapter 2 Command System RIGOL

DS1000Z Programming Guide 2-133

:WAVeform Commands

The :WAVeform commands are used to read the waveform data and its related settings.

:WAVeform:MODE

is used to set the reading mode of the waveform data. In different mode, the definition of each parameter

is different, as shown in Figure 2-1 and Figure 2-2.

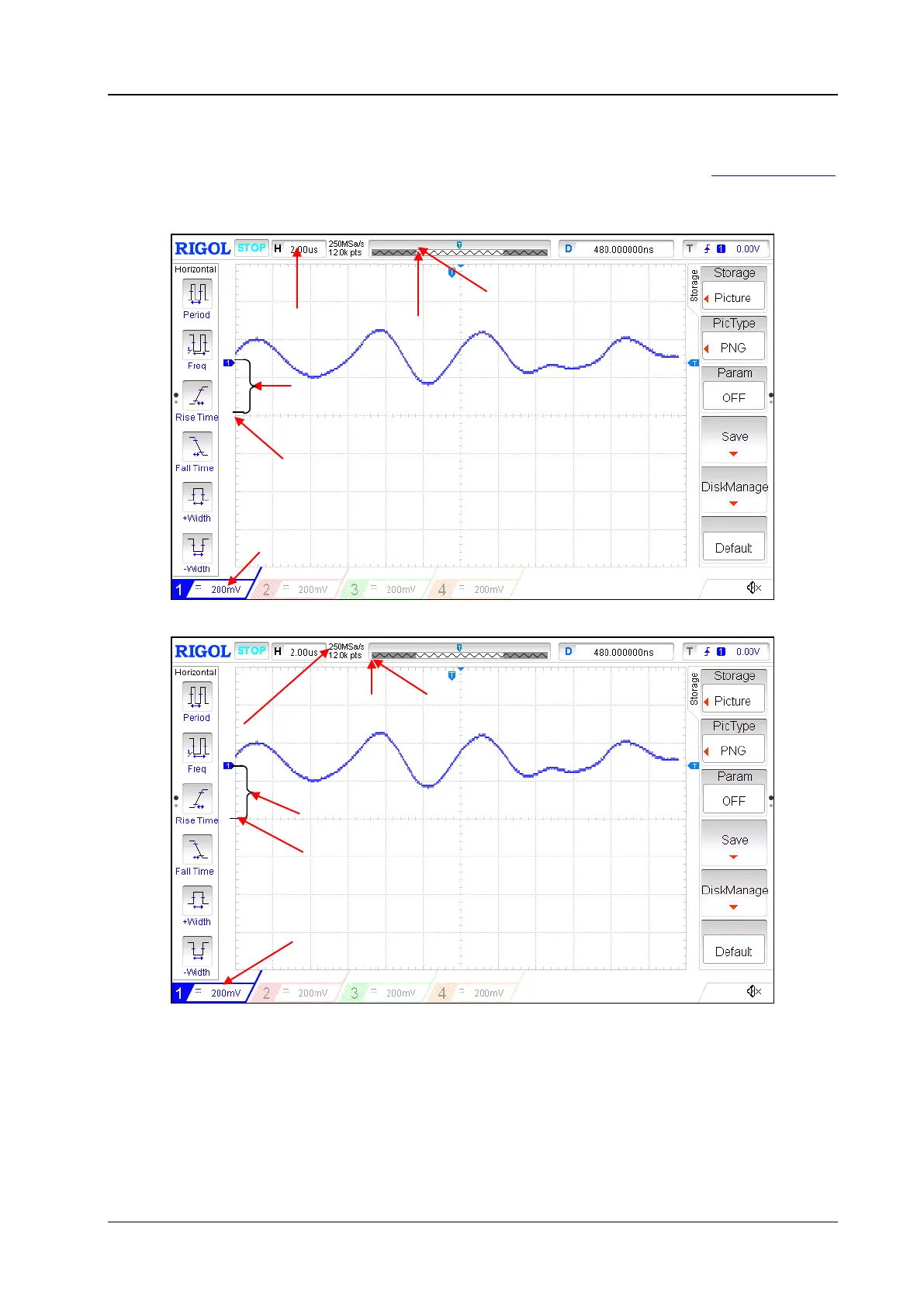

Figure 2-1 Parameter Definitions in NORMAL Mode

Figure 2-2 Paramter Definitions in RAW Mode

XORigion

YORigion

YREFerence

YINCrement=Verticalscale/25

XINCrement=TimeScale/100

XREFerence

XORigion

YORigion

YREFerence

YINCrement=Vscale/2

XINCrement=1/SampleRate

XREFerence
