Rigol DS1104Z Programming Guide

Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-15
Visual C++ Programming Demo
The program used in this demo: Microsoft Visual C++ 6.0
The functions realized in this demo: search for the instrument address, connect the instrument, send
command and read the return value.
Enter Visual C++6.0 and operate accoding to the following steps:
1. Create a MFC project based on dialog box.

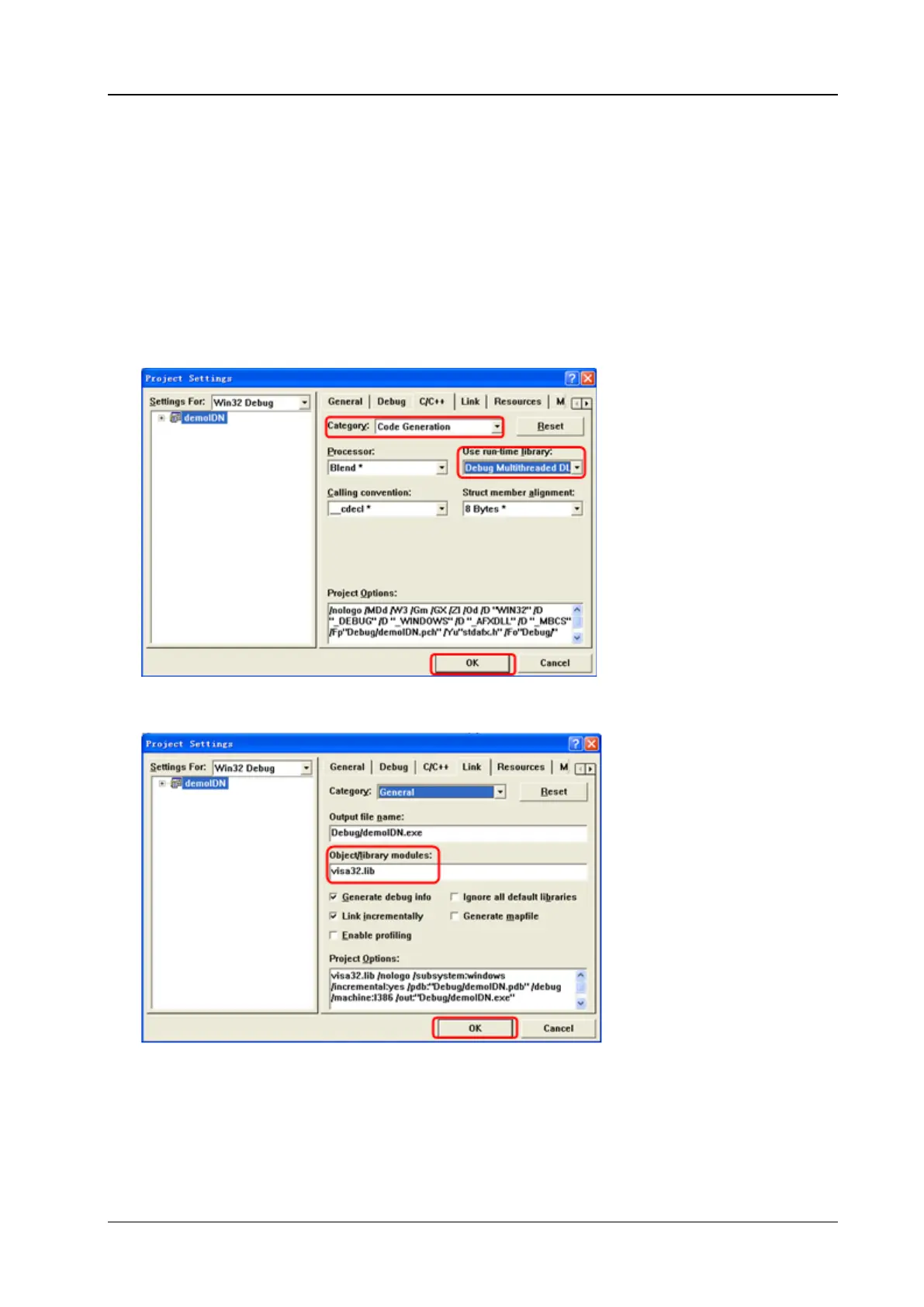

2. Open the C/C++ tab in ProjectSettings, select Code Generation in Category and Debug
Multithreaded DLL in Use run-time library. Then, click OK to close the dialog box.
3. Open the Link tab in ProjectSettings and add visa32.lib to the Object/library modules
manually.

Rigol DS1104Z Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Interface	USB Host, USB Device, LAN, AUX
Display	7 inch TFT LCD (800 x 480)
Trigger Types	Edge, Pulse, Video, Slope
Power Supply	100-240 V, 45-440 Hz
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
