Rigol DS1104Z Programming Guide

RIGOL Chapter 3 Programming Demos
3-16 DS1000Z Programming Guide

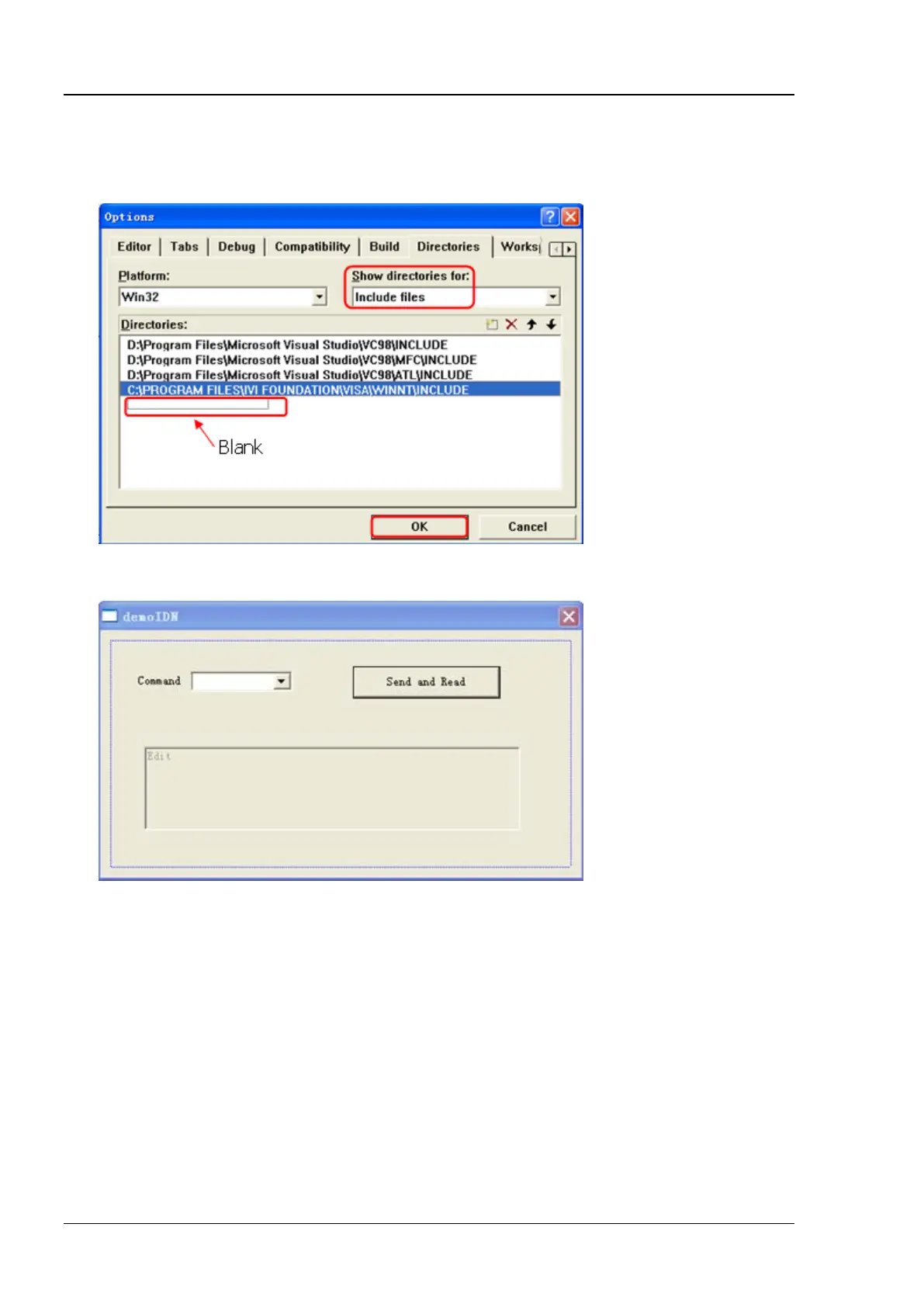

4. Open the Directories tab in ToolsOptions.
Select Include files in Show directories for and double-click the blank in Directories to add the
path of Include: C:\Program Files\IVI Foundation\VISA\WinNT\include.
Select Library files in Show directories for and double-click the blank in Directories to add the
path of Lib: C:\Program Files\IVI Foundation\VISA\WinNT\lib\msc.
Note: at present, VISA library has been added.
5. Add the Text, Combo Box, Button and Edit Box controls as shown in the figure below.
6. Modify the control attribute.
1) Name Text as "Command".
2) Open the Data item in Combo Box attribute and input *IDN? Manually.
3) Open the General item in Edit Box attribute and select Disabled.
4) Name Button as Send and Read.

Rigol DS1104Z Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Interface	USB Host, USB Device, LAN, AUX
Display	7 inch TFT LCD (800 x 480)
Trigger Types	Edge, Pulse, Video, Slope
Power Supply	100-240 V, 45-440 Hz
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
