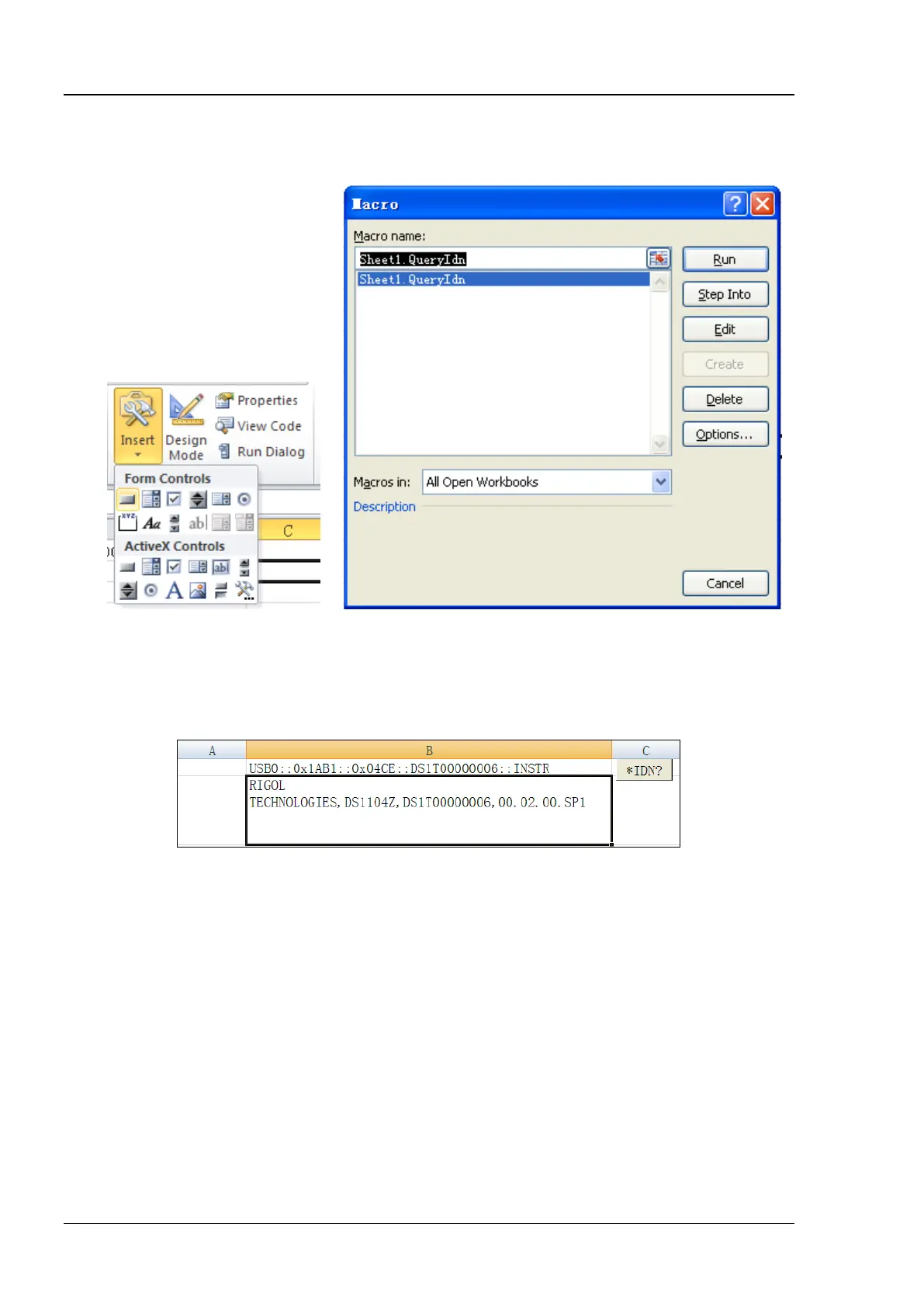

6. Add button control: click Insert in the Developer menu, select the desired button in Form Controls
and put it into the cell of the Excel. At this point, the Assign Macro interface is displayed, select
“Sheet1.QueryIdn” and click “OK”.
By default, the button mane is “Button 1”. Right-click the button and select Edit Text in the pop-up
menu to change the button name to “*IDN?”.
7. Click the “*IDN?” button to send request and read data. The returned data will be displayed in SHEET1
CELLS (2,2), as shown in the figure below.

Rigol DS1104Z Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Interface	USB Host, USB Device, LAN, AUX
Display	7 inch TFT LCD (800 x 480)
Trigger Types	Edge, Pulse, Video, Slope
Power Supply	100-240 V, 45-440 Hz
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
