Rigol DS1104Z Programming Guide

RIGOL Chapter 3 Programming Demos
3-18 DS1000Z Programming Guide
viFindRsrc(defaultRM, "USB?*", &list,&nmatches, matches);
viOpen (defaultRM,matches,VI_NULL,VI_NULL,&vi);
// Send the command received
m_combox.GetLBText(m_combox.GetCurSel(),strTemp);
strTemp = strTemp + "\n";
stringTemp = (char*)(LPCTSTR)strTemp;
viPrintf (vi,stringTemp);
// Read the result
viScanf (vi, "%t\n", &buf);
// Display the result
UpdateData (TRUE);
m_receive = buf;
UpdateData (FALSE);
viClose (vi);
viClose (defaultRM);

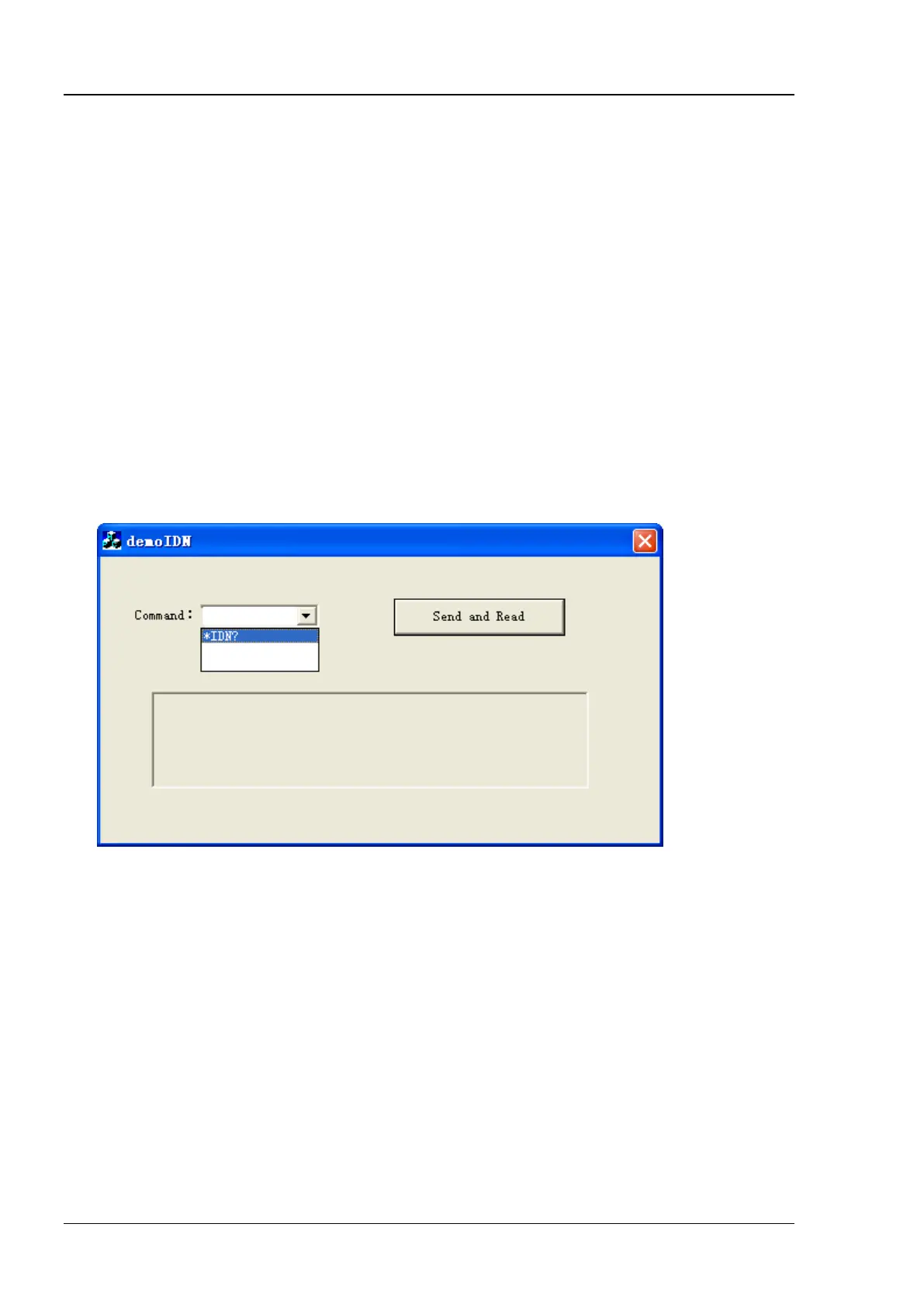

9. Save, compile and run the project and a single exe file can be obtained. When the oscilloscope is
correctly connected to the PC, you can select the command *IDN? and click Send and Read to
display the return result of the oscilloscope.

Rigol DS1104Z Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Interface	USB Host, USB Device, LAN, AUX
Display	7 inch TFT LCD (800 x 480)
Trigger Types	Edge, Pulse, Video, Slope
Power Supply	100-240 V, 45-440 Hz
Memory Depth	24 Mpts (Single Channel), 12 Mpts (Dual Channel)
