Connecting and disconnecting the external fluid containers
a To connect the waste container
1
Place the empty yellow waste container on the tray.
2
Connect the waste tubing by pushing the plug firmly in the socket.
3
Insert the tubing adapter in the container and push it down firmly.
a To connect the cleaner bottle
1
Place the bottle on the tray.
2
Thread the tube through the protective sleeve, make sure that the wider end of the
sleeve points away from the analyzer.
3
Screw the cleaner tubing to the connector on the analyzer. Do not fasten the screw
too tight.
4
Push the protective sleeve firmly on its base on the analyzer (C).
5
Insert the tubing adapter in the container and push it down firmly.

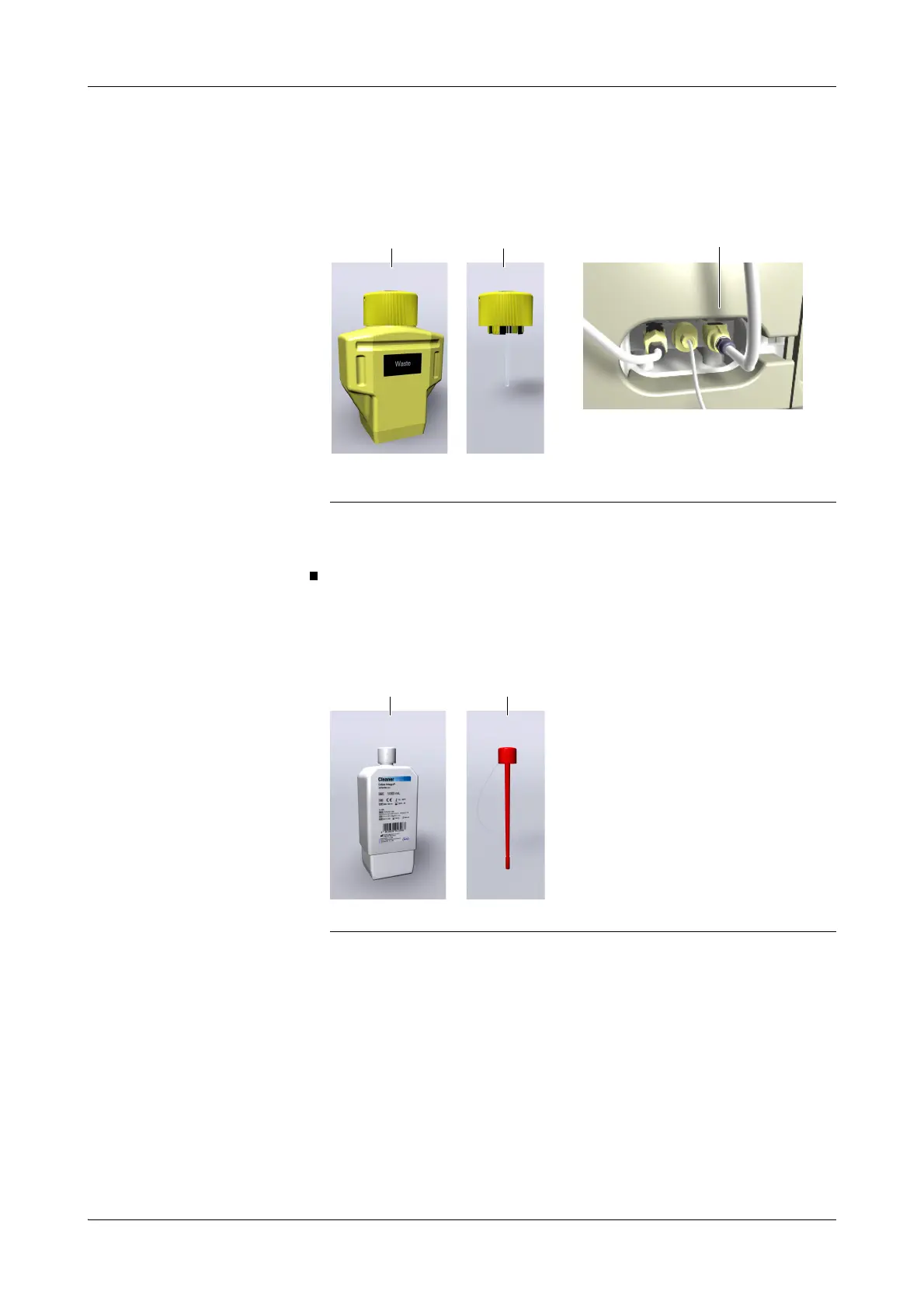

A Waste container
B Tubing adapter
C Waste connector
Figure B-42
A Cleaner bottle B Tubing adapter
Figure B-43
