Cedex Bio analyzer 6 Special operations
Connecting and disconnecting the external fluid containers
6 Insert the tubing adapter in the container and push it down firmly.
a To disconnect a tube from the analyzer
1 Remove the right side panel.
2 Do one of the following:
C Cleaner connector with protective sleeve

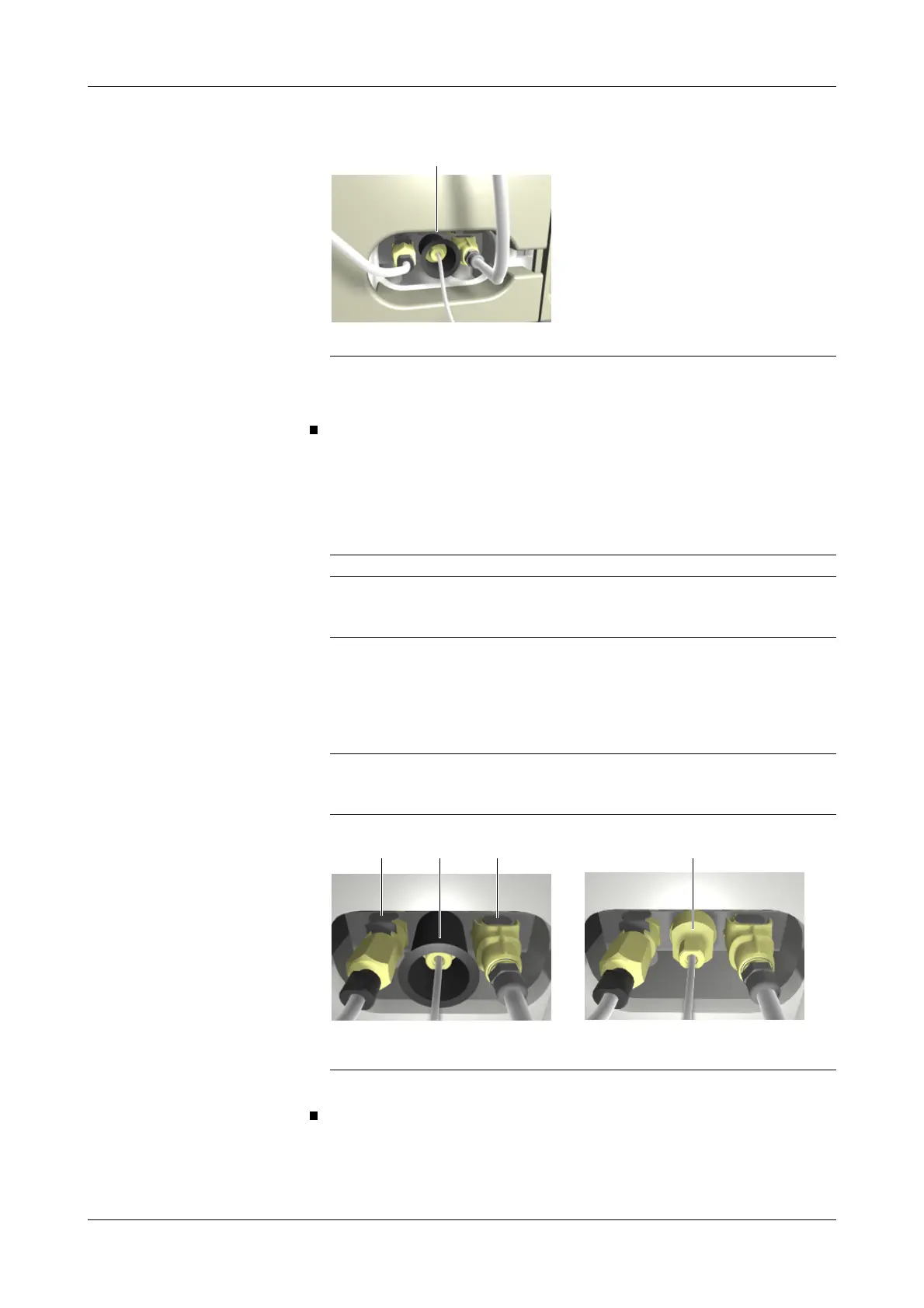

Figure B-44
C
If Do this
You want to disconnect the water tubing: Press down the release clamp (A) on the
connecting socket and pull the connector
away from the socket.
You want to disconnect the cleaner tubing: 1. Pull out the protective sleeve (B) and
move it along the tube far enough that
you can grip the connecting screw.
2. Turn the connecting screw (D)
counterclockwise until the connector is
released.
You want to disconnect the waste tubing: Press down the release clamp (C) on the
connector and pull the connector away
from the socket.
A Release clamp on water connecting socket
B Cleaner connector with protective sleeve
C Waste connector release clamp
D Cleaner connector screw
Figure B-45
A B C
D
