102 Rockwell Automation Publication ICSTT-RM448M-EN-P - February 2021
Chapter 5 Install the AADvance System

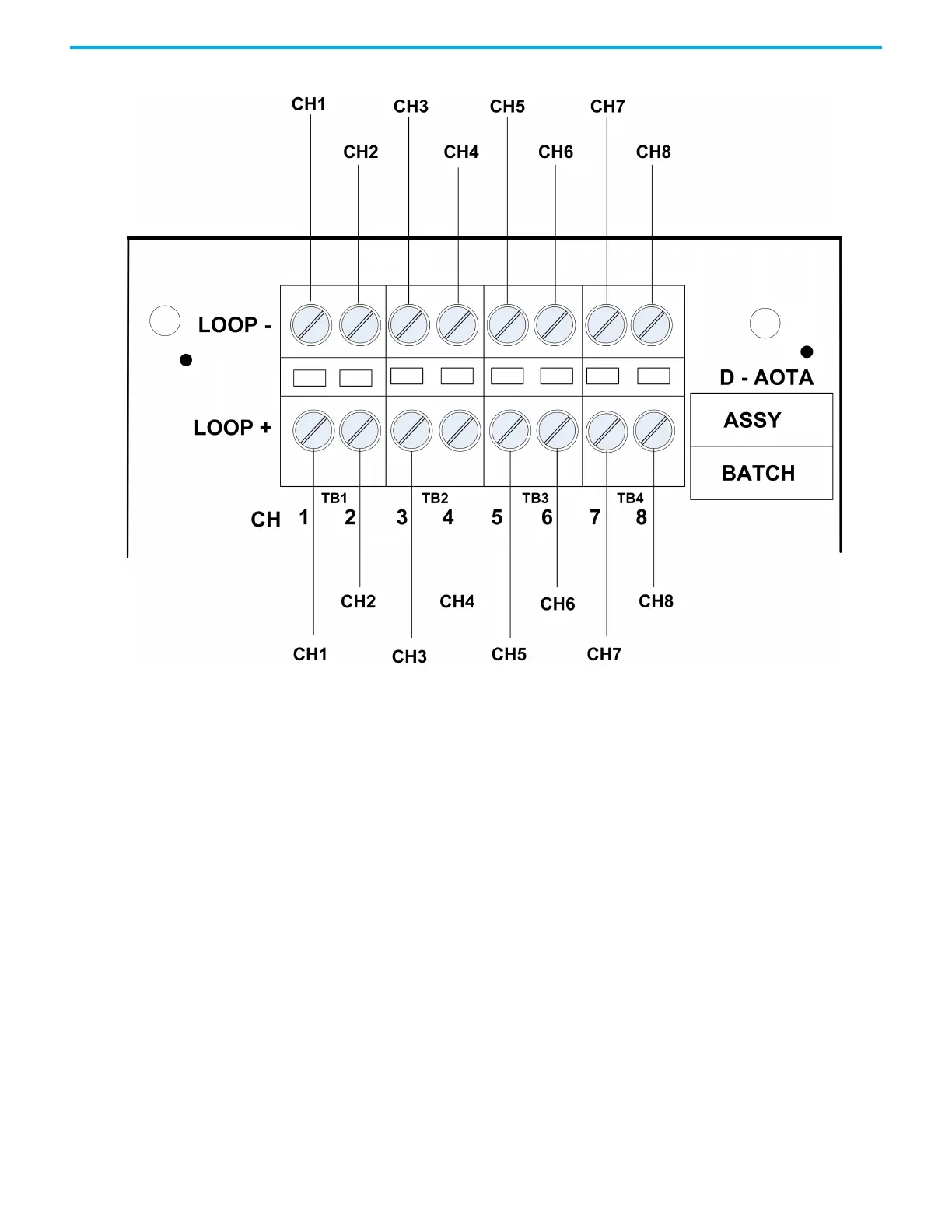

Apply a minimum tightening torque of 0.5 Nm (0.37 ft. lb.) to the terminal
screws.
Install Modules The modules of the AADvance controller mount onto the base units. The
processor module(s) mount onto the T9100 processor base unit, while the
various I/O modules mount onto the T9300 I/O base unit and associated
termination assemblies.
The product range includes two sizes of blanking covers to conceal unused
module positions. The shorter cover is for a spare position on the processor
base unit, while the taller cover is for a spare position on an I/O base unit.
Install a T9110 Processor
Module
Do the following:
• Before inserting a new processor module, examine it for damage.
• The identification labels on the sides of the module will be hidden after
the module is installed. Therefore before installation make a record of
the location of the module and the details shown on the label.
• If you are installing more than one processor module make sure they all
have the same firmware build.
