Rockwell Automation Publication ICSTT-RM448M-EN-P - February 2021 37
Chapter 2 The AADvance Safety Controller

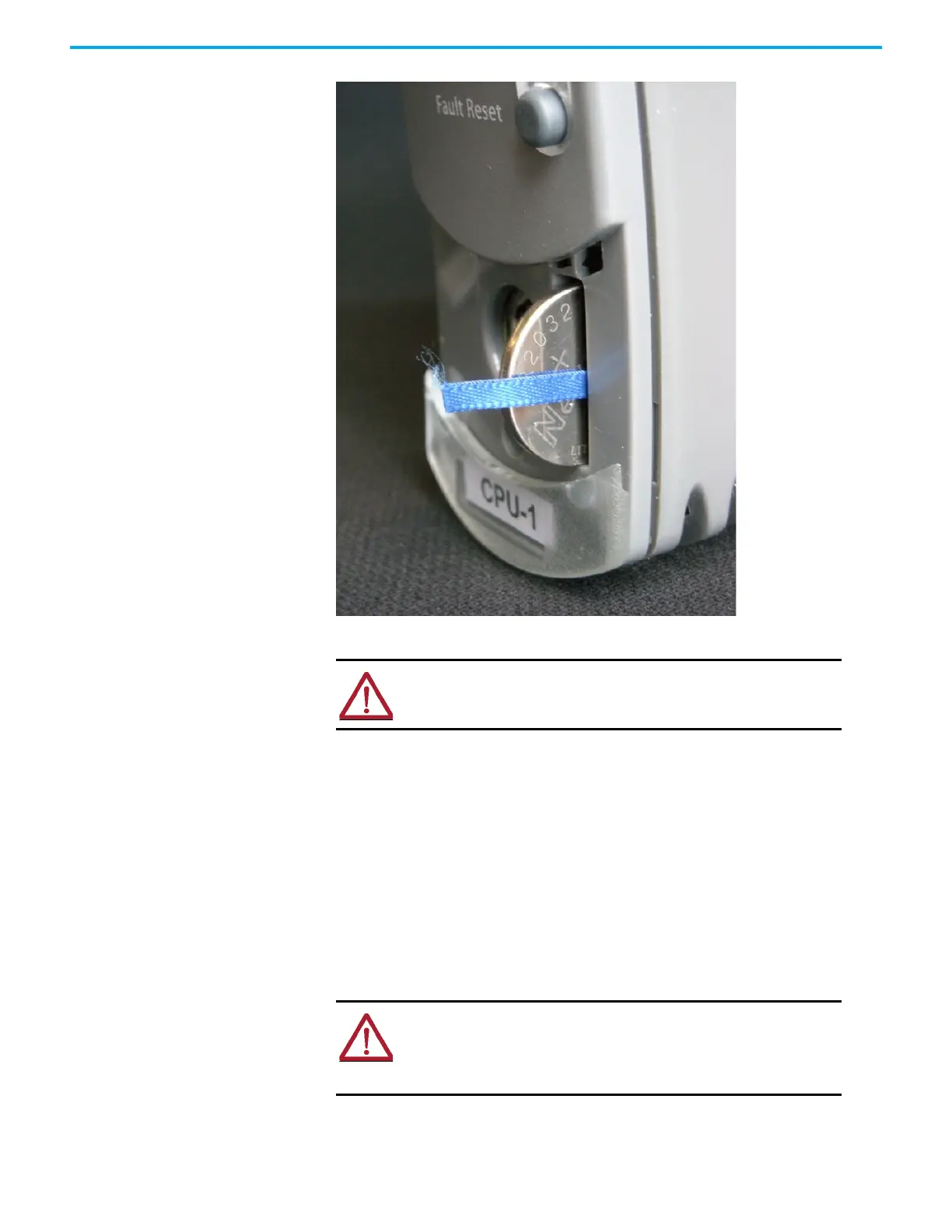

Battery Specification
A Polycarbon monofluoride Lithium Coin Battery with a nominal voltage of 3V;
Nominal capacity (mAh) 190; Continuous standard load (mA) 0.03; Operating
temperature range -30ºC to +80ºC, manufactured by Panasonic.
Processor Maintenance Socket
Behind the removal cover on the processor front panel is a maintenance socket
SK1. This socket is for maintenance use only.
CAUTION: The battery may explode if mistreated. Do not recharge,
disassemble or dispose of in a fire.
CAUTION: K1 is for maintenance only. When AADvance is installed in a
hazardous location power must be disconnected or the area known to be free
of ignitable concentrations of flammable gases or vapours when using this
socket.
