Rockwell Automation Publication ICSTT-RM448M-EN-P - February 2021 99
Chapter 5 Install the AADvance System

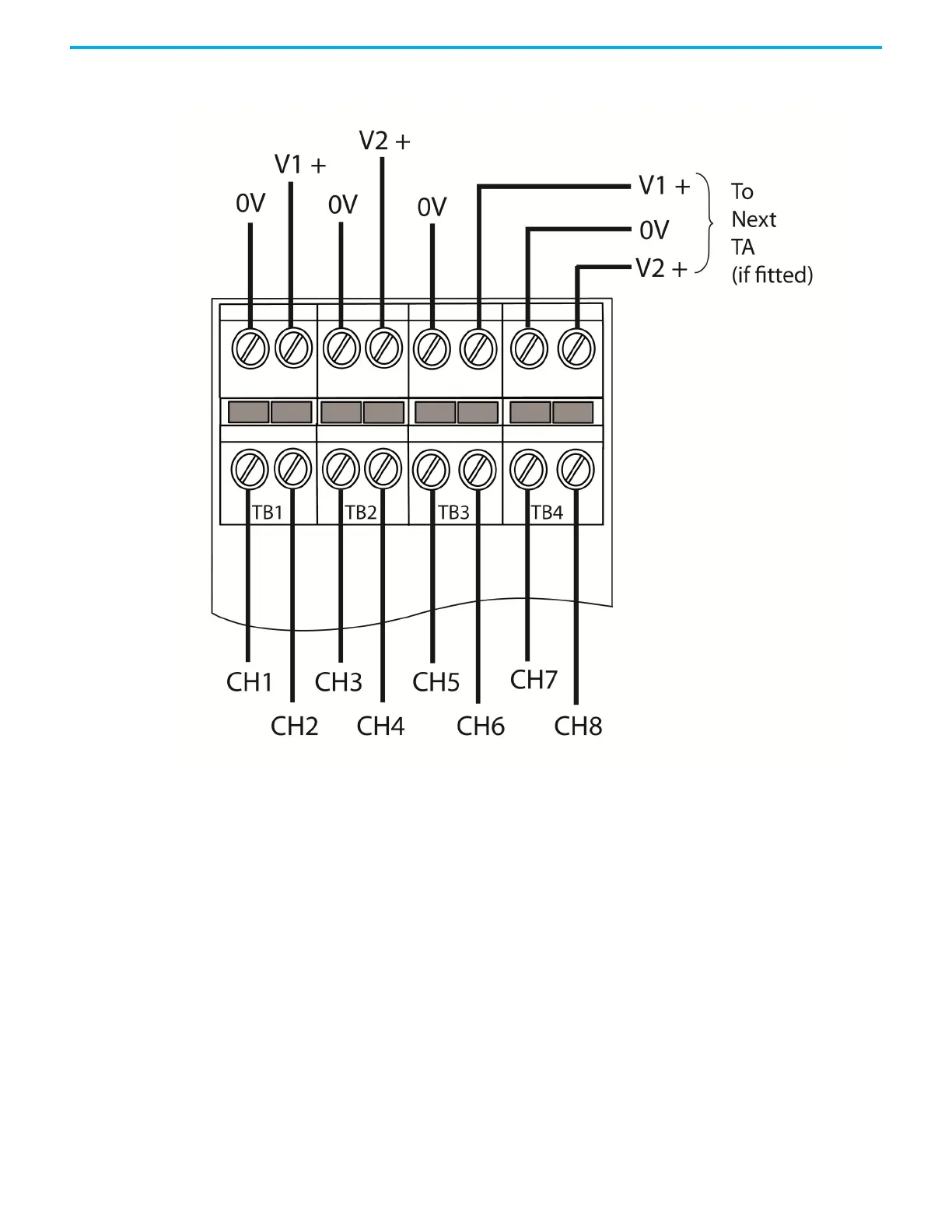

Figure 21 - Digital Output Termination Assembly Wiring
• Apply a minimum tightening torque of 0.5 Nm (0.37 ft. lb.) to the
terminal screws.
Recommended Circuit for Analogue Outputs
These circuits are suitable for simplex and dual configurations of analogue
output modules. All channels are isolated from each other but may be bridged
at the '+' terminal if fed by a common system mounted supply.
