Rockwell Automation Allen-Bradley AADvance T9110 System Build Manual

Rockwell Automation Publication ICSTT-RM448M-EN-P - February 2021 91
Chapter 5 Install the AADvance System

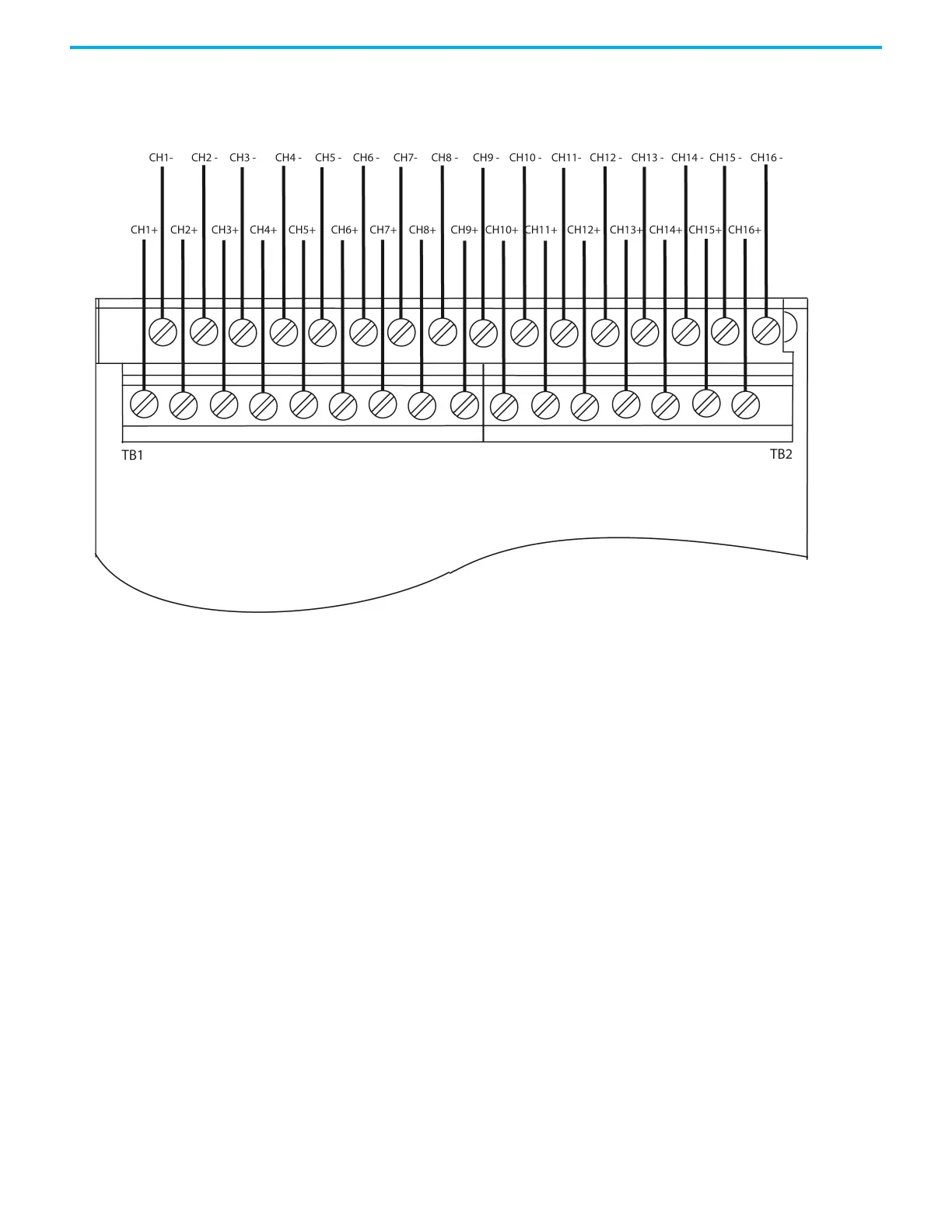

Connections to T9802/T9803 Isolated Digital Input TA — 16 Channel Dual/TMR
• Apply a minimum tightening torque of 0.5 Nm (0.37 ft. lb.) to the
terminal screws.
Analogue Input Field loop Circuits
These circuits can be used for simplex, dual and triple configurations of
analogue input modules. Fit a fuse (as shown) in each circuit to protect the
field wiring.
The recommended field loop circuits for analogue inputs are as shown below.
