90 Rockwell Automation Publication ICSTT-RM448M-EN-P - February 2021

Chapter 5 Install the AADvance System

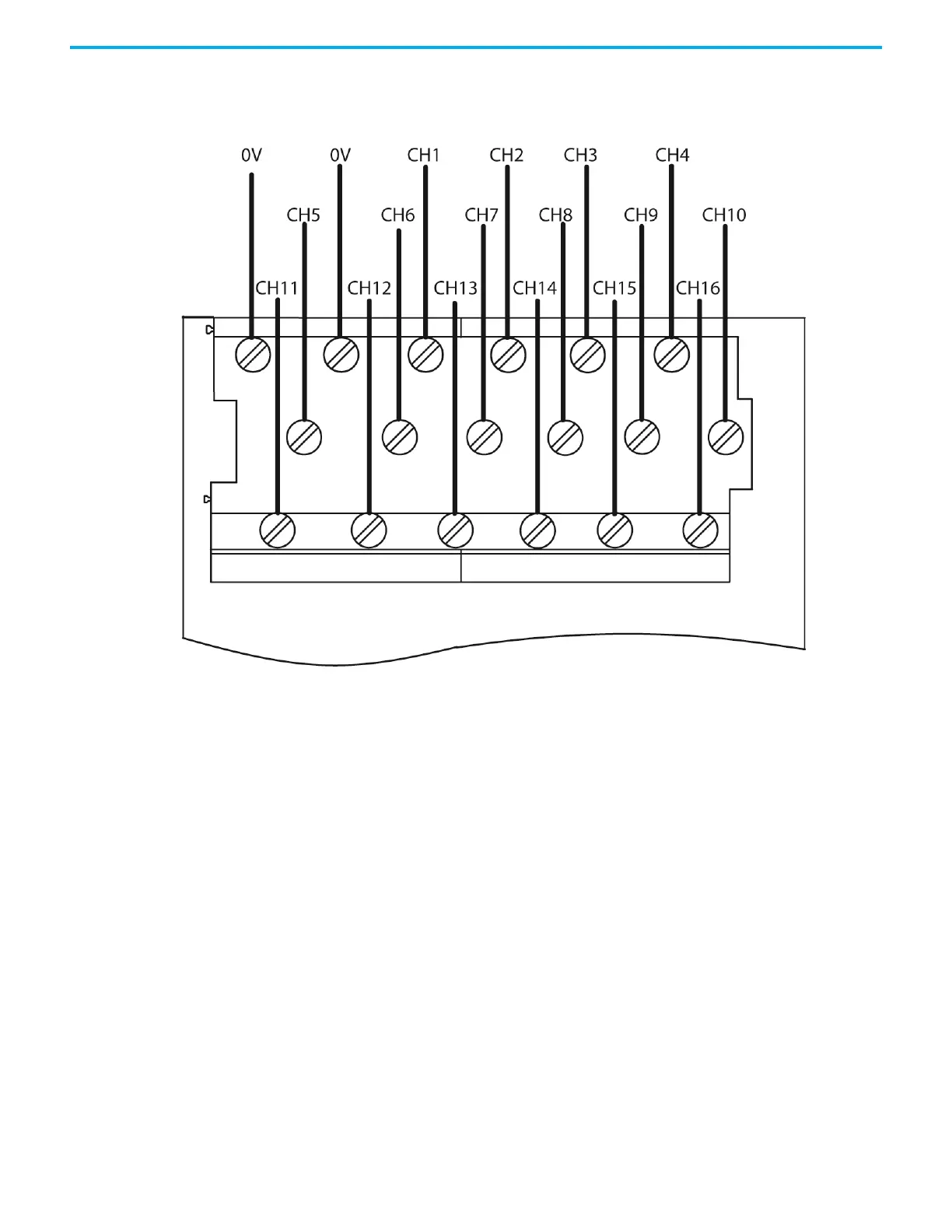

Connections to T9801 Non-isolated Digital Input TA — 16 Channel Simplex

• Apply a minimum tightening torque of 0.5 Nm (0.37 ft. lb.) to the

terminal screws.
