Chapter 6 System Startup
Discover tool does not discover controllers if there are multiple network
connections enabled.
Configure the Controller
Resource Number in the
Controller
When assembling a new AADvance controller (or install a new T9100 processor
base unit) you have to configure the resource number stored in the controller.
The resource number is a type of device address, and it must also be
configured in the application.
The procedure to configure the resource number uses the AADvance Discover
utility. To set the resource number do the following:
1. Write down the controller's MAC address (Controller ID) displayed on a
label on the processor base unit. Install at least one T9110 processor
module into the processor base unit.
2. Make sure the program enable key is inserted in the KEY connector on
the processor base unit.
3. Start the AADvance Discover tool from the Start menu:

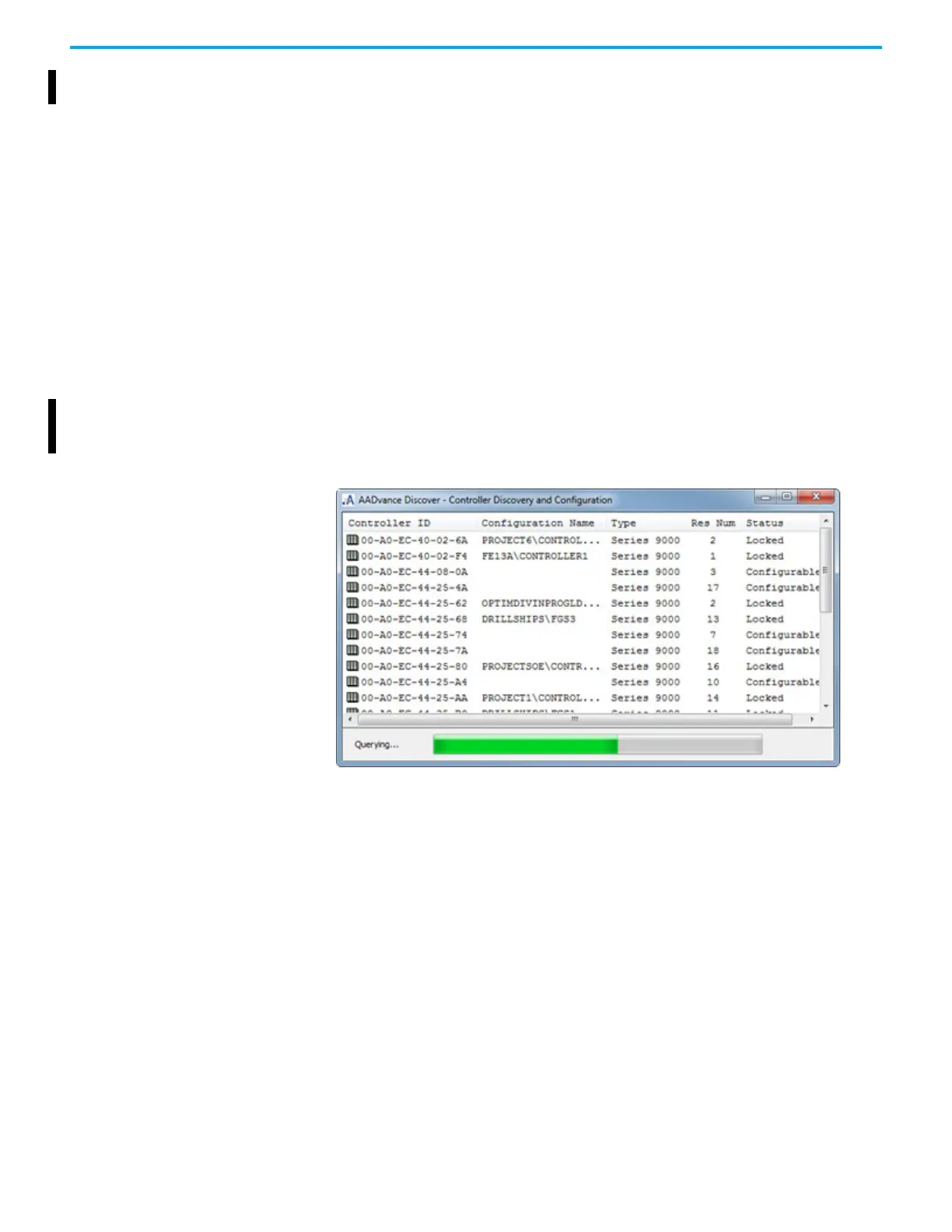

The AADvance Discover utility scans the network for controllers and
creates a list.
4. Locate the controller in the list and make sure that the status of the
controller is Configurable.
5. Double-click the MAC address in the Controller ID field.
• The resource and IP Address dialog box is displayed.
