Rockwell Automation Publication ICSTT-RM448M-EN-P - February 2021 103
Chapter 5 Install the AADvance System
Installation

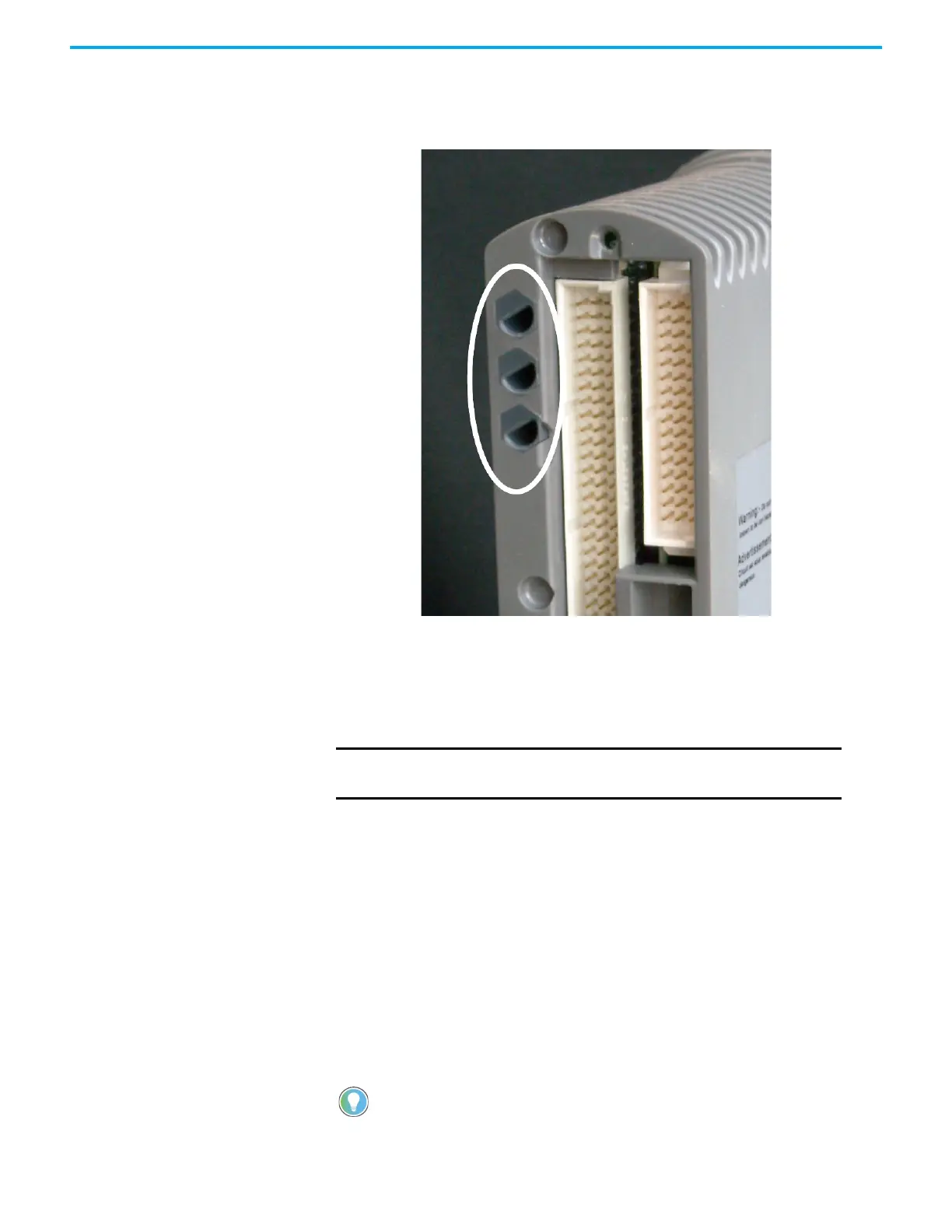

1. Examine the coding pegs on the T9100 processor base unit and make
sure they complement the sockets on the rear of the processor module:
2. Place the processor module on to the coding pegs. Make sure the slot on
the head of the module locking screw is vertical and then push the
module home until the connectors are fully mated.
3. Using a broad (9mm) flat blade screwdriver turn the module locking
screw clockwise to lock.
Replace a Faulty Processor Back-up Battery
Use the following official Rockwell Automation battery or one of an equivalent
specification.
Part No and Description
T9905: Polycarbon monofluoride Lithium Coin Battery, BR2032
(recommended type), 20 mm dia; Nominal voltage 3 V; Nominal capacity
(mAh.) 190; Continuous standard load (mA.) 0.03; Operating temperature -30
°C to +80°C, supplied by Panasonic.
NOTE The locking screw acts as a power interlock device and must be
locked or the module will not boot up.
Battery design life is based on operating at a constant 25 ° C and low
humidity (high humidity, temperature and frequent power cycles are all
factors that will shorten the batteries operational life).
