86 Rockwell Automation Publication ICSTT-RM448M-EN-P - February 2021
Chapter 5 Install the AADvance System
• The AADvance system must not be on a network with open unsecured
access to the Internet.
• The Firewall must be active on the computer, helping prevent access to
the relevant Ethernet ports on each communication interface. Anti-
virus software must be installed and be kept up-to-date.
• The computer must be password-protected. If using a laptop, keep the
laptop locked when not in use.
• If the software uses a hardware license USB dongle, keep the USB
dongle secure. The software will not run without the USB dongle.
• The application must be password-protected.
• Removable media, such as USB storage devices and CDs, must be virus
checked before use in the system.

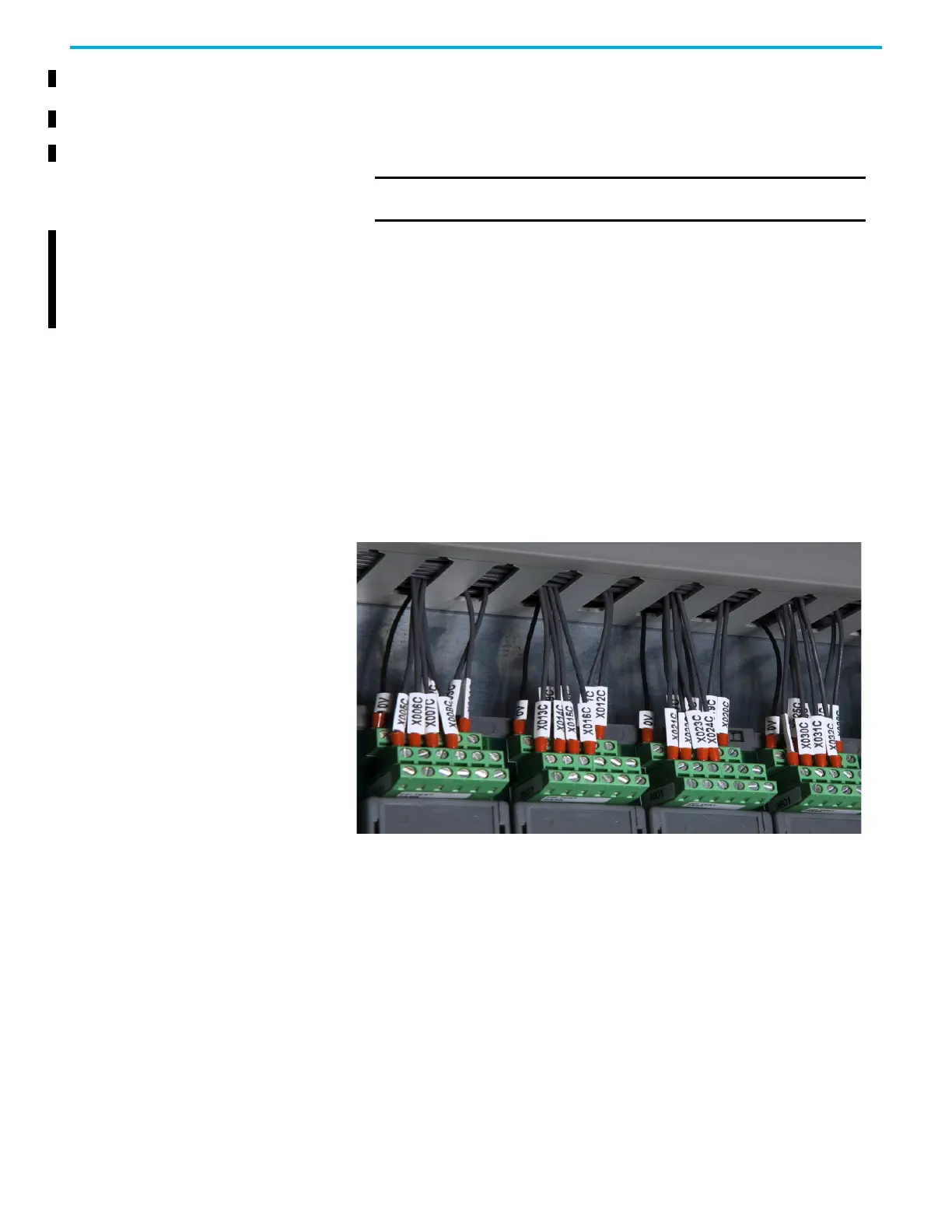

Connecting Field Wiring Connect the field wiring to the screw terminal blocks on the termination
assemblies.
Use conductor wire with a cross section of 16 AWG. The stripping length
should be 6mm (1/4 in.) and a conductor temperature rating of 85 ºC. Apply a
tightening torque of 0.5 Nm (0.37 ft. lb.) to the terminal screws.
Digital Input Field Loop Circuits
Recommended Field Loop Circuits
This section contains recommended field loop circuits for line monitoring
digital inputs used in Emergency Shutdown or Fire & Gas applications.
IMPORTANT
Firewalls have been known to change the operation of the
AADvance Discover tool.
