Rockwell Automation Publication ICSTT-RM448M-EN-P - February 2021 87

Chapter 5 Install the AADvance System

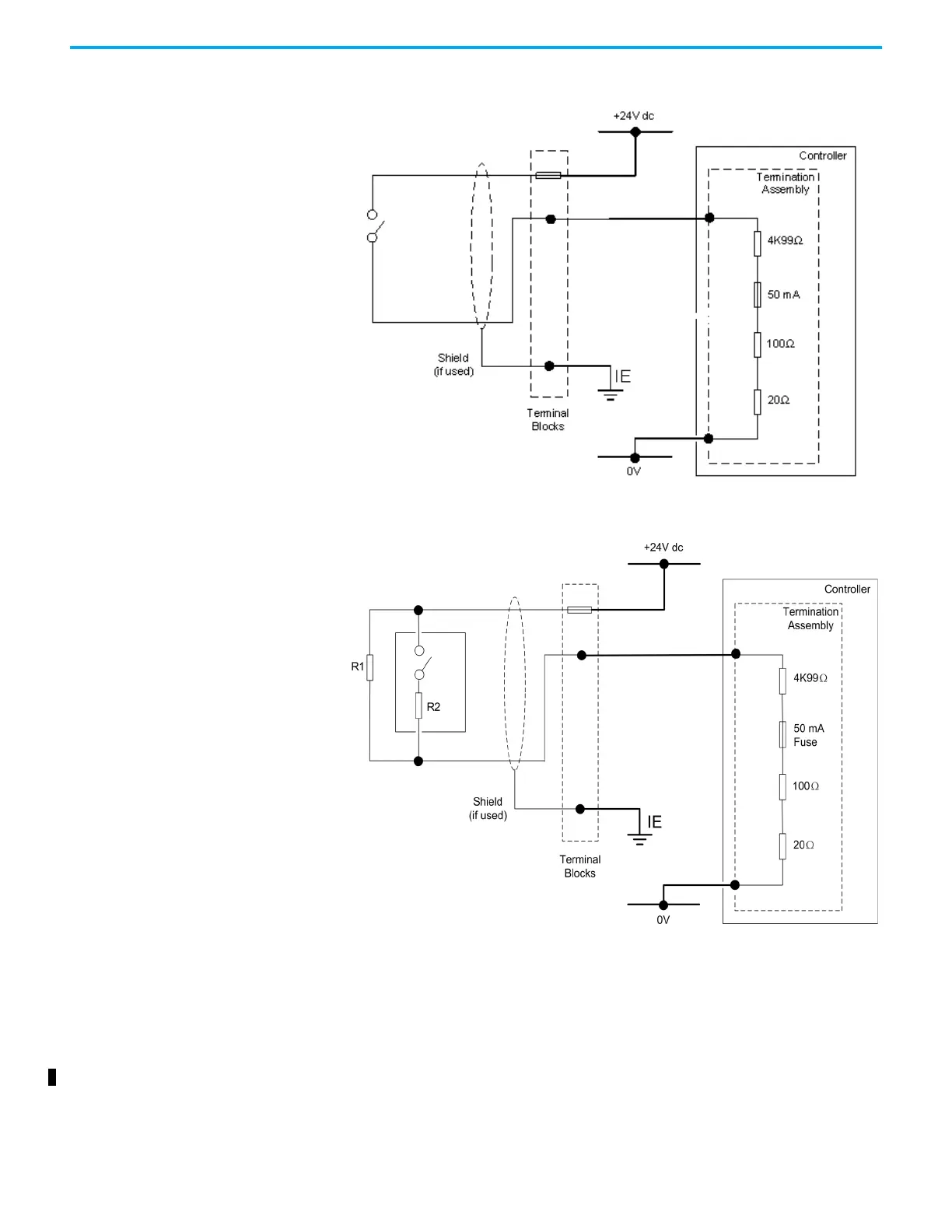

Field Loop Circuit for Digital Input

Field Loop Circuit for Line Monitored Digital Input for Emergency Shutdown Systems (ESD)

The suggested values for R1 and R2 are as follows:

R1 = 15K  1%, 1W (maximum power dissipated is 47mW at 26.4V)

R2 = 3K9  1%, 1W (maximum power dissipated is 182mW at 26.4V)

Suggested range of values for both of the above circuits are as follows:
