Chapter 6 System Startup
1. Write down the controller's MAC address (the Controller ID) displayed
on a label on the processor base unit. Install at least one T9110 processor
module into the processor base unit.
2. Make sure the program enable key is inserted in the KEY connector on
the processor base unit.
3. Start the AADvance Discover tool from the Start menu:
• The AADvance Discover utility scans the network for controllers, and
creates a list.
• It can also be launched from within the AADvance Workbench
software or AADvance-Trusted SIS Workstation software from the
View menu.
4. Locate the controller in the list and make sure that the status of the
controller is Configurable.
5. Double-click on the MAC address in the Controller ID field.

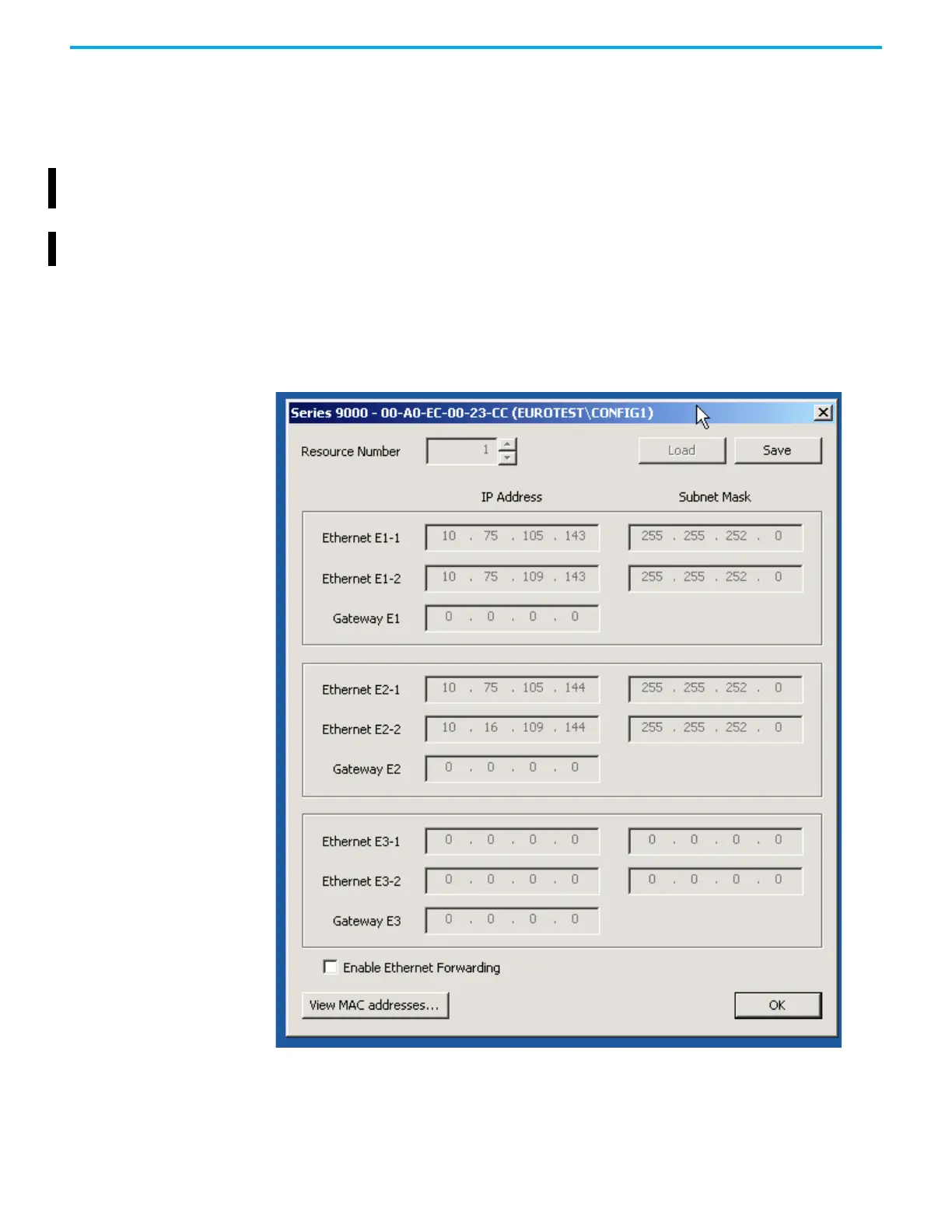

• The resource and IP address dialog box is displayed.
6. Enter the IP Address and Subnet Mask into the fields for each Ethernet
port.
7. Enter the Gateway values for each processor module, then click Apply.
• Returning to the main window of the utility, the controller status will
shows In Progress and then Configurable.
