Chapter 2 The AADvance Safety Controller

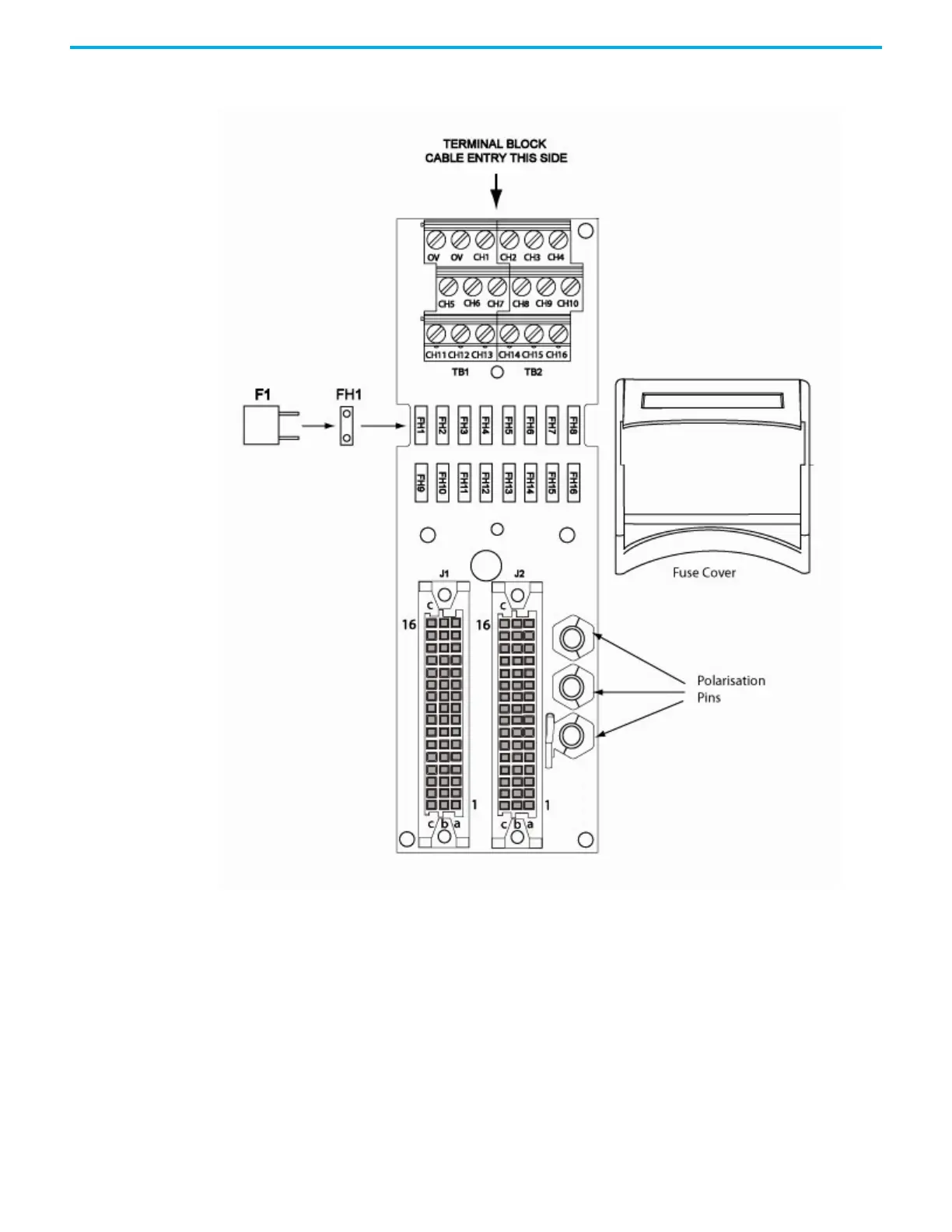

Figure 8 - Top View
T9892 Digital Output Termination Assembly
The T9892 Terminal Assembly module operates in conjunction with the T9451
Digital Output Module and provides 8 dual configuration output channels. It
shares the same pin-out as the standard AADvance T9852 Digital Output
Terminal Assembly and has the same coding peg configuration. The difference
is that the T9892 has a separate connector for the field power input voltage
connections (the left most terminal block shown below). It also has additional
fusing to give extra protection against field faults.
