Chapter 5 Install the AADvance System

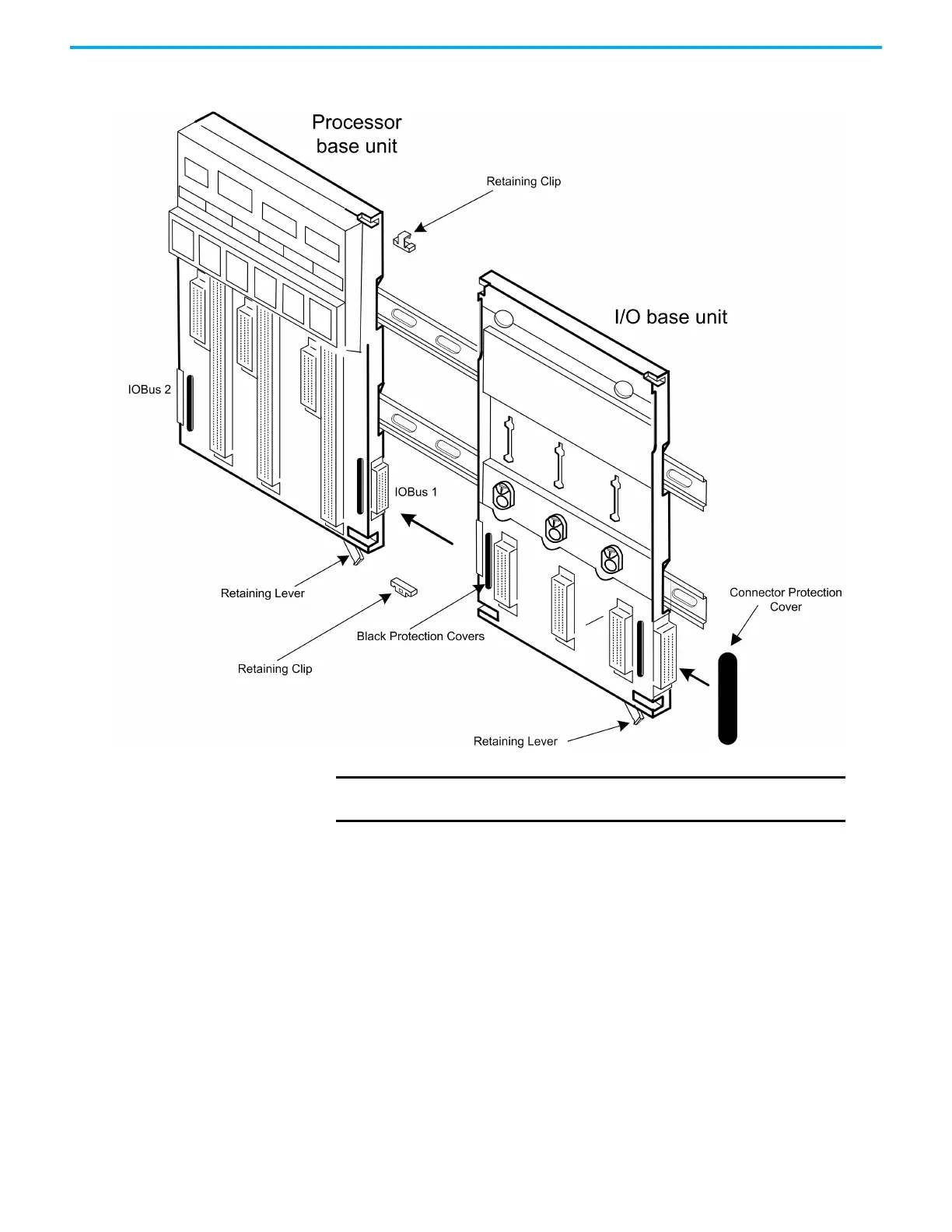

Figure 15 - Fit I/O Base Unit onto DIN Rails
For a system build that uses DIN rails do the following:
1. Install the DIN rails.
• The AADvance controller will be mounted onto one or more pairs of
parallel DIN rails. For each pair of rails, mount the lower rail with its
center line 101.0mm below the center line of the upper rail. M5 thread
rolling screws are suitable.
2. Mount the T9100 processor base unit
•Place the T9100 processor base unit onto the DIN rails and position it
towards the left, leaving space for the T9300 I/O base units to the right.
• Secure the processor base unit onto the DIN rails by sliding the
retaining lever (below the base unit) to the left.
3. Mount each T9300 I/O base unit
•Place a T9300 I/O base unit onto the DIN rails to the right of the T9100
processor base unit.
IMPORTANT
Fit the rubber connector protection cover to exposed connectors
that are not joined to another base unit.
