Serial Communications 8-11
1560D-UM051D-EN-P – February 2005

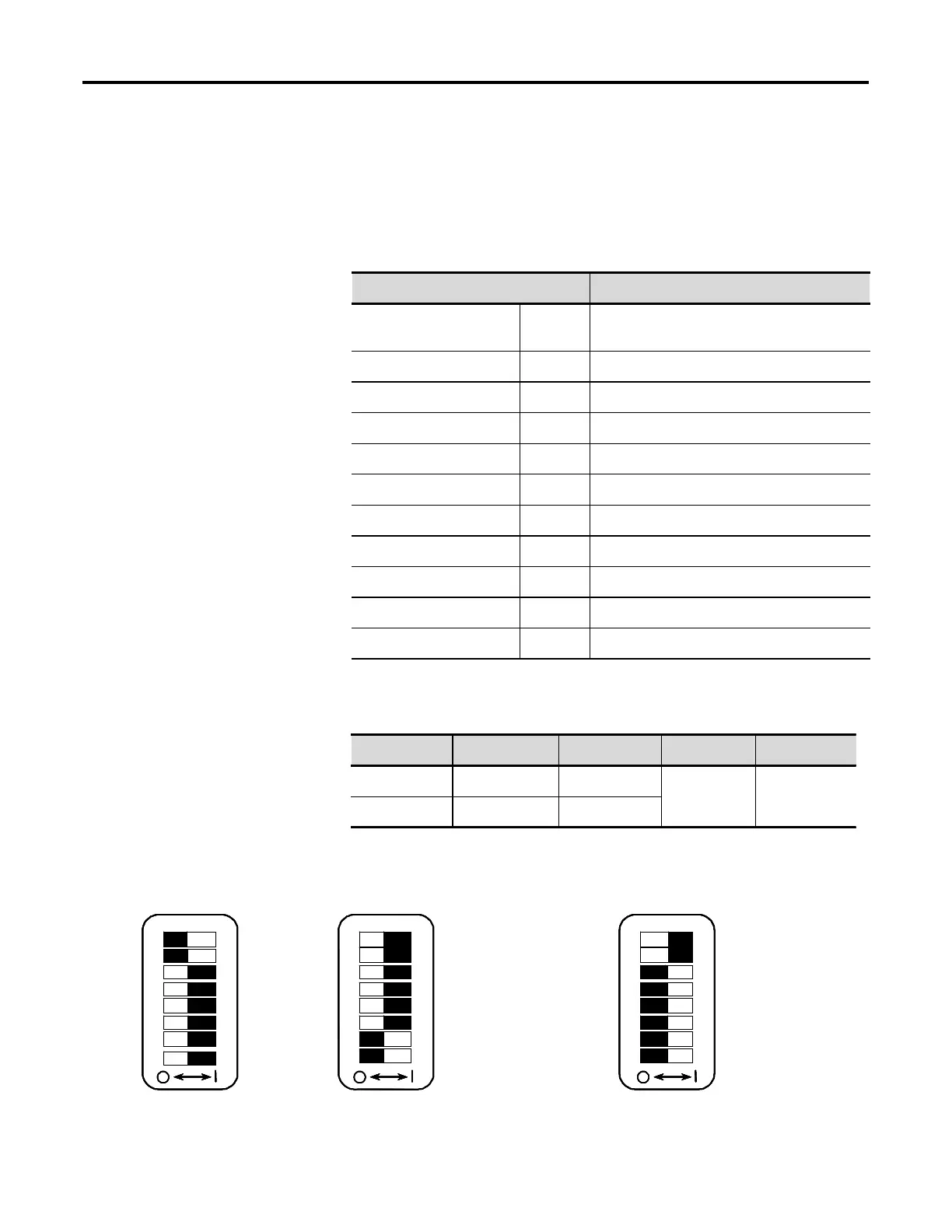

1203-GD1 Communication Module Switch Settings
The following information is provided to explain the required 1203-GD1
communication module switch settings for this example. Refer to the
1203-GD1 manuals for further details related to the switch settings.
Example Information
Description Switch Setting
SMC Rack Address 0
SW1: Switches 1 & 2 (Not used);
Switches 3-8 (On)
Starting Group Address 0 SW2: Switches 1 & 2 (On)
Last Rack Yes SW2: Switch 3 (On)
Hold Last State Yes Sw2: Switch 4 (On)
Fault on Comm Loss Yes SW2: Switch 5 (On)
Fault Controller Yes SW2: Switch 6 (On)
R I/O Baud Rate 57 k SW2: Switches 7 & 8 (Off)
Block Transfer Yes SW3: Switch 1 (On)
Logic Cmd/Status Yes SW3: Switch 2 (On)
Reference/Feedback No SW3: Switch 3 (Off)
Datalinks No X SW3: Switches 4-8 (Off)
X The SMC Dialog Plus controller does not support Datalinks.
SLC Image Table Map
SLC Word Output Image Input Image Rack Size Start at Group
0 Block Transfer Block Transfer 1/4 0 X
1 Logic Command Logic Status
X Set SW2, Switches 1 and 2 to "On".
Switch Settings
S
W
1
8
7
6
5
4
3
2
1
Not Used
Not Used
On
On
On
On
On
On
S
W
2
8
7
6
5
4
3
2
1
Starting Module Group (0n)
Starting Module Group (0n)
Last Rack Setting (On)
Hold Last State (On)
Fault on Comm Loss (On)
Fault Controller (On)
RIO Baud Rate (57 K)
RIO Baud Rate (57 K)
S
W
3
8
7
6
5
4
3
2
1
Block Transfer (On)
Logic Cmd/Sts (On)
Reference/Fdbk (Off)
Datalink A (Off)
Datalink B (Off)
Datalink C (Off)
Datalink D (Off)
Truncate Last Datalink (Off)
S
W
1
8
7
6
5
4
3
2
1
Not Used
Not Used
On
On
On
On
On
On
S
W
1
8
7
6
5
4
3
2
1
Not Used
Not Used
On
On
On
On
On
On
S
W
2
8
7
6
5
4
3
2
1
Starting Module Group (0n)
Starting Module Group (0n)
Last Rack Setting (On)
Hold Last State (On)
Fault on Comm Loss (On)
Fault Controller (On)
RIO Baud Rate (57 K)
RIO Baud Rate (57 K)
S
W
2
8
7
6
5
4
3
2
1
Starting Module Group (0n)
Starting Module Group (0n)
Last Rack Setting (On)
Hold Last State (On)
Fault on Comm Loss (On)
Fault Controller (On)
RIO Baud Rate (57 K)
RIO Baud Rate (57 K)
S
W
3
8
7
6
5
4
3
2
1
Block Transfer (On)
Logic Cmd/Sts (On)
Reference/Fdbk (Off)
Datalink A (Off)
Datalink B (Off)
Datalink C (Off)
Datalink D (Off)
Truncate Last Datalink (Off)
S
W
3
8
7
6
5
4
3
2
1
Block Transfer (On)
Logic Cmd/Sts (On)
Reference/Fdbk (Off)
Datalink A (Off)
Datalink B (Off)
Datalink C (Off)
Datalink D (Off)
Truncate Last Datalink (Off)
SW2:
