10-30 Troubleshooting
1560D-UM051D-EN-P – February 2005

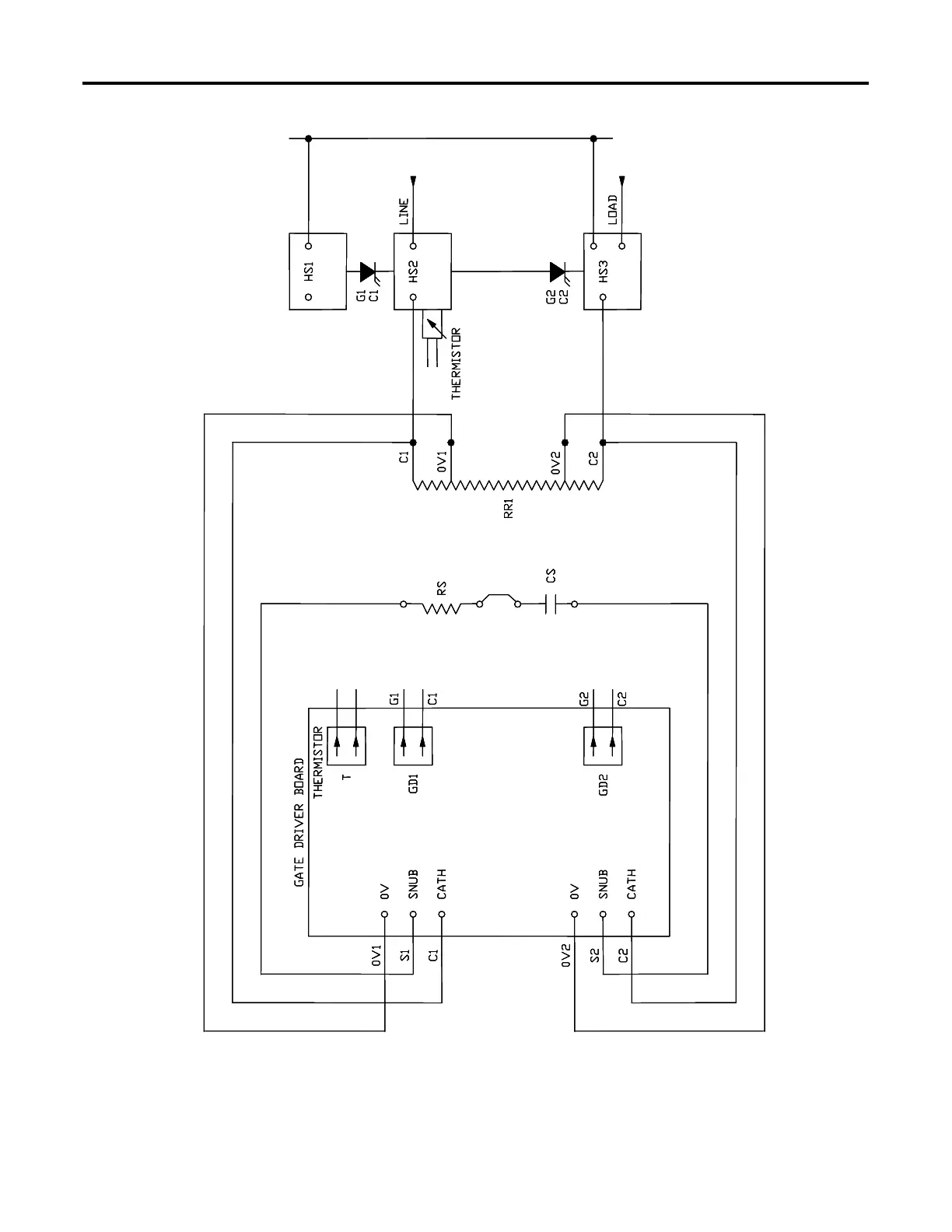

Figure 10.20 – 1500/2400 Volt Module Wiring (180/360 A)
(Without Optional Pump Control or Soft Stop)
RR1: Sharing Resistor
RS1: Snubber Resistor
CS1: Snubber Capacitor
HS1 – HS3: Heatsink
G1 – G2: Gate Lead (White)
C1 – C2: Cathode Lead (Red)
Important: 0.75 mm2 (#18 AWG) wire rated for min. 90°C (194°F) is suitable for all wiring.
Recommended wire insulation is 25 kV DC for all wires shown.
RR1: Sharing Resistor
RS1: Snubber Resistor
CS1: Snubber Capacitor
HS1 – HS3: Heatsink
G1 – G2: Gate Lead (White)
C1 – C2: Cathode Lead (Red)
Important: 0.75 mm2 (#18 AWG) wire rated for min. 90°C (194°F) is suitable for all wiring.
Recommended wire insulation is 25 kV DC for all wires shown.
To Next Page
