Troubleshooting 10-31
1560D-UM051D-EN-P – February 2005

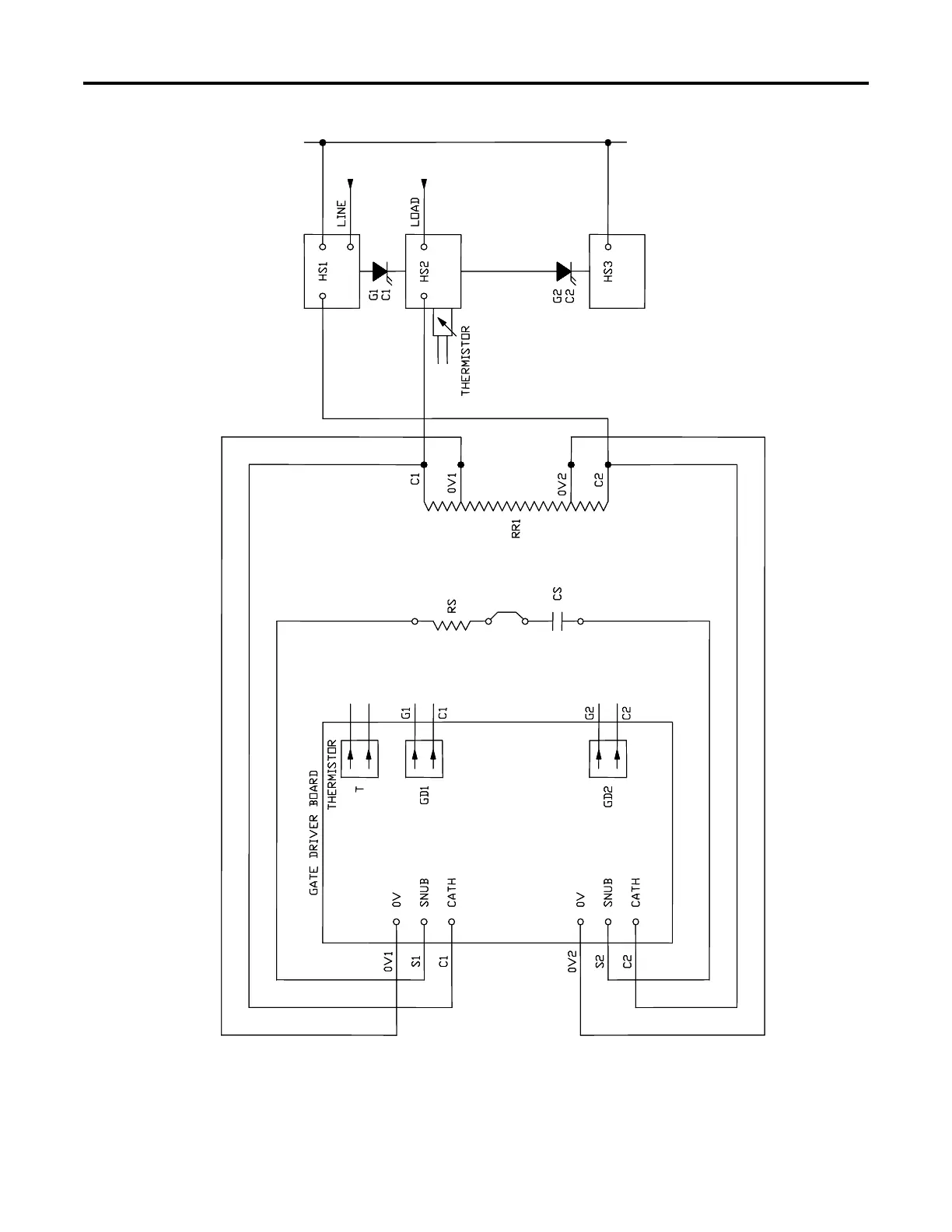

Figure 10.21 – 1500/2400 Volt Module Wiring (600A)
(Without Optional Pump Control or Soft Stop)
