4-2 Programming
1560D-UM051D-EN-P – February 2005
Programming Menu (cont.)
(cont.)
ESC
SEL
ESC
ESC
ESC
SEL
ESC
ESC

Y
Y
\
X The SMC Dialog Plus controller does not support EEPROM, Link, Process or Start-up modes.
Y Steps back one level.
Z Control Status and Search are only available when using a Series B Bulletin 1201 human interface module.
[ Password protected.
\ English is currently the only available language.

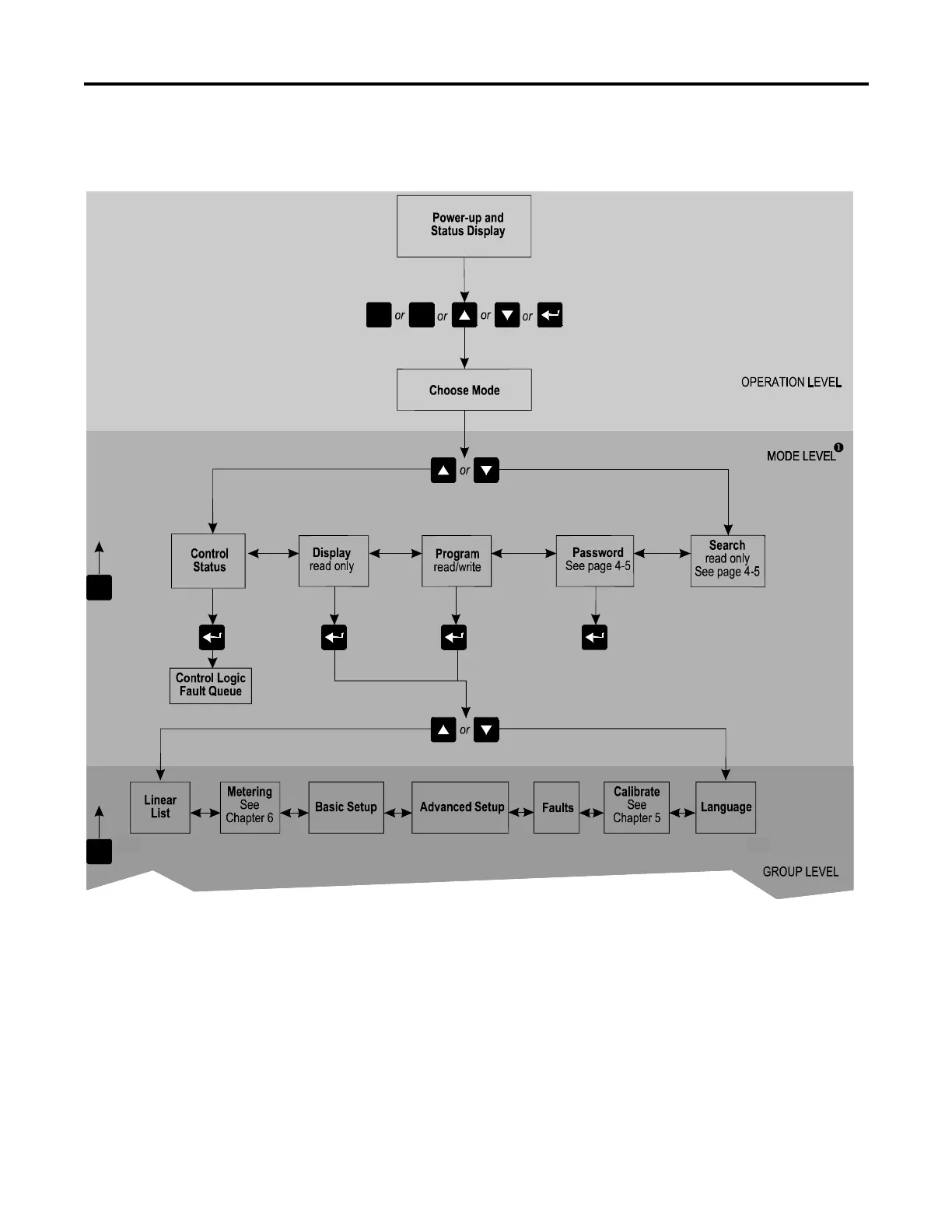

Figure 4.1 – Menu Structure Hierarchy
