Programming 4-3
1560D-UM051D-EN-P – February 2005
ESC
ESC
Linear
List
See page 4-4
Metering
See
Chapter 6
Basic
Setup
Advanced
Setup
Faults
Language
Calibrate
See
Chapter 5
ESCESC
ESCESC
Linear
List
See page 4-4
Metering
See
Chapter 6
Basic
Setup
Advanced
Setup
Faults
Language
Calibrate
See
Chapter 5
X Steps back one level.
Y English is currently the only language available.
Z For further information on parameters, see Appendix A.
[ For further information on parameter management, see pages 4-6 and 4-7.

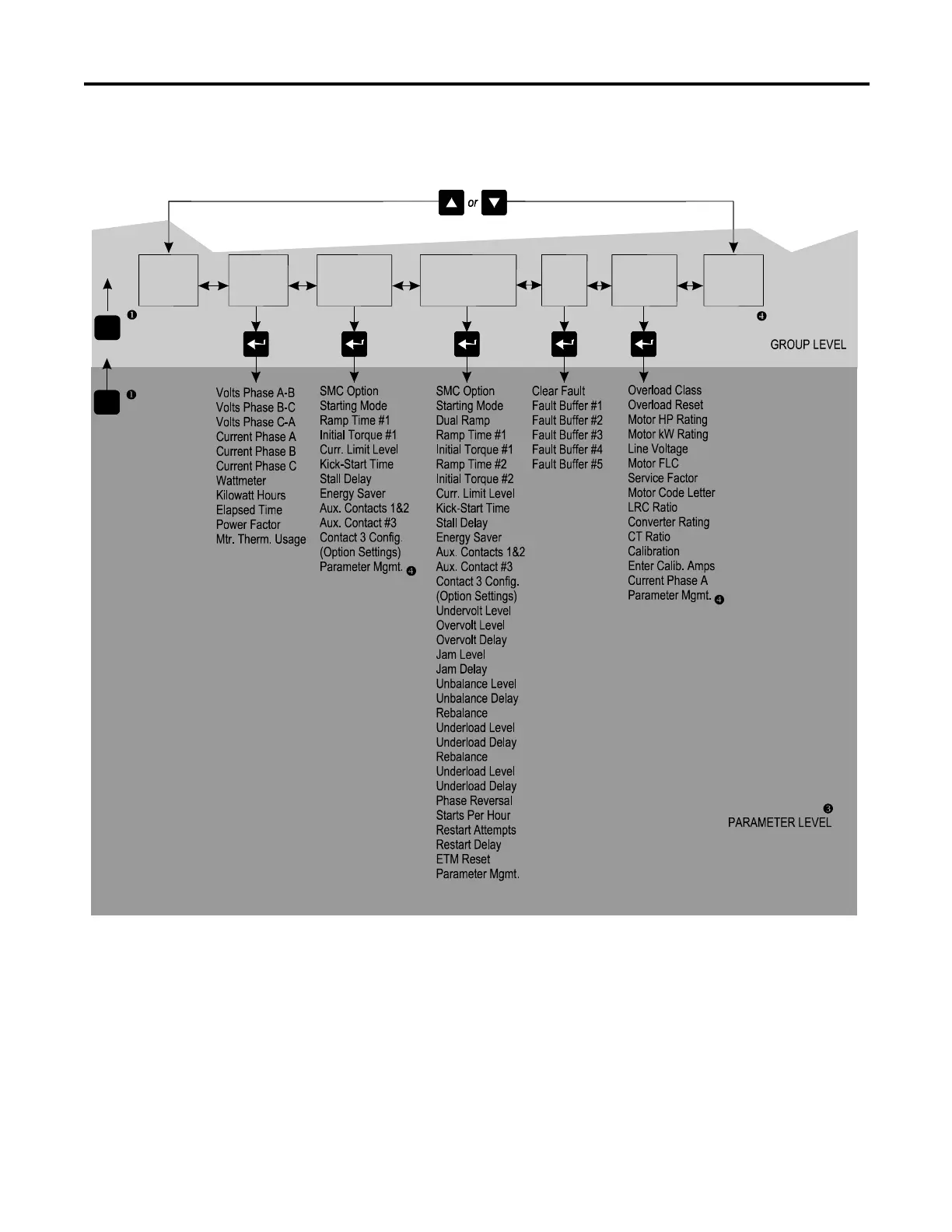

Figure 4.1 – Menu Structure Hierarchy (cont.)
