Rockwell Automation Allen-Bradley Kinetix 7000 User Manual

Rockwell Automation Publication 2099-UM001G-EN-P - December 2022 101
Connect the Kinetix 7000 Drive System Chapter 4
Connect the cable from transmit on the Logix module to receive on the Kinetix
7000 drive, then transmit to receive (drive to drive), and from transmit on the last
drive back to receive on the Logix module.

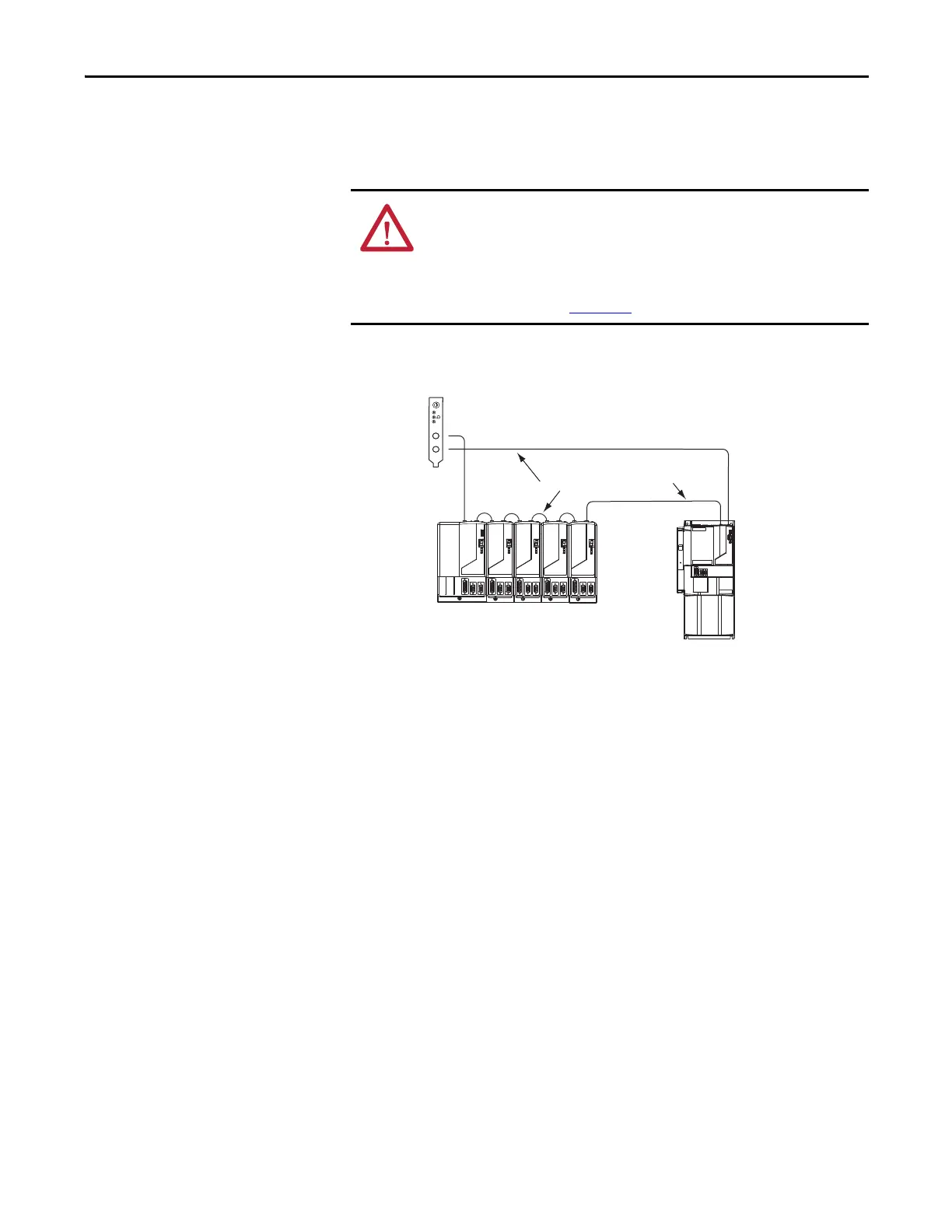

Figure 61 - Fiber-optic Cable Connections to a SoftLogix Module
ATTENTION: To avoid damage to the Sercos Rx and Tx connectors use only
finger-tight torque when attaching the fiber-optic cables to the Kinetix 7000
drive. Do not use a wrench or any other mechanical assistance.
For more information, see the Fiber-optic Cable Installation and Handling
Instructions, publication 2090-IN010
.
0
8
4
C
6
7
5
3
2
1
9
A
B
E
D
F
TX
RX
OK
CP
Receive
Tran sm it
SoftLogix
1784-PM16SE Sercos
interface PCI Card
Kinetix 6000 System
Receive
Trans mit
Sercos Fiber-optic Ring
Kinetix 7000 Drive
Trans mit
Receive
