Rockwell Automation Publication 2099-UM001G-EN-P - December 2022 107
Configure and Start the Kinetix 7000 Drive System Chapter 5
5. Set the Sercos optical power level to High using DIP switch 1.

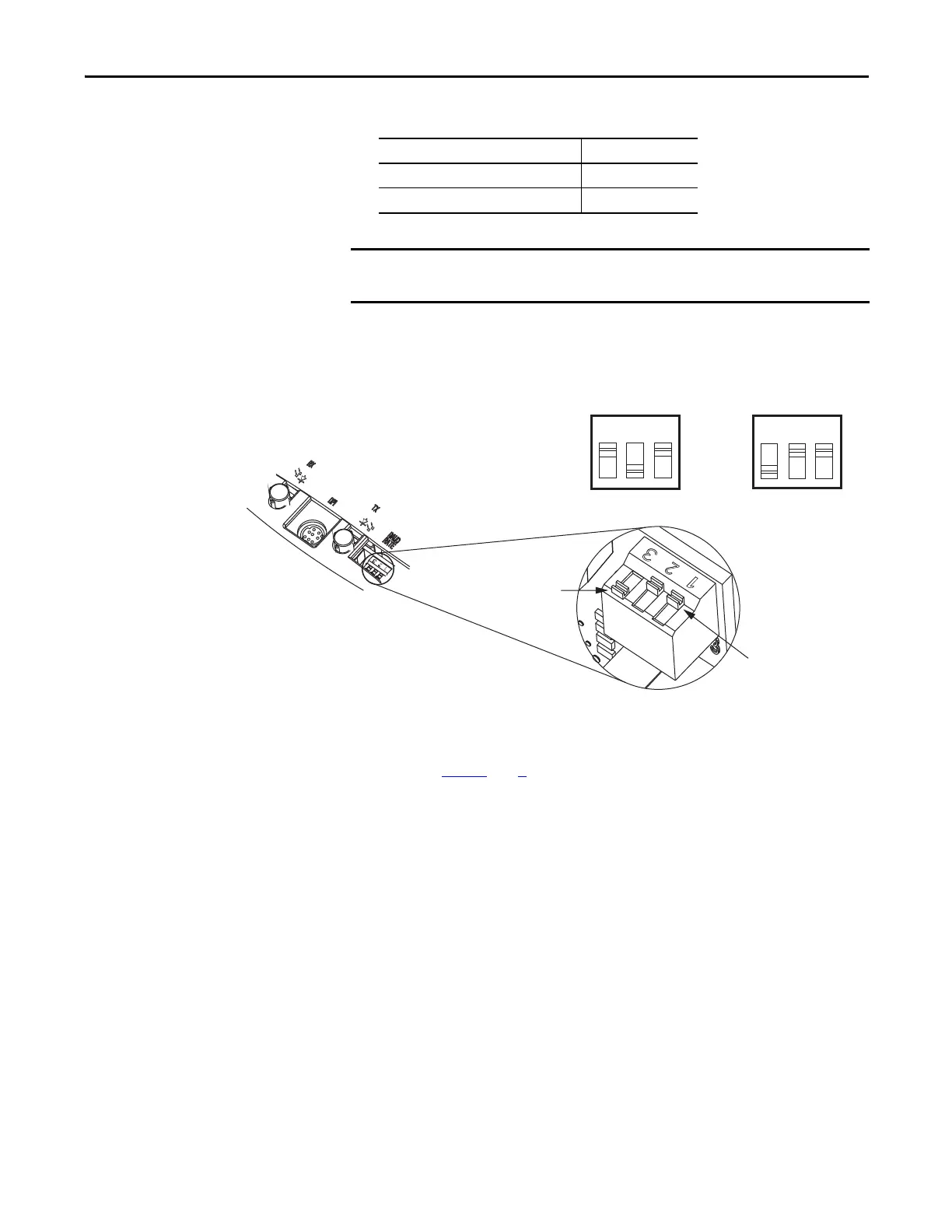

Figure 65 - Sercos DIP Switch Settings and Locations
6. Repeat Steps 4 and 5 for each Kinetix 7000 drive.
For This Optical Power Level Set Switch 1
Low OFF
High ON
IMPORTANT
All drives on the Sercos ring must have the same communication rate and
power setting.
1 2 3
1 2 3
DIP Switches Set for
4 Mbps Applications
(high-power setting)
DIP Switches Set for
8 Mbps Applications
(high-power setting)
ON
OFF
Sercos Baud Rate
and Optical Power Switches
Sercos switch and connectors
(typical orientation around DPI™ connector)
ON
OFF
Switch in ON Position
Switch in OFF Position
Note: 8 Mbps setting shown.
