Chapter 3 Kinetix 7000 Connector Data

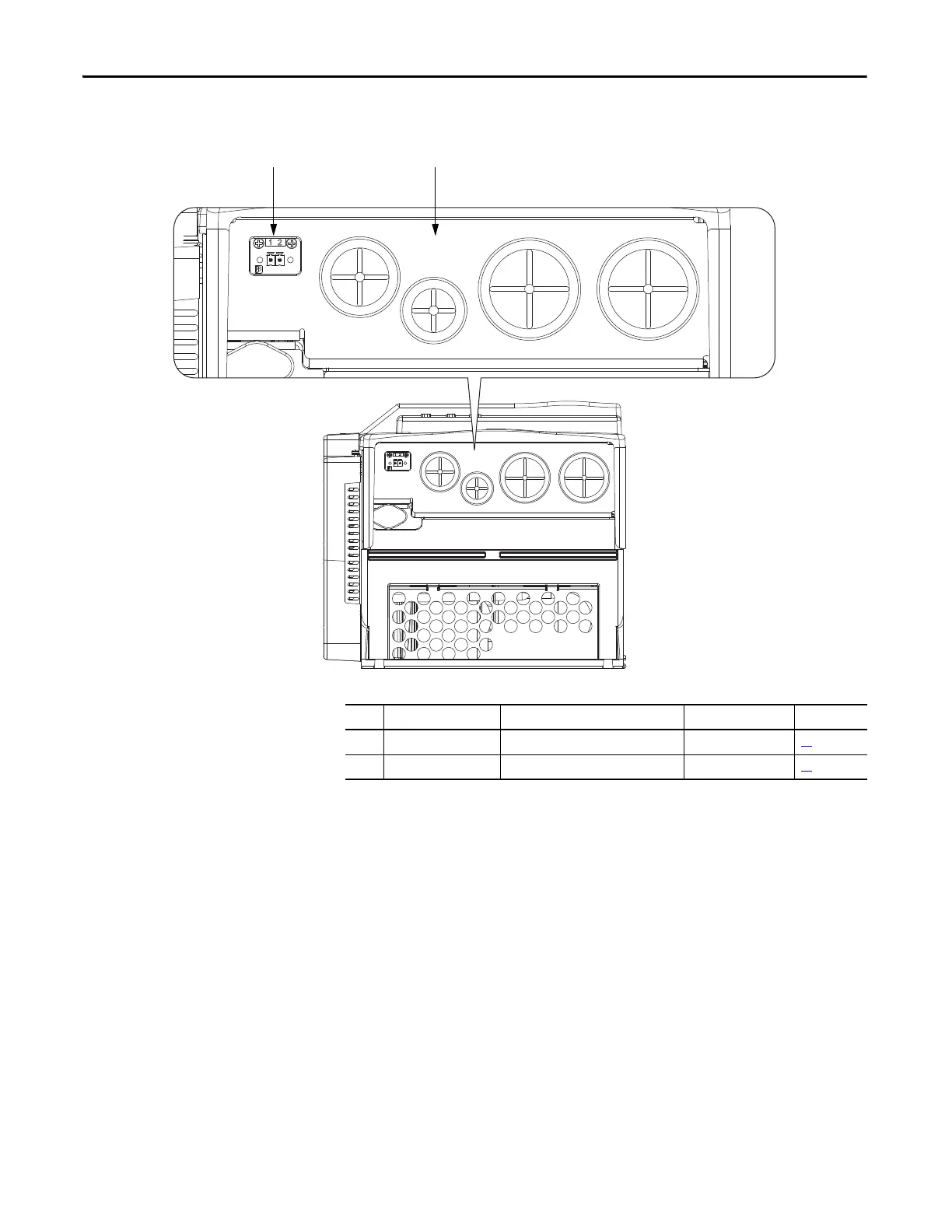

Figure 19 - Kinetix 7000 Bottom Panel Connectors
2099-BM06-S and 2099-BM07-S shown
1
Bottom View
2
Item Designator/Label Description Connector See Page
1 CP Control Power Terminal Block 2-position terminal 49
2 PTB Power Terminal Block Access Terminal block 49
