Rockwell Automation Publication 2099-UM001G-EN-P - December 2022 99
Connect the Kinetix 7000 Drive System Chapter 4

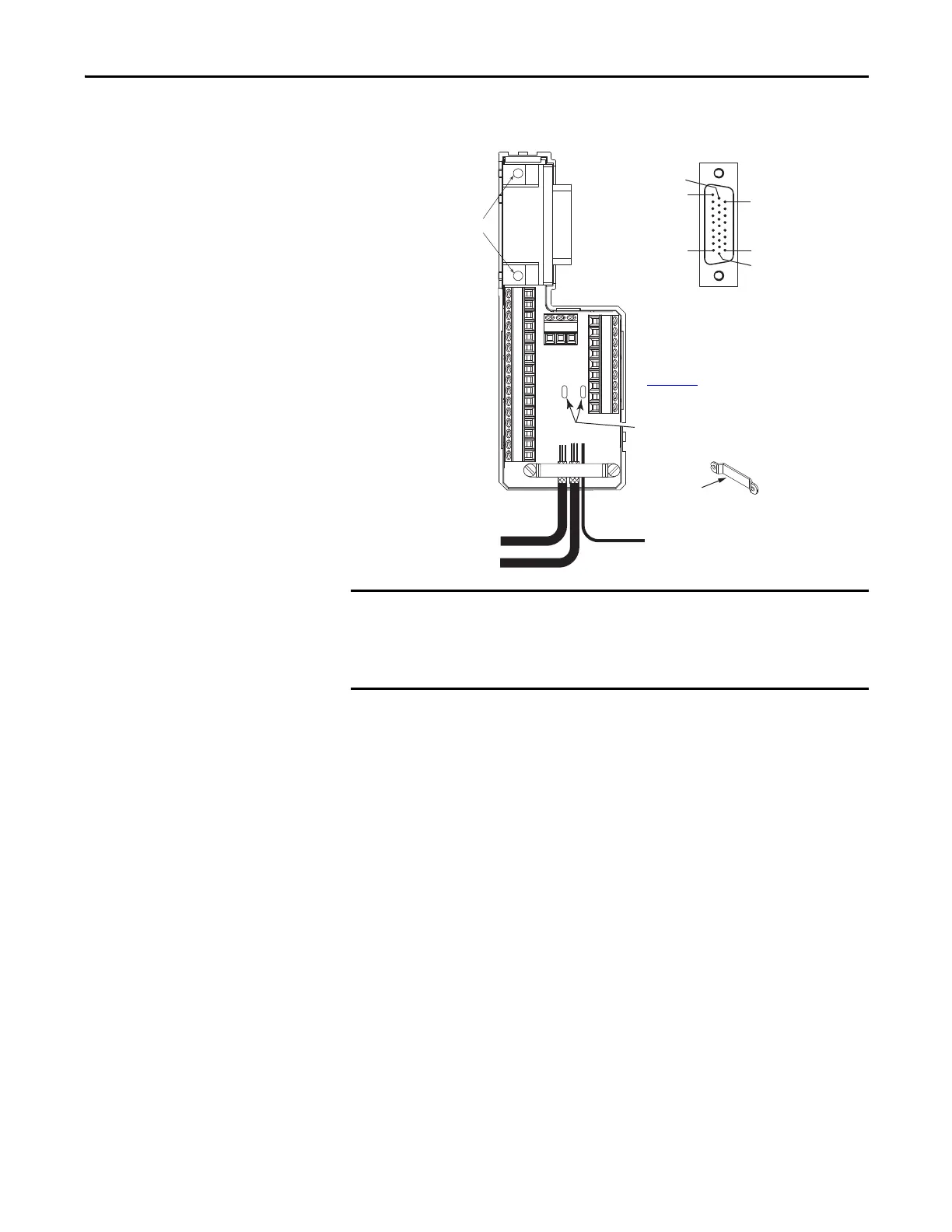

Figure 59 - Wiring (26-pin) I/O Cable Connections
2090-K6CK-D26M Connector Kit
Pin 18
Pin 26
Pin 1
Pin 9
Pin 10
Pin 19
13
14
1516
17
181920
2122
23
S242526S
10
11
12
1
2
34
5
678
9
26-pin (male) I/O
Low-profile Connector
Discrete I/O Wire
Tie Wrap Slot
Three Conductor
I/O Cable(s)
Turn Clamp Over to
Hold Small Wires
Secure
Mounting
Screws
See the Low Profile Connector Kit Installation
Instructions, Publication
2094-IN007
, for Connector Kit Specifications.
2090-K6CK-D26M
Low-profile Connector Kit
The purpose of the cable shield clamp is to provide a proper ground and
improve system performance, not stress relief.
Clamping the exposed braid under the shield clamp is critical. Turn the
clamp over, if necessary, to be sure of a proper ground.
