114 Rockwell Automation Publication 1734-UM013J-EN-P - July 2014

Chapter 6 Configure the Module for a SmartGuard Controller

3. Click Apply and OK to return to the main RSNetWorx for DeviceNet

dialog box.

Configure Safety Analog Inputs

Follow these steps to configure a 1734-IE4S module.

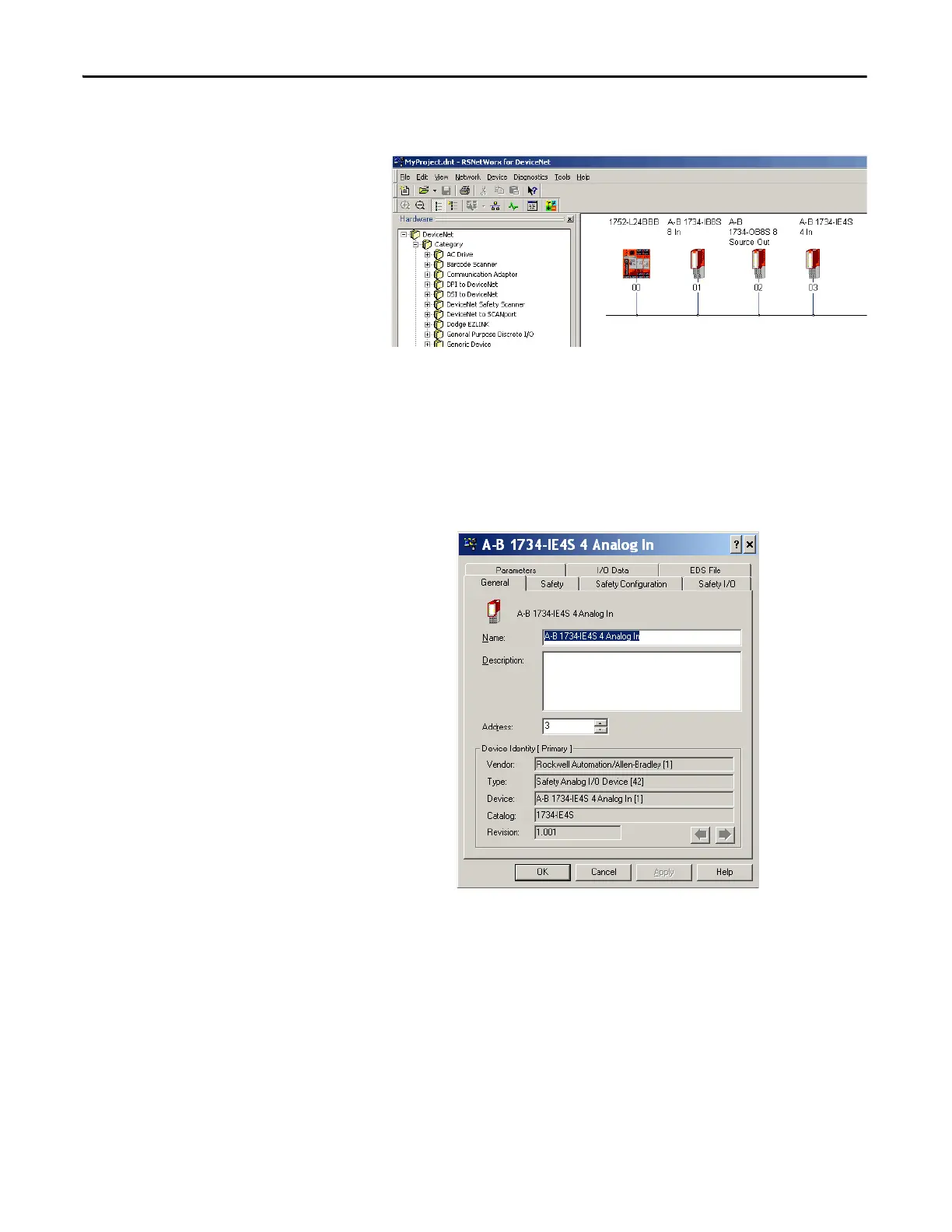

1. Double-click the POINT Guard I/O analog module to open the

Properties dialog box.

2. Click the Safety Configuration tab.
