184 Rockwell Automation Publication 1734-UM013J-EN-P - July 2014

Appendix D Safety Data

Series B Safety Data

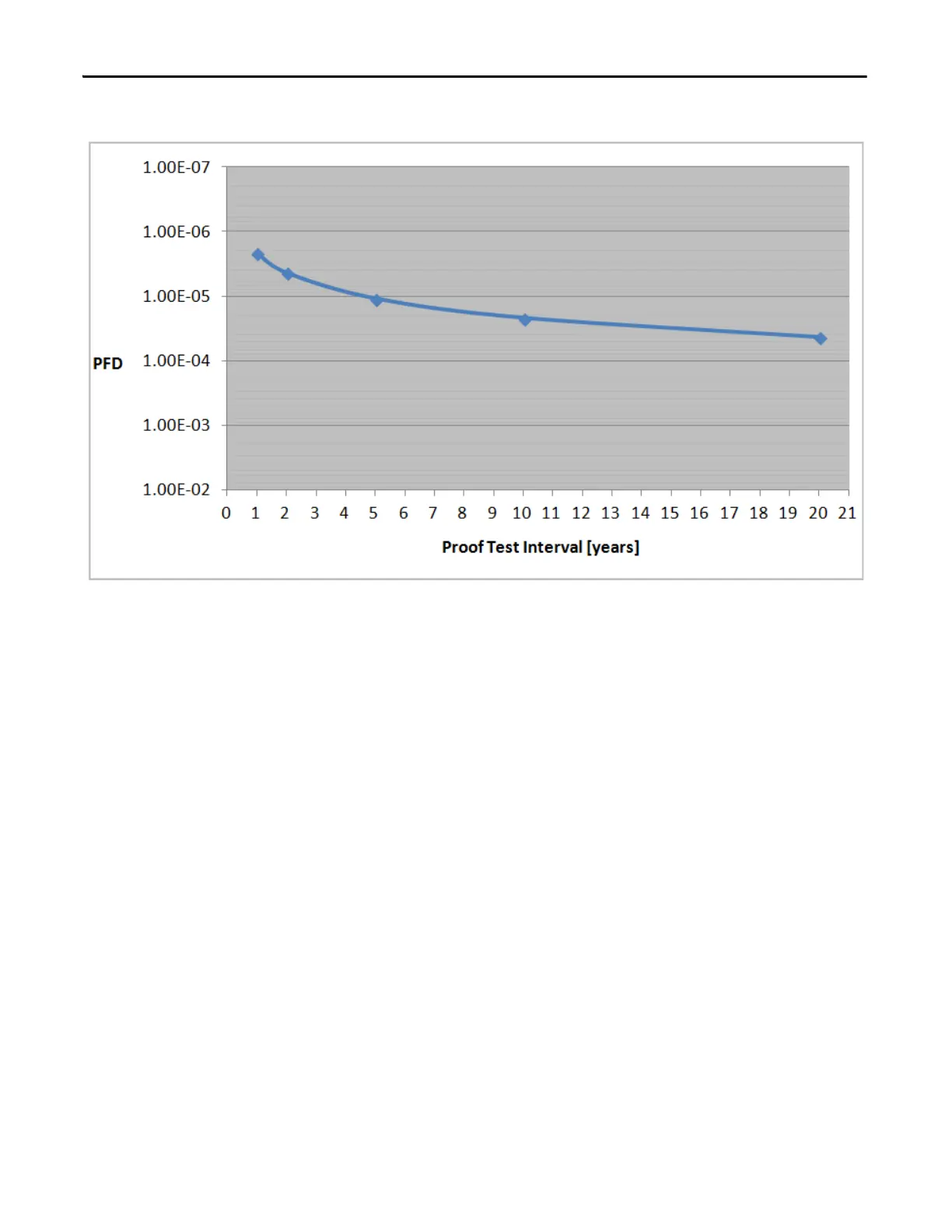

Figure 63 - PFD vs Proof Test Interval 1734-IB8S Series B
