Chapter 7 Configuring Safety Connections between a GuardLogix Controller and POINT Guard I/O Modules on a DeviceNet Network

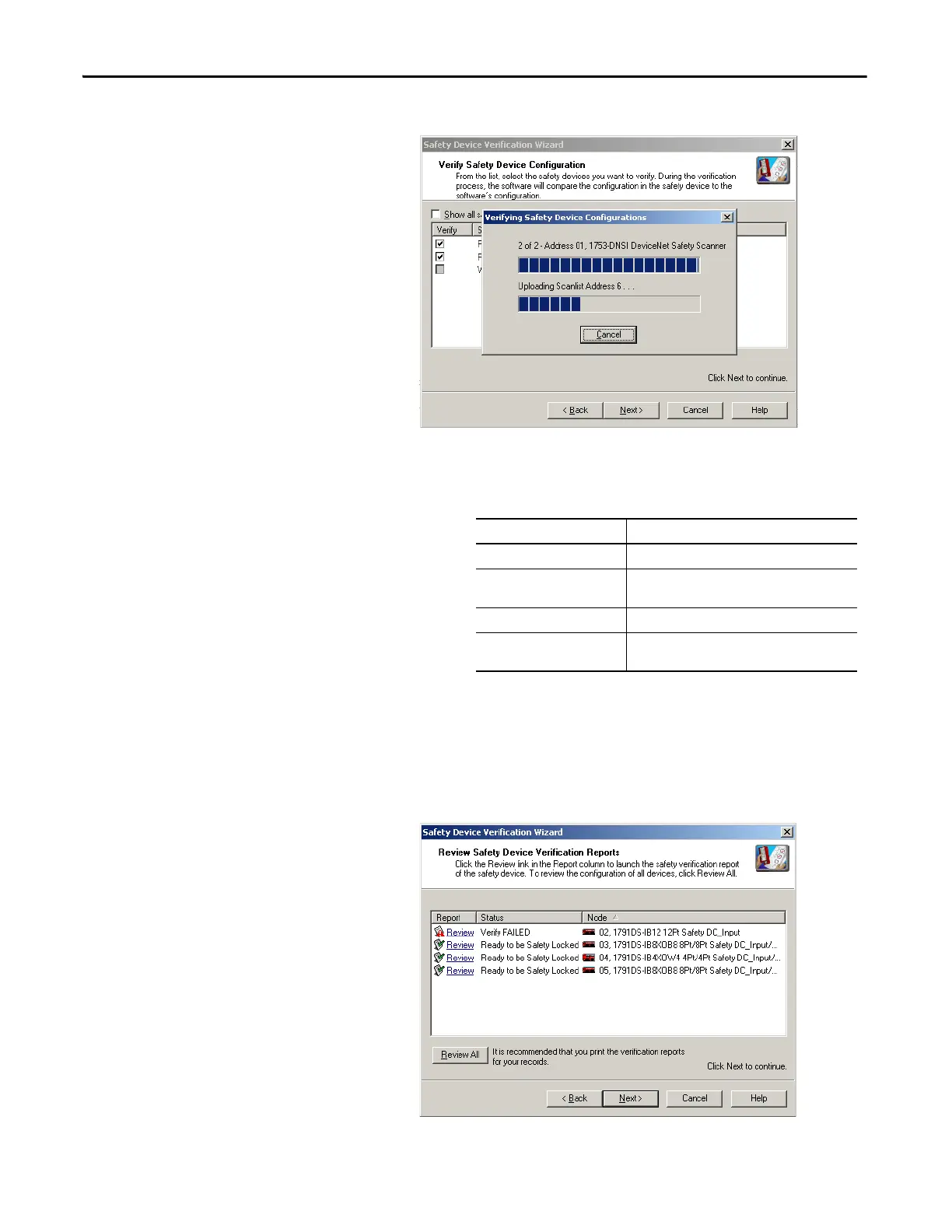

Click Next to begin the upload and compare process.
Review the Safety Device Verification Reports
The Review page displays safety devices with status of either Verify FAILED or
Ready to be Safety Locked.
If you click Next without selecting a device to verify, the wizard checks
whether any devices were verified or are ready to be locked in this
execution of the wizard.
If Then the wizard displays
Devices were verified the Review dialog box listing those devices.
Devices are ready to be safety-
locked
the Lock dialog box listing those devices.
No devices were verified the Finish dialog box.
No devices are ready to be
safety-locked
the Finish dialog box.
