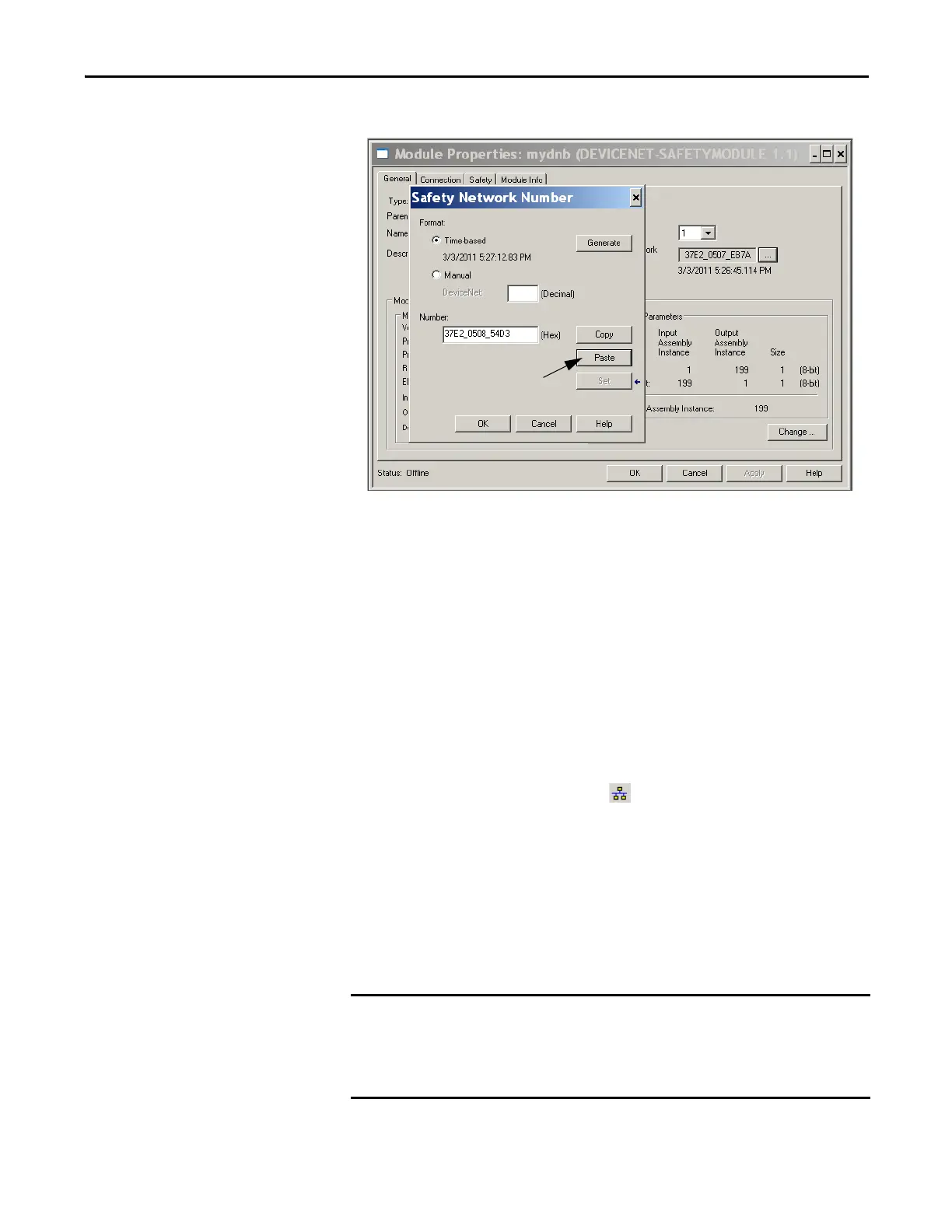

8. Click Paste.
Download the DeviceNet
Network Configuration
Before you download, you must go online to the DeviceNet network by using
RSNetWorx for DeviceNet software. Your computer and the devices you wish to
communicate with must be connected to the DeviceNet network.
When you go online to a DeviceNet network, RSNetWorx for DeviceNet
software browses the network one time and shows you the devices on the
network. Going online does not upload (read) or download (change) the
parameters of any of the devices.
Follow these steps to download the DeviceNet network configuration.
1. Go online by clicking the online icon.
2. Browse to the DeviceNet network and click OK at the prompt.
3. Download your configuration to the network by right-clicking the device
and choosing Download to Device.
4. Confirm your intent to download by clicking Yes.
Verify Your DeviceNet Safety
Configuration
Before running the Safety Device Verification Wizard, you should browse and
upload your network and test the safety devices and all of their safety
functions on your network to verify that they are operating properly. You must
fully test your application prior to safety-locking your devices.
