Replacing POINTGuard I/O Modules Chapter 8

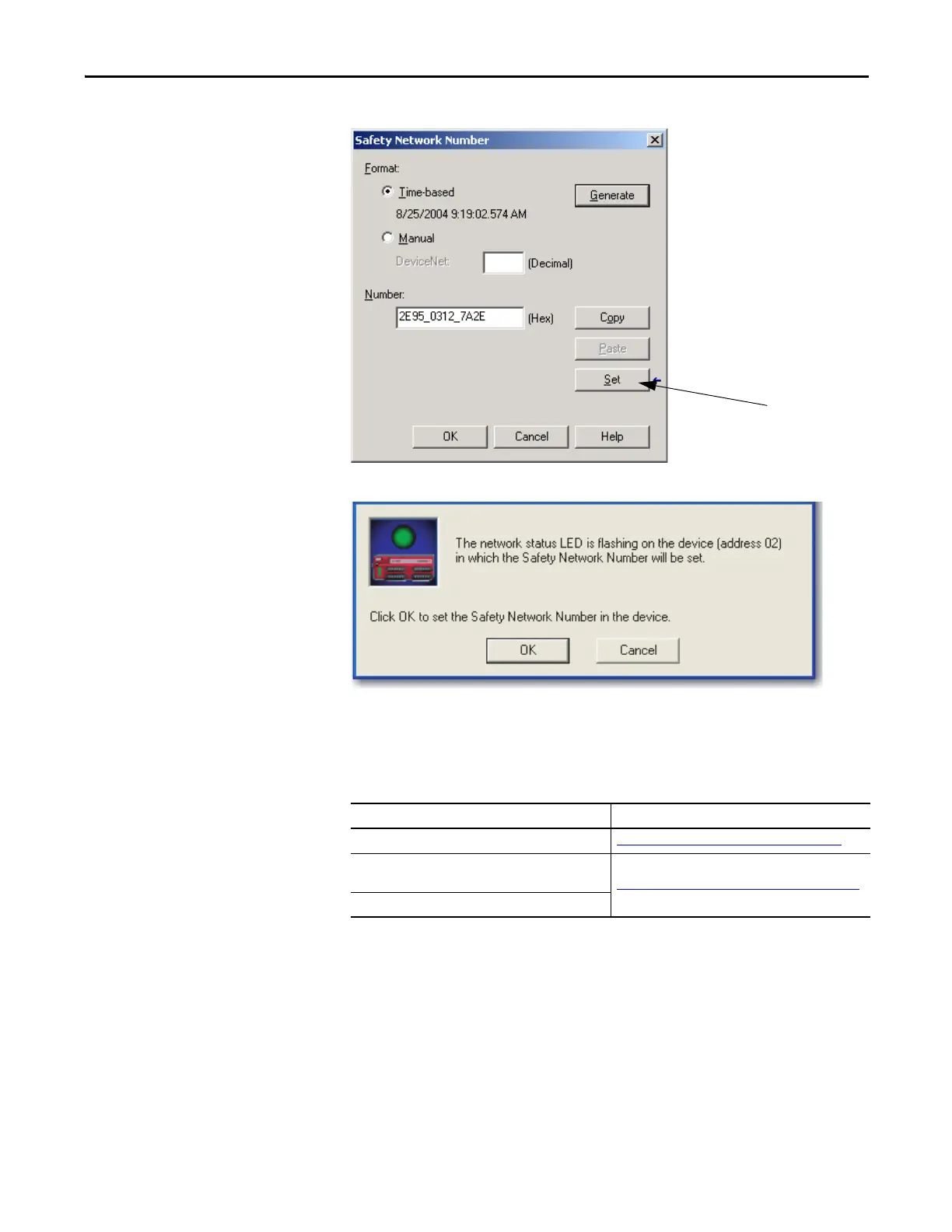

Figure 45 - Setting the SNN with a GuardLogix Controller
Figure 46 - Setting the SNN with a SmartGuard Controller
Resetting a Module to
Out-of-box Condition
If a POINT Guard I/O module was used previously, clear the existing
configuration before installing it on a safety network.
By Using the Logix Designer Application
When the Logix Designer application is online, the Safety tab of the Module
Properties dialog box displays the current configuration ownership. When the
opened project owns the configuration, Local is displayed. When a second device
owns the configuration, Remote is displayed, along with the safety network
number (SNN), and node address or slot number of the configuration owner.
Communication error is displayed if the module read fails.
When using POINT Guard I/O with a See
GuardLogix controller on an EtherNet/IP network By Using the Logix Designer Application
on page 139
GuardLogix controller with 1734-PDN module on a
DeviceNet network
By Using RSNetWorx for DeviceNet Software
on page 140
SmartGuard controller on a DeviceNet network
