126 Rockwell Automation Publication 1734-UM013J-EN-P - July 2014

Chapter 7 Configuring Safety Connections between a GuardLogix Controller and POINT Guard I/O Modules on a DeviceNet Network

Add the POINT Guard I/O

Module to the Controller

Project

Follow these steps to connect to the controller.

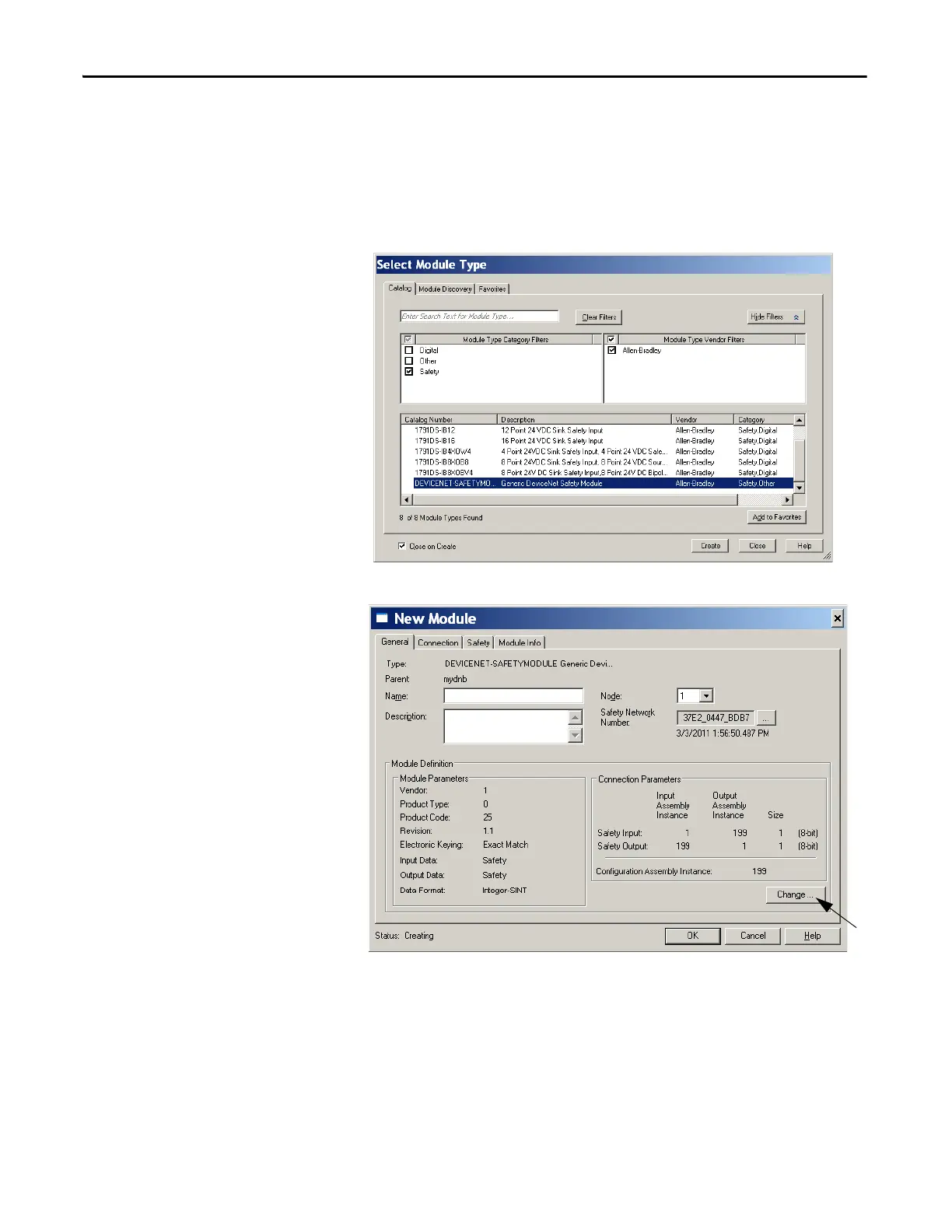

1. In the Logix Designer application, right-click the DeviceNet network and

choose New Module.

2. In the Select Module Type dialog box, check Safety and Allen-Bradley.

3. Select the Generic DeviceNet Safety Module and click Create.

4. On the New Module dialog box, click Change.
