Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 127

Configuring Safety Connections between a GuardLogix Controller and POINT Guard I/O Modules on a DeviceNet Network Chapter 7

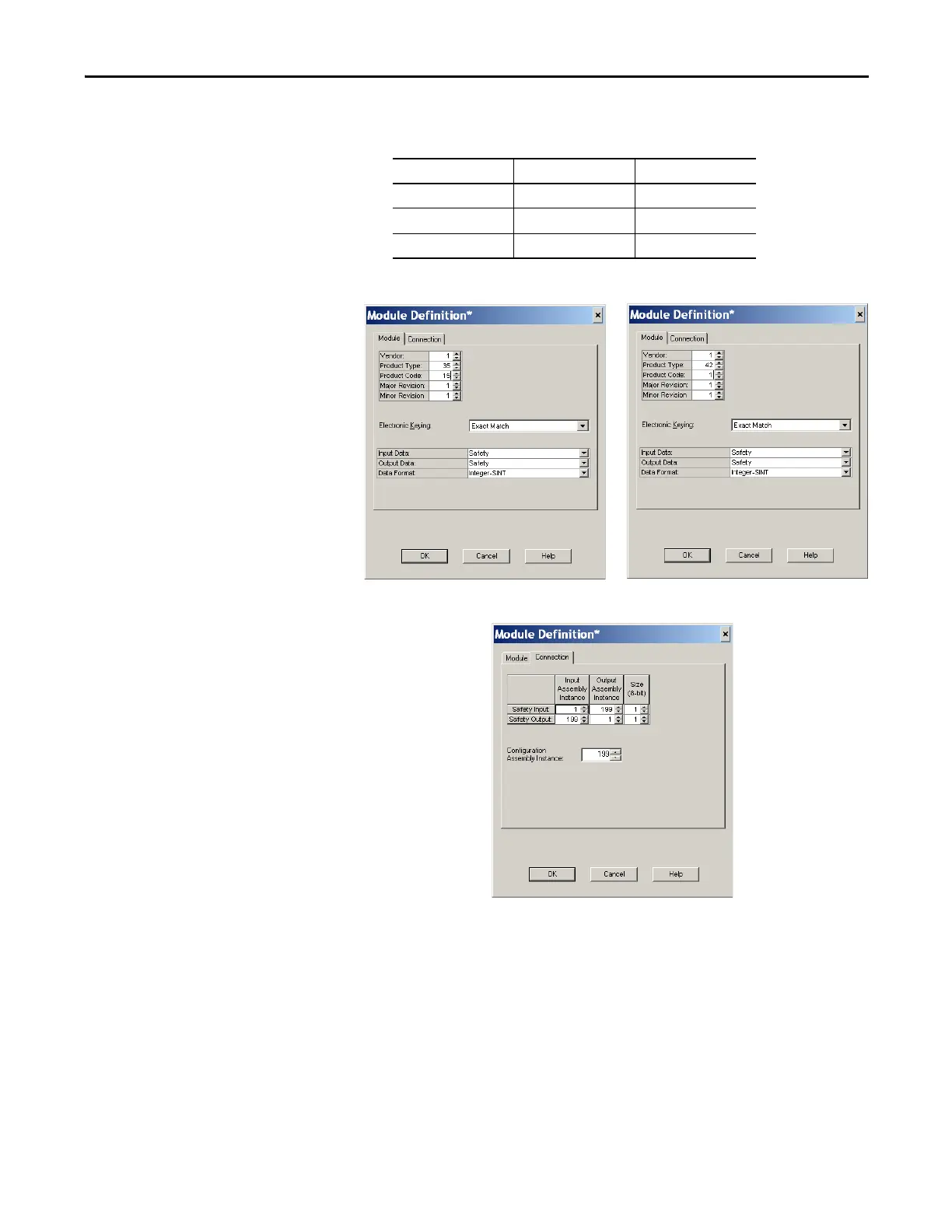

5. On the Module Definition dialog box, set these parameters for your

module.

6. Click the Connection tab.

7. Set the Configuration Assembly Instance to 864 for all POINT Guard

modules.

Cat. No. Product Type Product Code

1734-IB8S 35 15

1734-OB8S 35 16

1734-IE4S 42 1

1734-IB8S Module 1734-IE4S Module
